Description

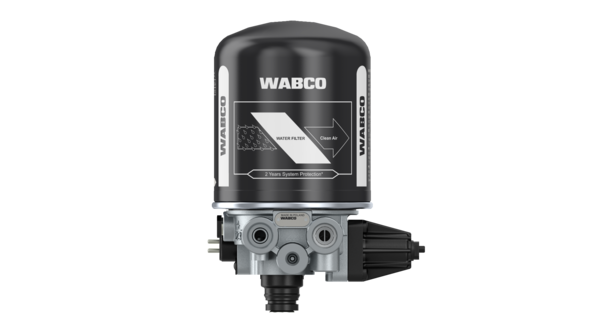

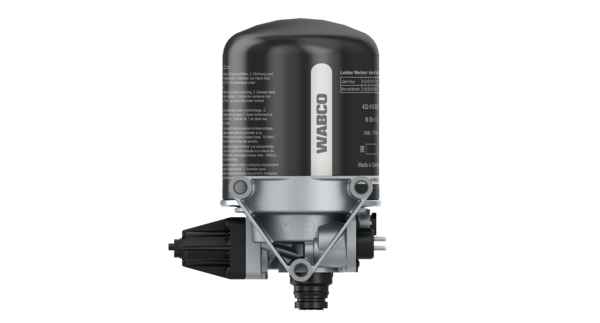

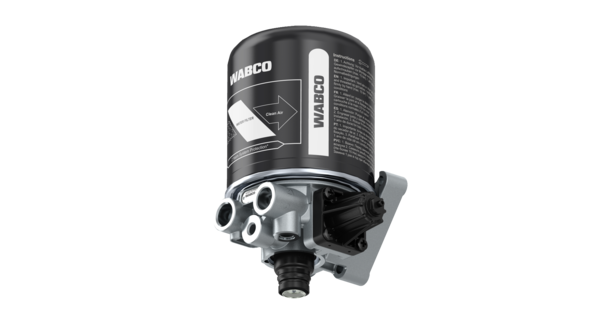

Air Dryer (Single Cannister)
Part Number: 4324101270
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.412 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.1 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Bayonet |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 12 V |
| GTIN | 04057875171294 |
| Size (mm x mm x mm) | 258 x 189 x 152 |
| UPC | 193133253709 |
| Weight (kg) | 3.623 |
| Weight (lb) | 7.9873 |
