Description

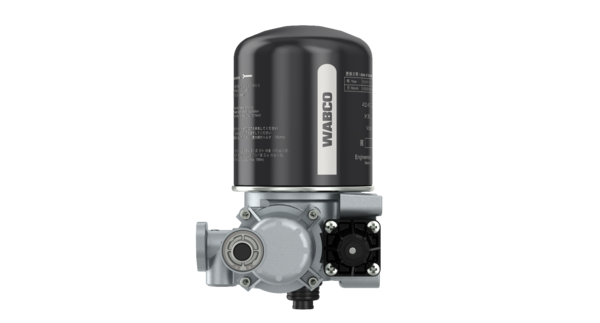

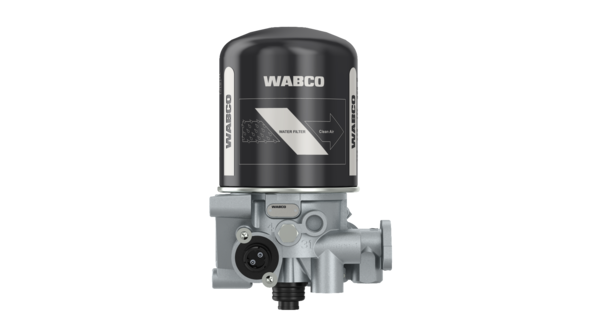

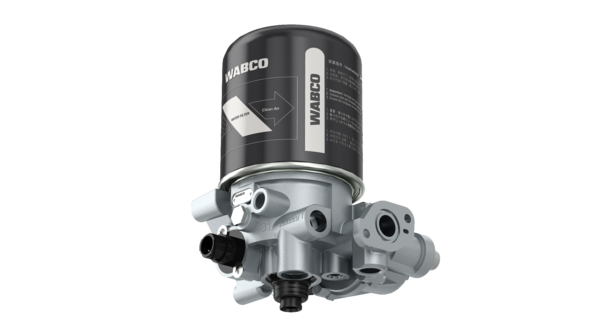

Air Dryer (Single Cannister)
Part Number: 4324150510
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Back flow | 0.5 bar |
| Calculated Volume (dm³) | 10.5934 |
| Cartridge type | Desiccant Cartrige |
| Cooling | Compressed air |
| Cut-out pressure | 9.5 bar |
| Exhaust | No (4324070150 retrofittable) |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 10.0 bar |
| Mounting | 30 |
| Opening pressure | 10.00 bar |
| Operational range | 0.8 bar |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M22 x 1.5 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 015 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875172246 |
| Size (mm x mm x mm) | 285 x 210 x 177 |
| UPC | 193133256625 |
| Weight (kg) | 5 |
| Weight (lb) | 11.023 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 59551 8C501 |
