Description

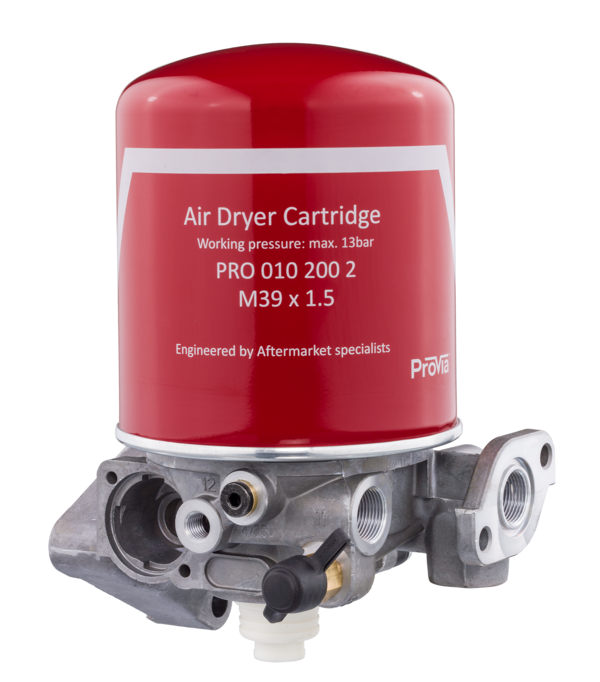

Air Dryer
Part Number: PRO1220070
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 13.35 |
| Cut-out pressure | 10±0.2 bar |
| Heater | PRO 410 920 2 |
| Important information | Compatible with Provia heater only. |
| Operational range | 1.0+0.5 bar |
| Ports | 1: M22 x 1.5; 21: M22 x 1.5 (VOSS); 22: M16 × 1.5 (VOSS); 3: silencer |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Wear measurement | Mechanical wear indicator |
| GTIN | 04057877006129 |
| Size (mm x mm x mm) | 280 x 210 x 227 |
| UPC | 193134004942 |
| Weight (kg) | 3.79 |
| Weight (lb) | 8.356 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517969 |
| MAN | 81521026098 |
| MAN | 81521026100 |
| MAN | 81521026106 |
| NEOPLAN | 81521026098 |
