Description

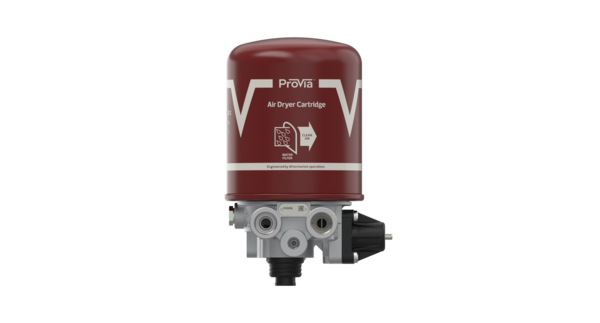

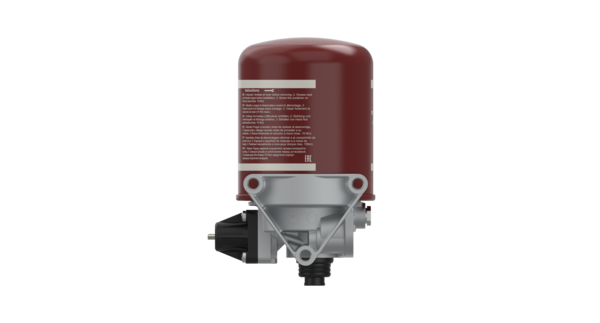

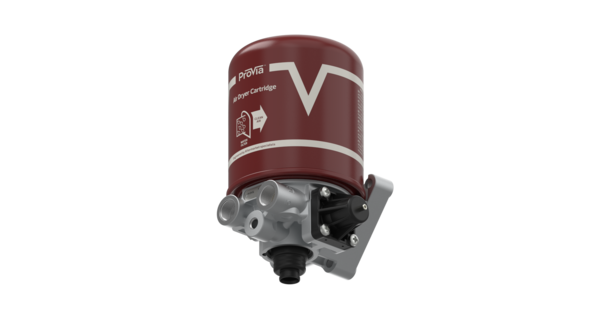

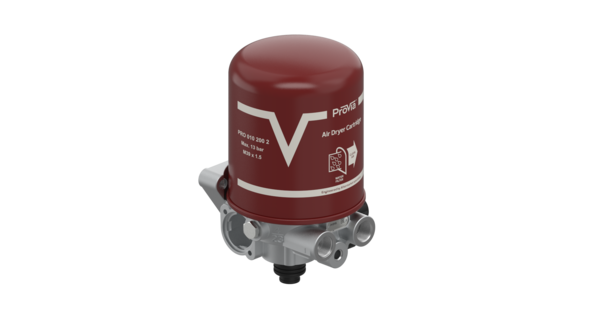

Air Dryer
Part Number: PRO1220060
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 12.35 |
| Cut-out pressure | 9±0.3 bar |
| Heater | PRO 410 920 2 |
| Important information | Compatible with Provia heater only. |
| Operational range | 1.3 ±0.4 bar |
| Ports | 1, 21: M22 x 1.5; 22: M12×1.5; 3: silencer |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Wear measurement | Electronic distance sensor module |
| GTIN | 04057877006112 |
| Size (mm x mm x mm) | 280 x 210 x 210 |
| UPC | 193134004928 |
| Weight (kg) | 4 |
| Weight (lb) | 8.818 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517964 |
| DAF | 1517970 |
| EVOBUS | A0014312315 |
| IRISBUS | 42079486 |
| IVECO | 110450 |
| IVECO | 42079486 |
| IVECO | 42079586 |
| IVECO | 9010099029 |
| IVECO | 42079484 |
| IVECO | 42079485 |
| IVECO | 42125015 |
| IVECO | 4324100210 |
| MERCEDES-BENZ | A0014312315 |
| OTOKAR | 12F00-08085-AA |
| OTOKAR | 12F0008085AA |
| SCANIA | 390854 |
| VOLVO | 4324102020 |
