Description

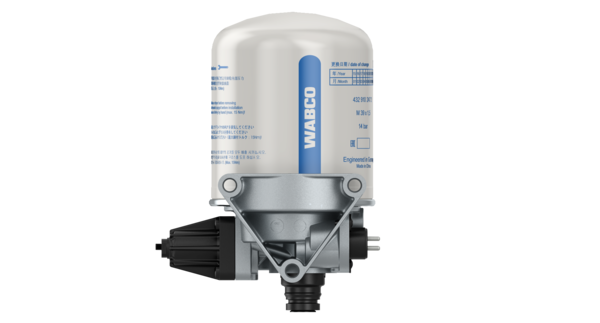

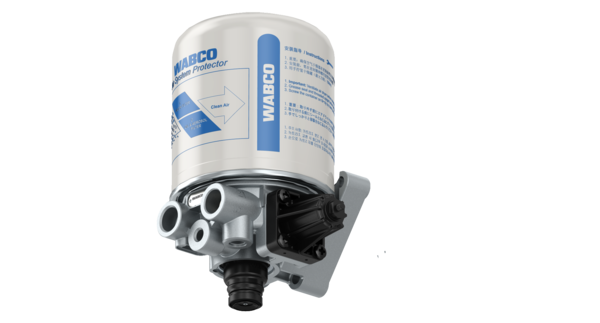

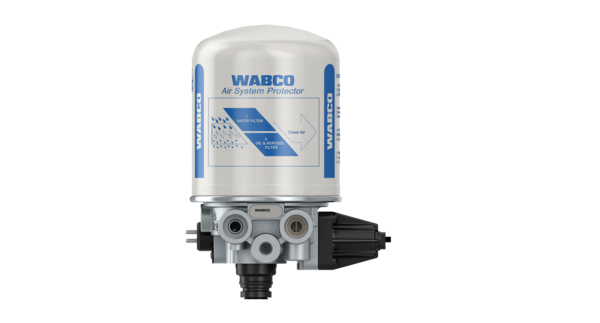

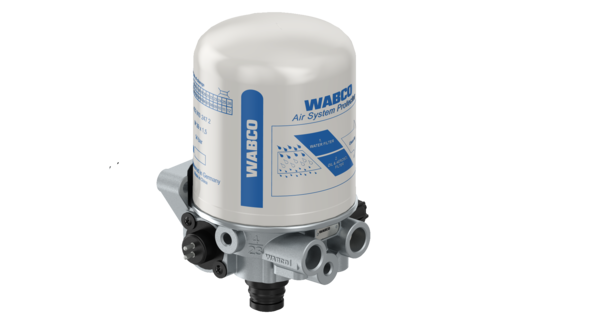

Air Dryer
Part Number: 4324103550
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.258 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 10.0 bar |
| Exhaust | JED-463-0 |
| Heating connection | M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Operational range | 0.7 bar |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875319108 |
| Size (mm x mm x mm) | 194 x 145 x 258 |
| UPC | 193133255567 |
| Weight (kg) | 3.5 |
| Weight (lb) | 7.716 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SINOTRUK (CNHTC) | WG9000360571/1 |
