Description

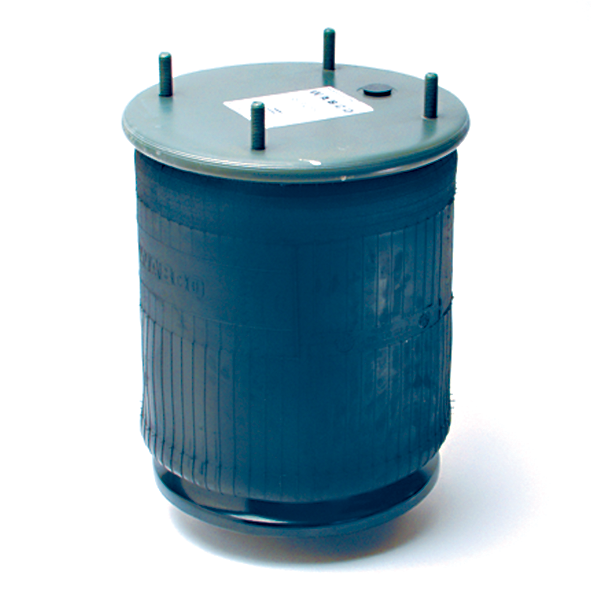

Air Bellow Spring
Part Number: 9518147050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body | 8961301024 |
| Calculated Volume (dm³) | 33.976 |
| Diameter | Max. 360 mm |
| Distance between bolts | 158.8×158.8 mm |
| Distance between holes | 200 mm (90°) |
| Length | 404 mm |
| Max. operating pressure | 5.0 bar |
| Mounting | 4x Male M12 x 1.75 / 4x Female M12 x 1.75 |
| Port thread 1 | Female M22 x 1.5 |
| Product category | Device |
| Stroke | 443.0 mm |
| Technical specification | OE specification |
| Temperature range | -55°C to +70°C |
| Total length | 404.0 mm |
| GTIN | 04057875295037 |
| Size (mm x mm x mm) | 404 x 291 x 289 |
| UPC | 193133366676 |
| Weight (kg) | 13.203 |
| Weight (lb) | 29.1076 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 388491 |
| DAF | 638148 |
| DAF | 1506431 |
| DAF | 0388491 |
| KÄSSBOHRER | 4731030000 |
| MERITOR | 21215633 |
| RENAULT | 5000790692 |
| RENAULT | 5021170402 |
| SAF | 2229000300 |
| SAF | 3228000300 |
| TRAILOR | 0036158E |
| TRAILOR | 65022347Y |
| TRAILOR | 65023482 |
| VOLVO | 1622116 |
| VOLVO | WA9518147050 |
