Description

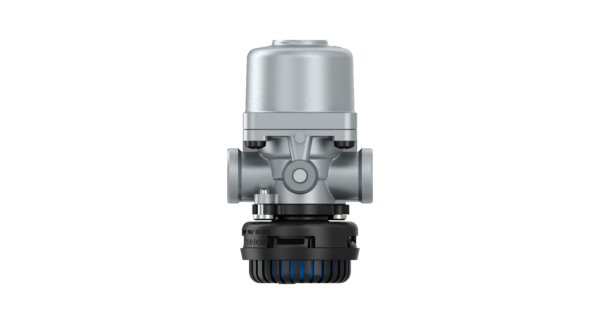

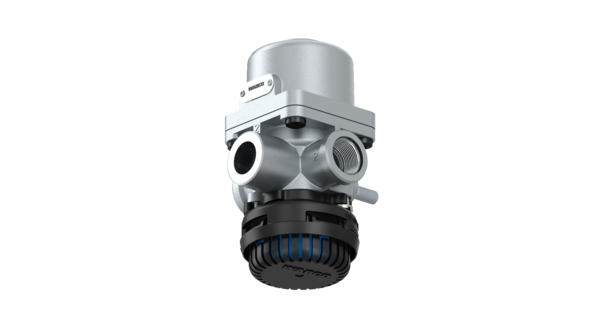

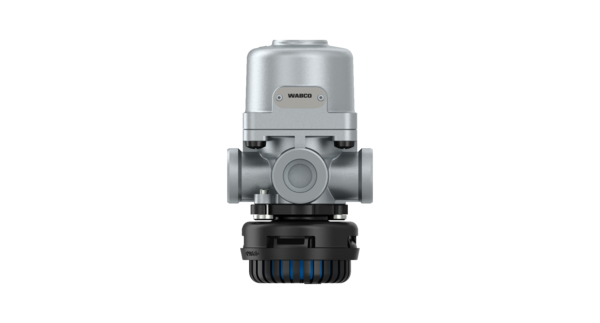

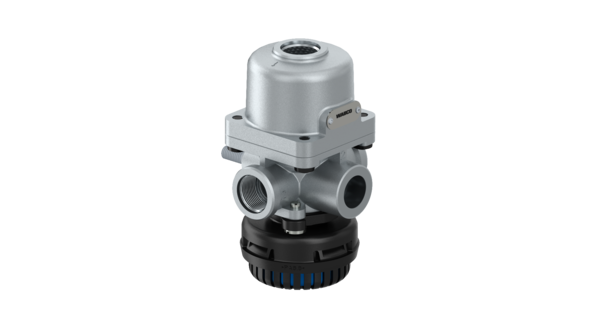

Adaptor Valve
Part Number: 9750020720
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 4.1 bar |
| Calculated Volume (dm³) | 1.2221 |
| Exhaust | Silencer 4324070500 |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | M22 x 1.5 JED – 388 |
| Port thread 2 | 2x M22x1.5 JED – 388 |
| Port thread 2.1 | Quick Connection M10 x 3 |
| Port thread 2.2 | M22x1.5 |
| Product category | Device |
| Regulating ratio | 1:1 (after break point) |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875305118 |
| Size (mm x mm x mm) | 145 x 98 x 86 |
| UPC | 193133379140 |
| Weight (kg) | 0.645 |
| Weight (lb) | 1.422 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0034307781 |
| MERCEDES-BENZ | 0034307781 |
| MERCEDES-BENZ | A0034307781 |
