Description

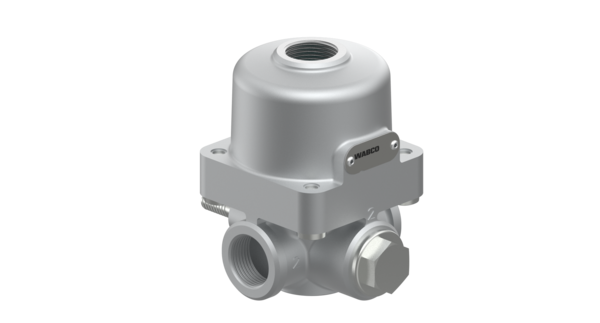

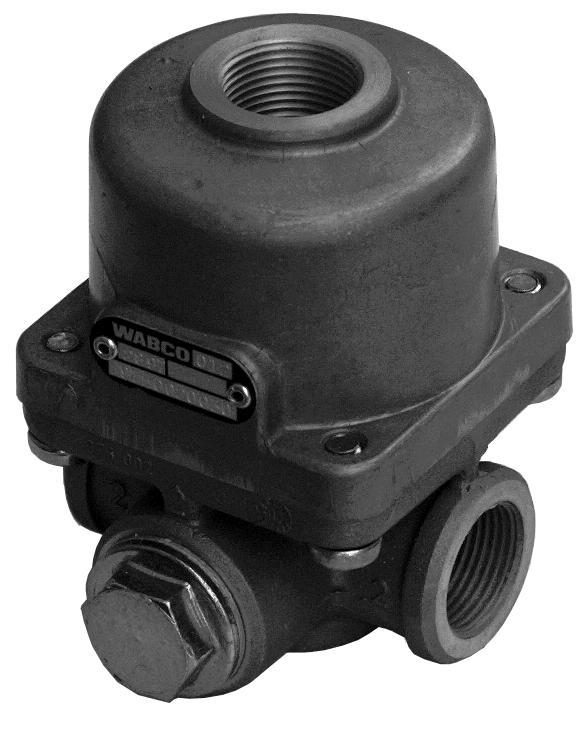

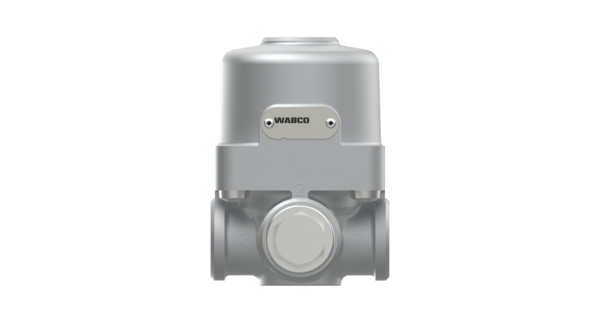

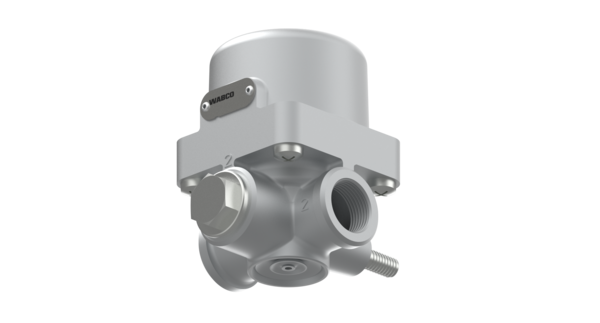

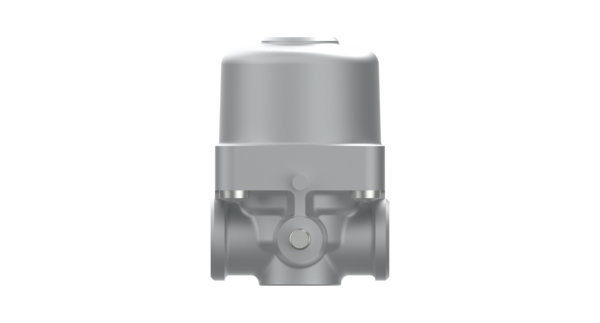

Adaptor Valve
Part Number: 9750020010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.648 |
| Comments | One port 2 blanked |
| Max. operating pressure | 10.0 bar |
| Opening pressure | 0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 3x M22 x 1.5 (1x closed) |
| Port thread 2.1 | M22 x 1.5 |
| Port thread 2.2 | M22x1.5 |
| Product category | Device |
| Regulating ratio | 1:1 (after break point) |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875305040 |
| Size (mm x mm x mm) | 96 x 95 x 71 |
| UPC | 193133379089 |
| Weight (kg) | 0.588 |
| Weight (lb) | 1.2963 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0102941 |
| DAF | 102941 |
| EVOBUS | A0004304881 |
| FAUN | 99708410102 |
| FORD | 73DB2B161AA |
| IRISBUS | 9750020010 |
| IVECO | 02508489 |
| LIEBHERR | 5029844 |
| LIEBHERR | 5029844R |
| MAN | 88521206001 |
| MAN | 90810111298 |
| MAN | 880S360008 |
| MERCEDES-BENZ | 0004304881 |
| MERCEDES-BENZ | A0004304881 |
| NEOPLAN | 88521206001 |
| O&K | 8410102 |
| RENAULT | 1957100 |
| RENAULT | 0001957100 |
| STEYR | 880S360008 |
| VDL | 45015481 |
| VOLVO | 11190578 |
