Description

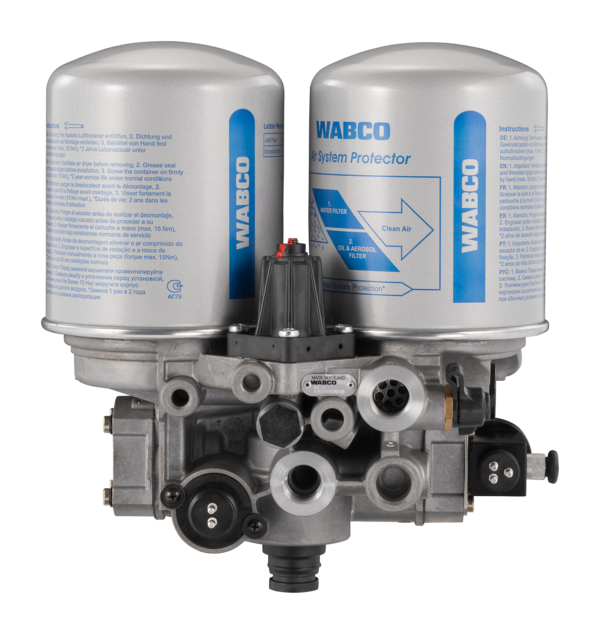

AD SysS Twin w/coal-1.0mm
Part Number: 4324330360
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 27.148 |
| Cartridge type | Desiccant and Oil separator Cartridge |
| Exhaust | JED-463-0 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 11.00 bar |
| Port thread 11 | 1/2″ – 14 NTPF |
| Port thread 21 | 1/2″ – 14 NPTF |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 12 V |
| GTIN | 04057875949626 |
| Size (mm x mm x mm) | 406 x 292 x 229 |
| UPC | 193133437635 |
| Weight (kg) | 8.8223821 |
| Weight (lb) | 19.45 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4324330360 |
| INTERNATIONAL | 2608376C91 |
| KENWORTH | S432-433-036-0 |
| MACK | 8235-S4324330360 |
| MACK | 6300-4324330360 |
| MERITOR | S4324330360 |
| PETERBILT | S432-433-036-0 |
| VOLVO | S4324330360 |
| VOLVO | WAB4324330360 |
