Description

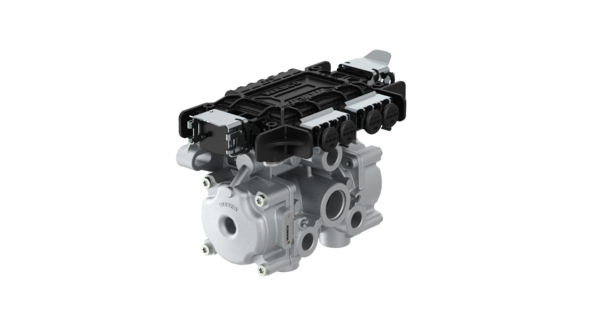

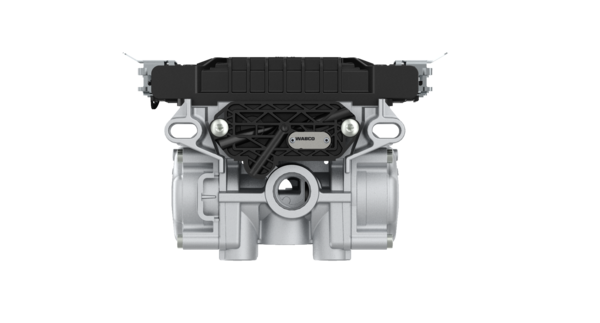

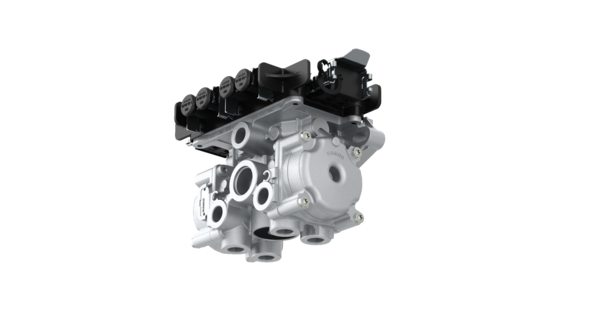

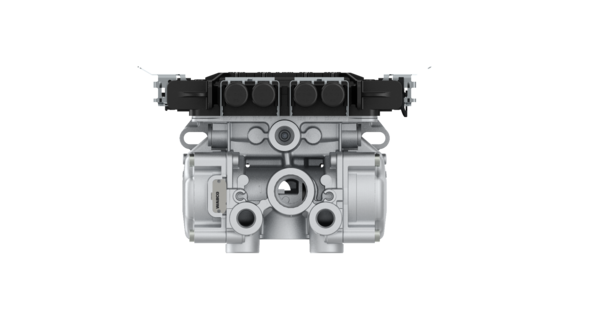

ABS System Package
Part Number: 4005000880
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.4542 |
| Max. operating pressure | 13.0 bar |
| Maximum system | 4S/3M … 2S/2M |
| Port thread 1 | 2x M26 x 1.5 |
| Port thread 21 | 3x M16 x 1.5 |
| Port thread 22 | 3x M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port thread 4 | M16 x 1.5 |
| Port threads | M16 x 1.50 |
| Product category | Device |
| Protection class | IP 66 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | COM-Variant |
| Voltage | 24 V |
| GTIN | 04057875081746 |
| Size (mm x mm x mm) | 152 x 222 x 132 |
| UPC | 193133399544 |
| Weight (kg) | 2.372 |
| Weight (lb) | 5.2294 |
