Description

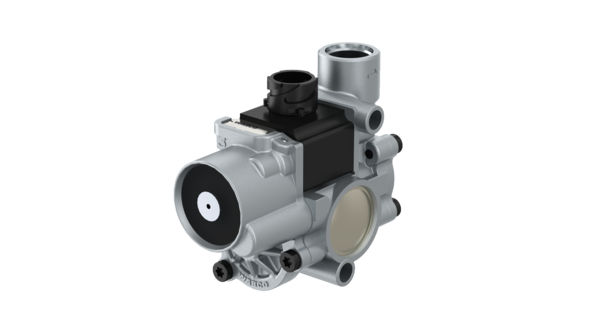

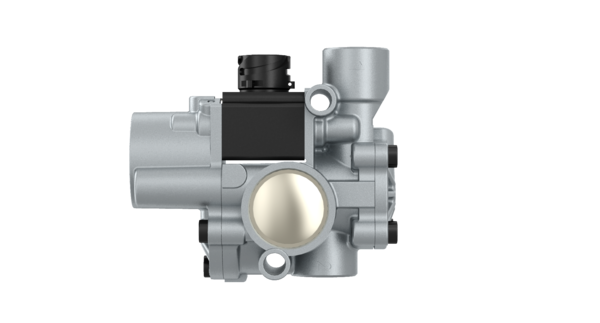

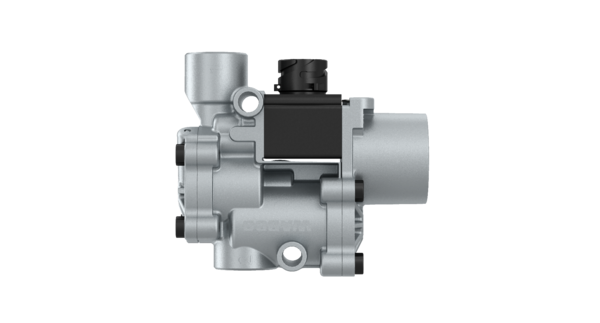

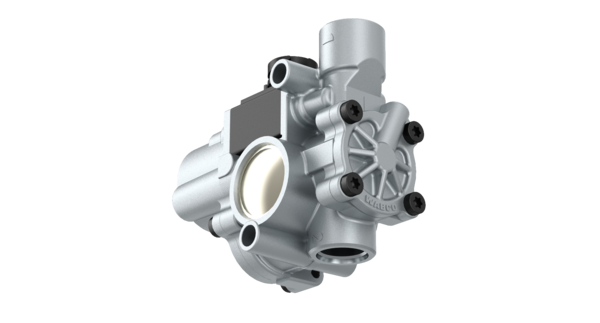

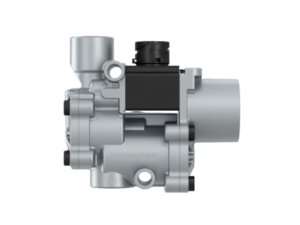

ABS Solenoid Modulator Valve
Part Number: 4721950550
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.668 |
| Cooling | Air |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Protection class | IP 69K DIN 40050 BL.9 |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851086005 |
| Size (mm x mm x mm) | 116 x 57 x 101 |
| UPC | 193133443353 |
| Weight (kg) | 0.68 |
| Weight (lb) | 1.4991 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 445332075 |
| DAF | 1524831 |
| FOTON | H0356D02001A0 |
| IRISBUS | 5006034256 |
| IRISBUS | 41211070 |
| IRISBUS | 5006143405 |
| IVECO | 41211070 |
| IVECO | 5006034256 |
| IVECO | 5006143405 |
| IVECO | 9472195055 |
| IVECO | 125726 |
| IVECO | 41027224 |
| IVECO | 42070065 |
| IVECO | 42123220 |
| IVECO | 42542734 |
| LEYLAND DAF | ABRD758 |
| NISSAN | 464139X401 |
| PACCAR | 1524831 |
| SCANIA | 1453761 |
| SCANIA | 1934978 |
| SHAANXI | DZ95189583020 |
| UD TRUCKS | 464139X401 |
