Description

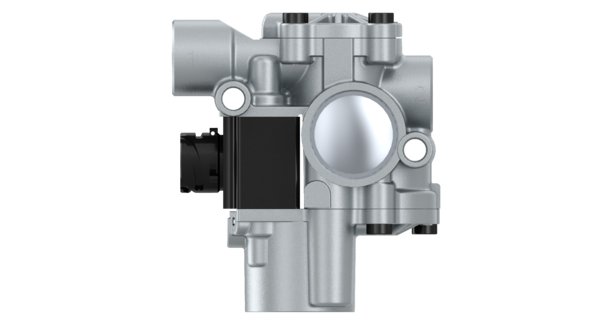

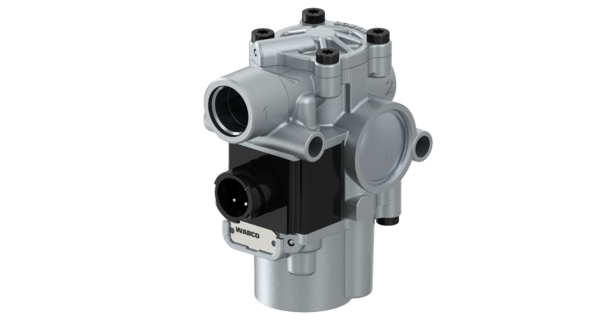

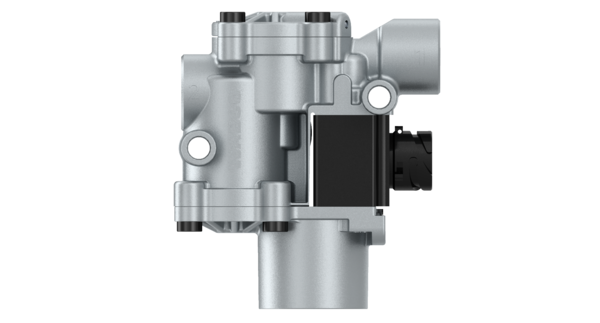

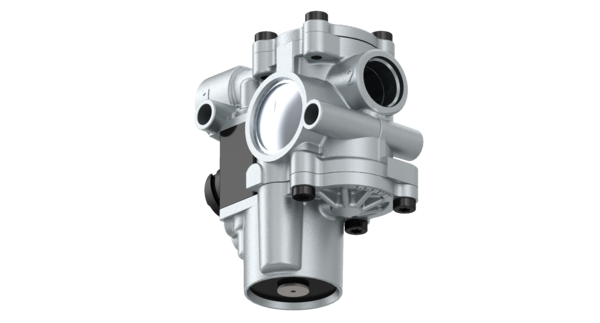

ABS Solenoid Modulator Valve
Part Number: 4721950180
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.76275 |
| Comments | Additionally required 8946011322 |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Protection class | IP 69K DIN 40050 BL.9 |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851007321 |
| Size (mm x mm x mm) | 64 x 118 x 101 |
| UPC | 193133443278 |
| Weight (kg) | 0.662 |
| Weight (lb) | 1.4595 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6538771 |
| ALEXANDER DENNIS | 6576932 |
| ALEXANDER DENNIS | 6579421 |
| ALEXANDER DENNIS | 6579422 |
| ASHOK LEYLAND | 445332007 |
| BEIBEN | 5004310018 |
| DAEWOO | 3453401300 |
| DAEWOO | P34534 01300 |
| DAF | 1504901 |
| DONGFENG (DFM) | 3550ZB6-001 |
| FAUN | 99707006699 |
| FAW | 35503156S |
| FAW | S35503156S |
| FAW | 3550315-6S |
| FAW | S3550310-6S |
| FAW | S3550315-6S |
| FELDBINDER | 007292 |
| FORD | YC442C219AA |
| FOTON | 1417135900001 |
| FOTON | 1106936800030 |
| FOTON | 1106935600030 |
| FREIGHTLINER | TDAS4721950180 |
| HUIZHONG | 39800-87020 |
| HYUNDAI | 594207F000 |
| HYUNDAI | 59420 7F000 |
| IRISBUS | 41027224 |
| IRISBUS | 4460000008 |
| IRIZAR | 8015515 |
| ISUZU | DG477000030 |
| IVECO | 41027224 |
| IVECO | 4460000008 |
| IVECO | E4460000008 |
| IVECO | 5801091133 |
| IVECO | 41211070 |
| IVECO | 42070065 |
| IVECO | 42123220 |
| IVECO | 42542734 |
| JAC | 3506200CF24QZGBA |
| JAC | 3506200N5Q-AGO |
| JAC | 59420-7F000 |
| KENWORTH | S472-195-018-0 |
| KIA | 0K87T43802 |
| KING LONG | 35A0350010 |
| KING LONG | 235600020 |
| KING LONG | 35A03-50010 |
| LIEBHERR | 502666708 |
| MACK | 8235-S4721950180 |
| MACK | 6300-4721950180 |
| MERITOR | S4721950180 |
| OTOKAR | 13C0008804AA |
| PACCAR | 1504901 |
| PETERBILT | S472-195-018-0 |
| SCANIA | 1376793 |
| SCANIA | 1934975 |
| SCHWARZMÜLLER | 12992 |
| SHAANXI | 61223550112 |
| SHAANXI | DZ9100580213 |
| SINOTRUK (CNHTC) | WG9718360002 |
| SINOTRUK (CNHTC) | WG9718360002/1 |
| SINOTRUK (CNHTC) | WG97183600021 |
| SOLARIS | 1102963200 |
| SUNWIN | SWB563050059-2 |
| TEREX | 00132412 |
| VAN HOOL | 10674229 |
| VDL | 28210607900 |
| VOLVO | 1079666 |
| VOLVO | WAB4721950180 |
| YUTONG | 355000017 |
| YUTONG | 3550-00017 |
