Description

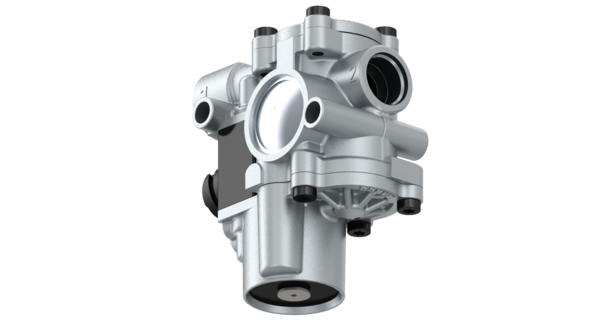

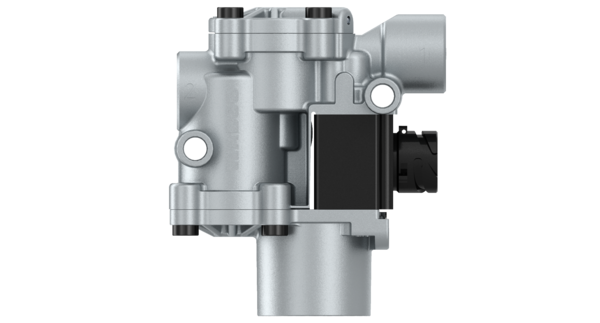

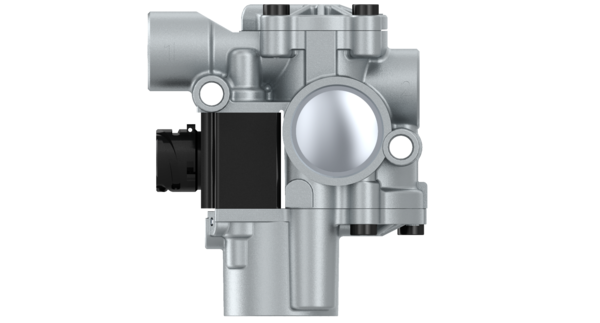

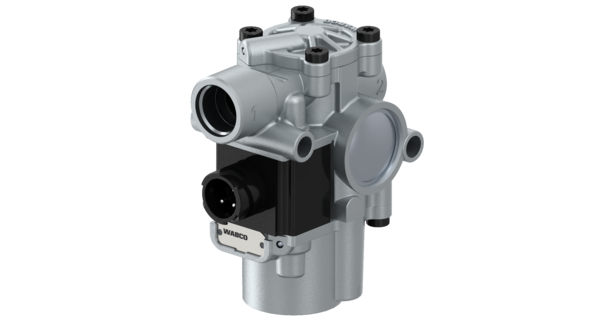

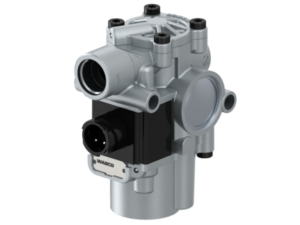

ABS Solenoid Modulator Valve
Part Number: 4721950160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.74423 |
| Comments | Additionally required 8946011322 |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 JED-388 |
| Product category | Device |
| Protection class | IP 67, IP 69K EN 60529, IEC 529 |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851027534 |
| Size (mm x mm x mm) | 59 x 106 x 119 |
| UPC | 193133443261 |
| Weight (kg) | 0.684 |
| Weight (lb) | 1.508 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6575332 |
| BEIBEN | 5004310018 |
| DAF | 1304635 |
| DAF | 1505210 |
| ERF | 4082200 |
| EVOBUS | A0044296544 |
| FAW | 355031050A |
| FAW | 3550310-50A |
| FOTON | H4356D02001A0 |
| FOTON | 1417135900001 |
| FOTON | 1612135900002 |
| FOTON | 1419335676004 |
| FOTON | L0356012003A0 |
| HINO | 899960117A |
| KENWORTH | S472-195-016-0 |
| LEYLAND DAF | ABRA143 |
| LEYLAND DAF | 1304635 |
| MACK | 6300-4721950160 |
| MAN | 81524525019 |
| MAN | 81524526019 |
| MAN | 4721950160 |
| MAN | 4082200 |
| MAN | ZG110050007 |
| MAN | 81524526038 |
| MERCEDES-BENZ | 0044296544 |
| MERCEDES-BENZ | A0044296544 |
| MERITOR | S4721950160 |
| NEOPLAN | 81524526019 |
| PACCAR | 1505210 |
| PETERBILT | S472-195-016-0 |
| RENAULT | 5010143058 |
| SCANIA | 1934974 |
| SINOTRUK (CNHTC) | WG9000360515/1 |
| SINOTRUK (CNHTC) | WG90003605151 |
| SINOTRUK (CNHTC) | AZ87355000100 |
| SINOTRUK (CNHTC) | WG90003605152 |
| VDL | 20252300 |
| VOLVO | WA4721950160 |
| VOLVO | WAB4721950160 |
