Description

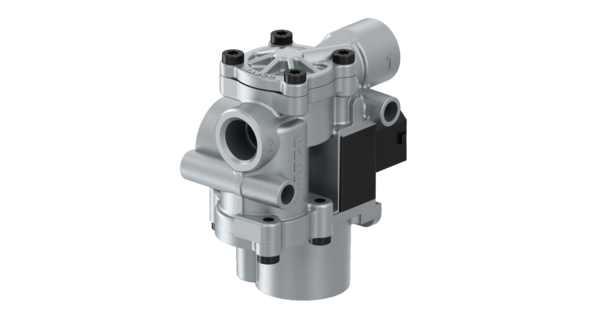

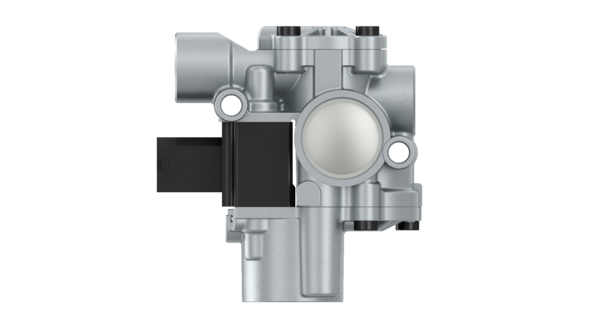

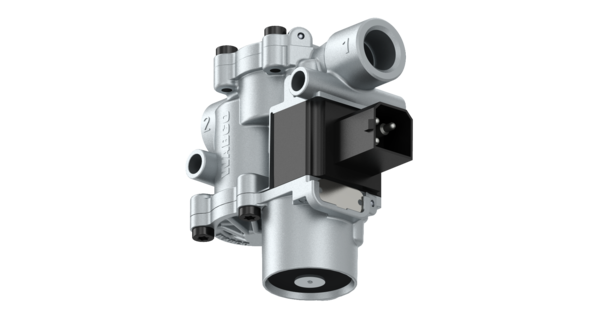

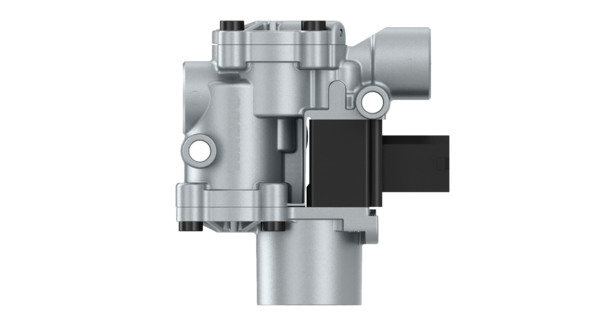

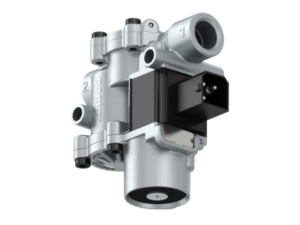

ABS Solenoid Modulator Valve
Part Number: 4721950480
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.80712 |
| Distance between holes | 71×20 mm |
| Electrical connection | Volvo plug |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875218920 |
| Size (mm x mm x mm) | 114 x 118 x 60 |
| UPC | 193133311805 |
| Weight (kg) | 0.709 |
| Weight (lb) | 1.5631 |
