Description

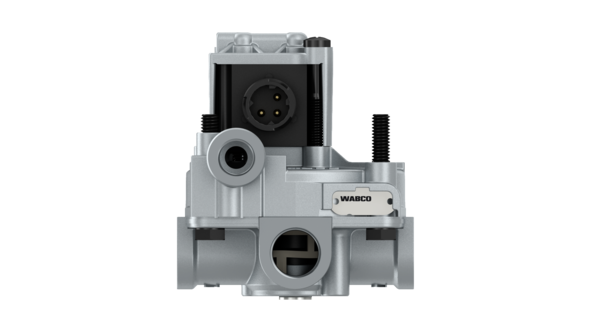

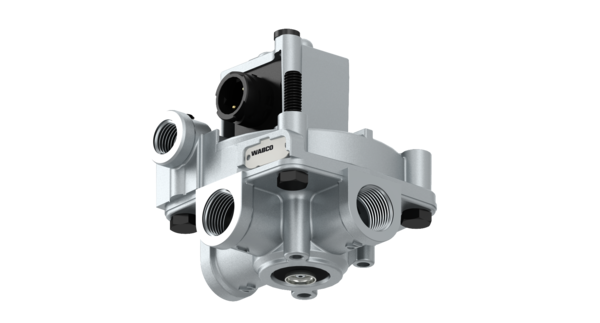

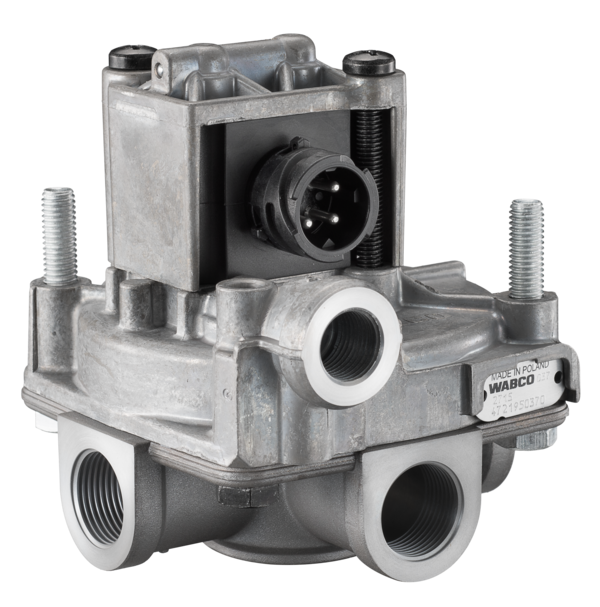

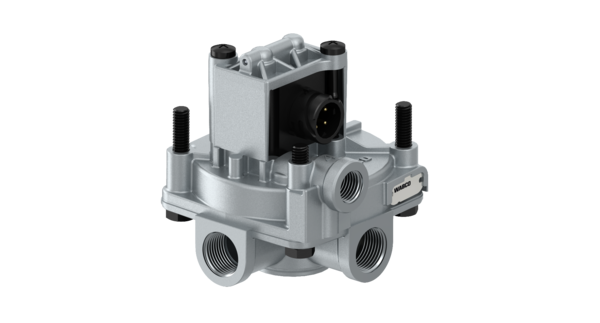

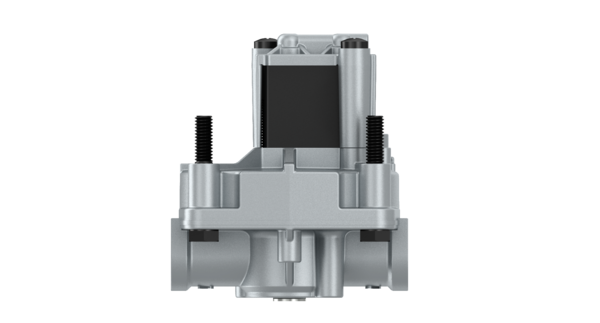

ABS Relay Valve
Part Number: 4721950370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.4833 |
| Distance between bolts | 75×75 mm |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K1 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 3 | Snap-on contour |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 66, IP 69K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875218906 |
| Size (mm x mm x mm) | 126 x 108 x 109 |
| UPC | 193133311720 |
| Weight (kg) | 0.837 |
| Weight (lb) | 1.8453 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 515017968 |
| SCANIA | 2090054 |
| SCHMITZ CARGOBULL | 1068354 |
| SCHWARZMÜLLER | 85736 |
| VOLVO | WA4721950370 |
