Description

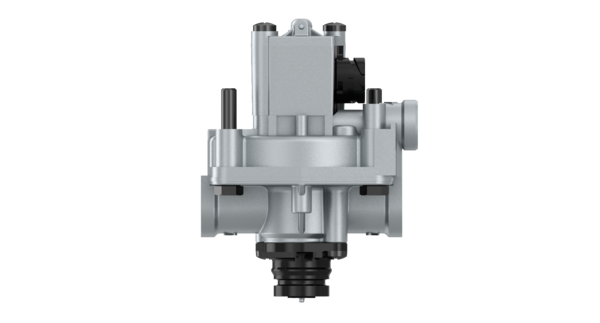

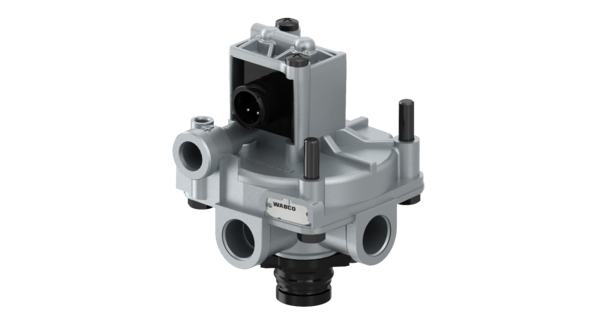

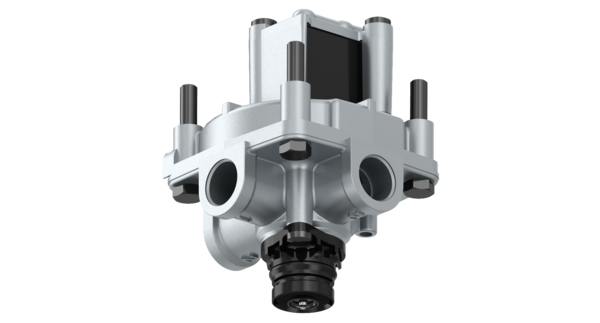

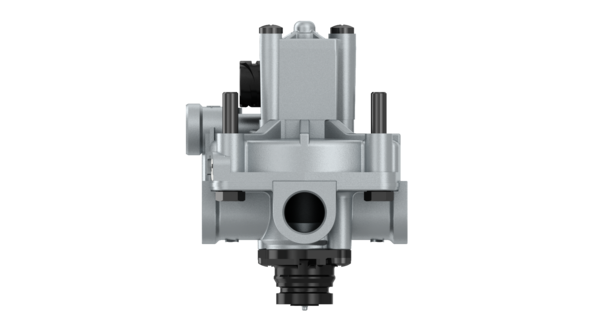

ABS Relay Valve
Part Number: 4721950310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.5277 |
| Distance between bolts | 75×75 mm |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K1 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 3 | Snap-on contour |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 66, IP 69K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851028272 |
| Size (mm x mm x mm) | 103 x 103 x 144 |
| UPC | 193133443292 |
| Weight (kg) | 0.867 |
| Weight (lb) | 1.9114 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | C00203901 |
| DAF | 1610595 |
| DOLL | 7055966 |
| FAYMONVILLE | 14195 |
| FELDBINDER | 053670 |
| FREIGHTLINER | TDAS4721950310 |
| FRUEHAUF | CF352791 |
| FRUEHAUF | C00203901 |
| FRUEHAUF | F002005 |
| FRUEHAUF | 5311-055 |
| GOLDHOFER | 167143 |
| KENWORTH | S472-195-031-0 |
| KRONE | 5815453 |
| KRONE | 58154530 |
| KRONE | 505815453 |
| KÖGEL | 349275 |
| LANGENDORF | 1227786 |
| LIEBHERR | 502815301 |
| MACK | 8235-S4721950310 |
| MACK | 6300-4721950310 |
| MERITOR | S4721950310 |
| NIPPON SHARYO | A6000JD09160 |
| NIPPON TREX | 924301-00121 |
| NOOTEBOOM | 1485699 |
| NOOTEBOOM | 05695 |
| PACCAR | 1505089 |
| PACCAR | 1610595 |
| PETERBILT | S472-195-031-0 |
| RENAULT | 5021170197 |
| SCANIA | 2090052 |
| SCHMITZ CARGOBULL | 050091 |
| SCHMITZ CARGOBULL | 50091 |
| SCHMITZ CARGOBULL | INS0160098 |
| SCHWARZMÜLLER | 43614 |
| VOLVO | 2S4721950310 |
| VOLVO | 2S472 195 031 0 |
| VOLVO | WAB4721950310 |
| ZORZI | 1013110 |
