Description

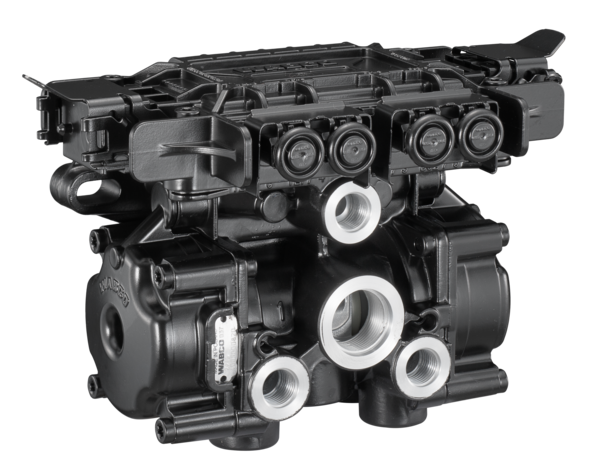

ABS ECU Trailer
Part Number: 4005000820
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.0811 |
| Comments | Painted |
| Electrical connection | X1 = 8 pole, X6 = 8 pole, 4x sensor connector |
| Max. operating pressure | 13.0 bar |
| Maximum system | 4S/3M … 2S/2M |
| Port thread 1 | 2x M26 x 1.5 |
| Port thread 21 | 3x M16 x 1.5 |
| Port thread 22 | 3x M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 66 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Premium. Painted |
| Version | VCS II |
| Voltage | 24 V |
| GTIN | 04057875081753 |
| Size (mm x mm x mm) | 234 x 141 x 154 |
| UPC | 193133154679 |
| Weight (kg) | 2.406 |
| Weight (lb) | 5.3043 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1738448 |
| SCANIA | 2090320 |
