Description

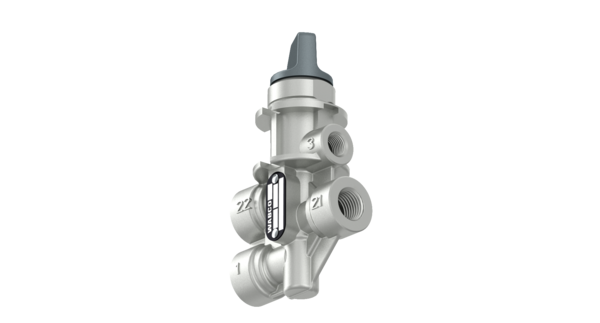

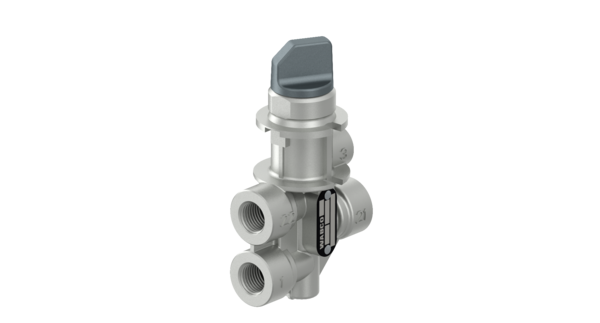

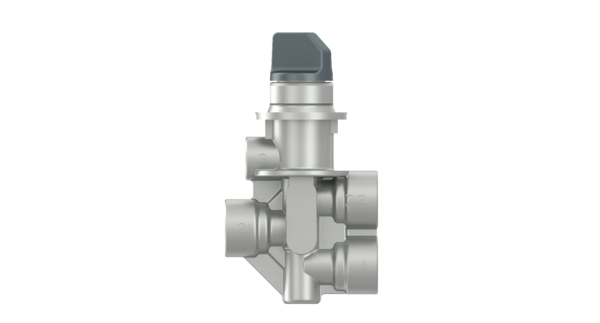

4/3 Directional Control Valve
Part Number: 4630370070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Turn |
| Actuation angle | 30°/60°/60° |
| Calculated Volume (dm³) | 0.28224 |
| Color | Grey |
| Comments | With locking function |
| Exhaust | M10 x 1 |
| Max. operating pressure | 12.0 bar |
| Mounting | M28 x 1.5 |
| Nominal diameter | 4.0 mm |
| Parking position | 60° |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | M10 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 4/3 |
| GTIN | 04057875212850 |
| Size (mm x mm x mm) | 112 x 40 x 63 |
| UPC | 193133306696 |
| Weight (kg) | 0.3 |
| Weight (lb) | 0.66139 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRISBUS | 8167586 |
| IVECO | 08167586 |
| IVECO | 8167586 |
