Description

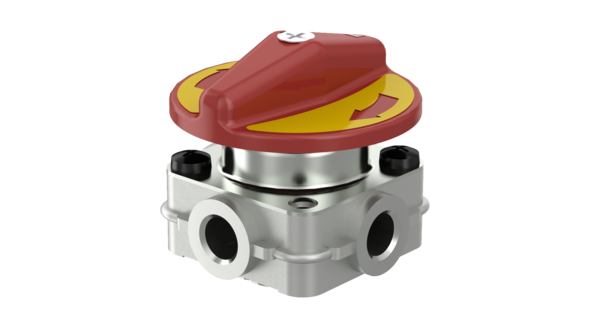

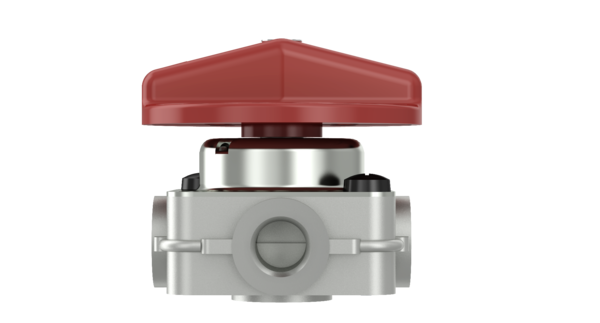

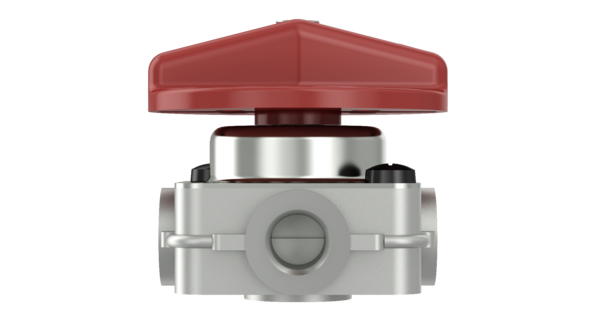

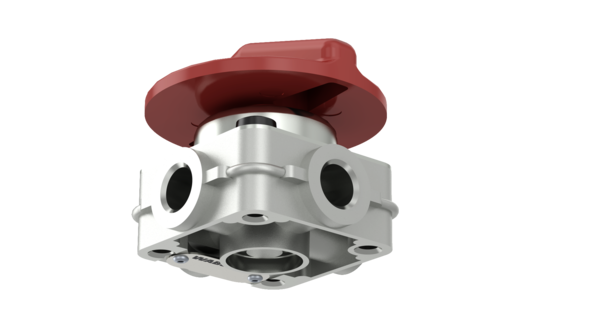

4/2 Way Cock
Part Number: 9520030230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2324 |
| Color | Red |
| Distance between holes | 36×36 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2 x M6 |
| Nominal diameter | 3.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 4/2 |
| GTIN | 04057875295204 |
| Size (mm x mm x mm) | 65 x 65 x 55 |
| UPC | 193133365389 |
| Weight (kg) | 0.34 |
| Weight (lb) | 0.749571 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | 8283982000 |
| EVOBUS | 82839820000 |
| IRISBUS | 5801101573 |
| IRISBUS | 504003117 |
| IVECO | 504003117 |
| IVECO | 5801101573 |
| IVECO | 58011 |
| MAN | 81521706077 |
| MAN | 81521706079 |
| MAN | 58011 |
| MAN | 81521706073 |
| MERCEDES-BENZ | 0007600557 |
| MERCEDES-BENZ | 0007601057 |
| MERCEDES-BENZ | 0007601757 |
| NEOPLAN | 110264700 |
| NEOPLAN | 81521706077 |
| VDL | 20277053 |
| VDL | 277053 |
| VOLVO | 589990049990 |
| VOLVO | 589990048170 |
