Description

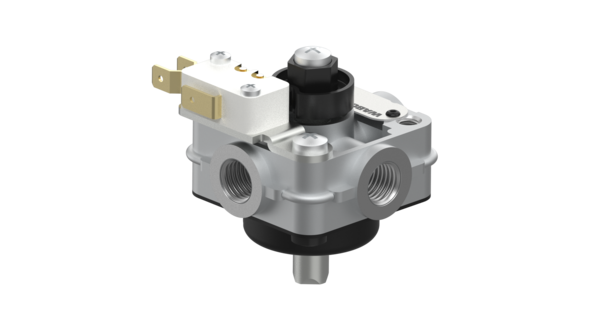

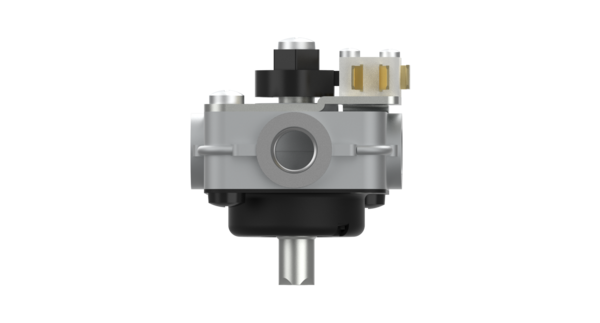

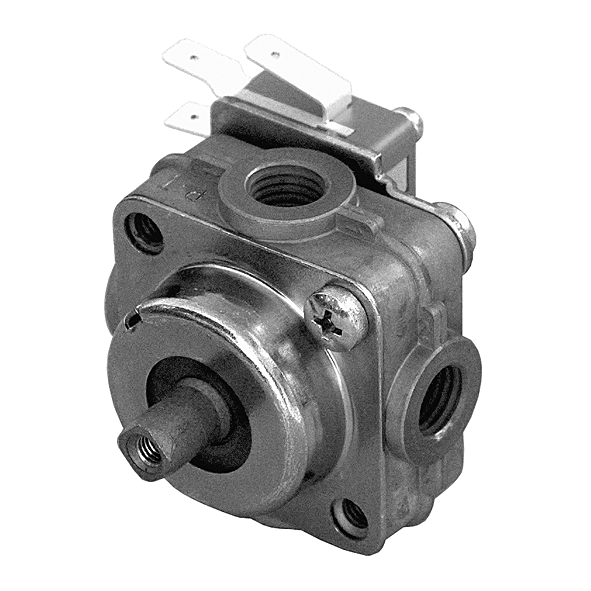

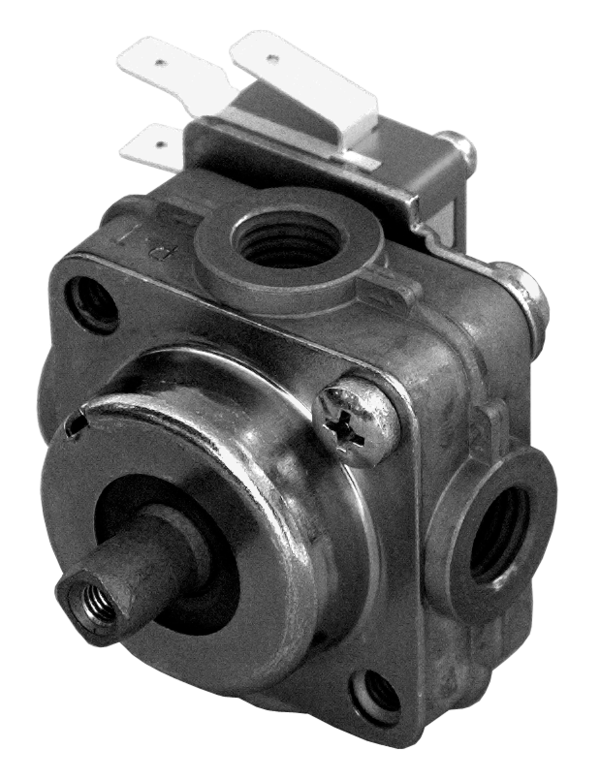

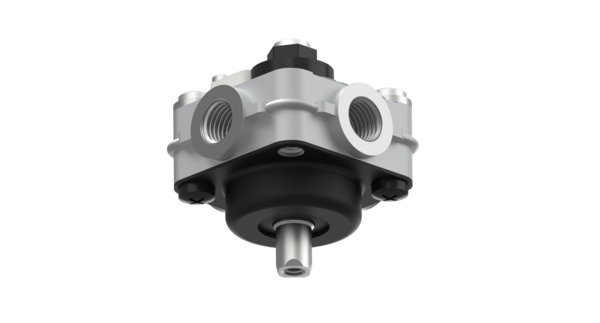

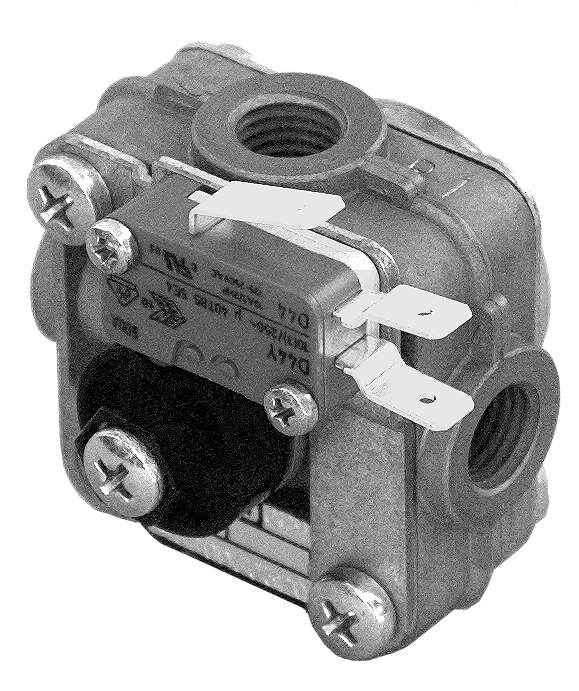

4/2 Way Cock
Part Number: 9520030320
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.18452 |
| Comments | Electircal |
| Distance between holes | 36×36 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2 x M6 |
| Nominal diameter | 3.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 4/2 |
| Version | Normally closed |
| Voltage | 250 V |
| GTIN | 04057875295198 |
| Size (mm x mm x mm) | 61 x 55 x 55 |
| UPC | 193133366171 |
| Weight (kg) | 0.319 |
| Weight (lb) | 0.70327 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518205 |
| EVOBUS | 8285376000 |
| EVOBUS | A0007602357 |
| EVOBUS | A0007602857 |
| IVECO | 8010000181MO |
| IVECO | 42546 |
| IVECO | 5006035651 |
| KING LONG | 261500072 |
| MAN | 81521706134 |
| MAN | 81521706137 |
| MERCEDES-BENZ | 0007602357 |
| MERCEDES-BENZ | A0007602357 |
| MERCEDES-BENZ | 0007601657 |
| MERCEDES-BENZ | 0007602857 |
| MERCEDES-BENZ | A0007602857 |
| NEOPLAN | 81521706134 |
| OTOKAR | 13C0056070AB |
| SOLARIS | 2401174125 |
| VOLVO | 24424493 |
