Description

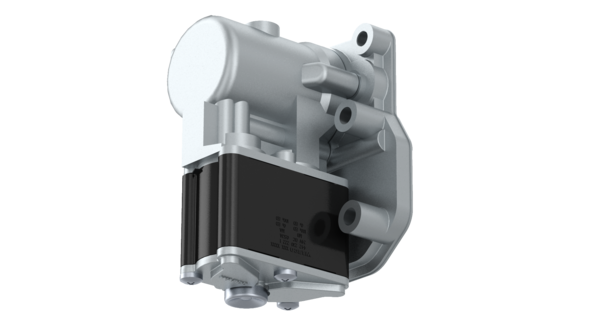

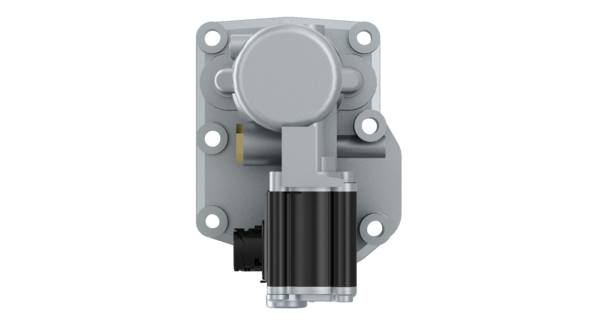

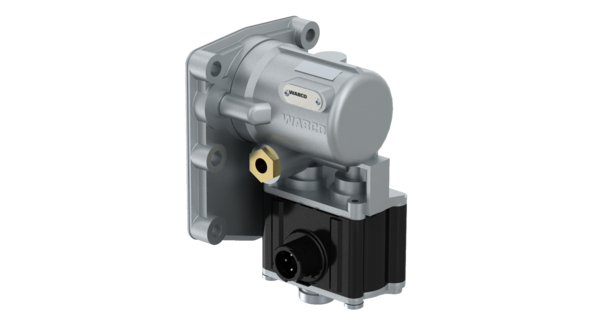

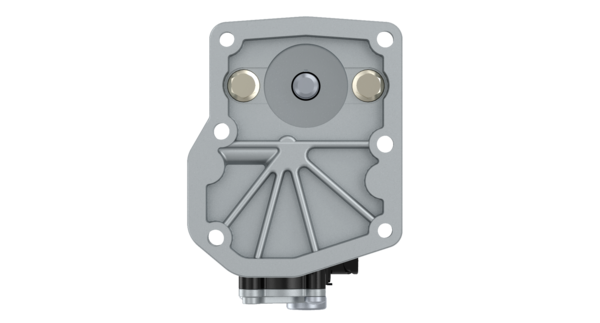

3 Position Cylinder
Part Number: 4213510750
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.9797 |
| Electrical connection | Bayonet DIN 72585-A1-3.1-Sn/K2 |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.9 mm |
| Port thread 13 | VOSS NG 8 |
| Product category | Device |
| Protection class | IP69K, IP67 |
| Rated current | 530 mA |
| System | EPS II |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Type | 2 – Position |
| Voltage | 24 V |
| GTIN | 04057875158516 |
| Size (mm x mm x mm) | 161 x 116 x 106 |
| UPC | 193133241096 |
| Weight (kg) | 1.74 |
| Weight (lb) | 3.836 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0012605063 |
| EVOBUS | A0012602963 |
| MERCEDES-BENZ | 0012602963 |
| MERCEDES-BENZ | 0012605063 |
| MERCEDES-BENZ | A0012602963 |
| MERCEDES-BENZ | A0012605063 |
