Description

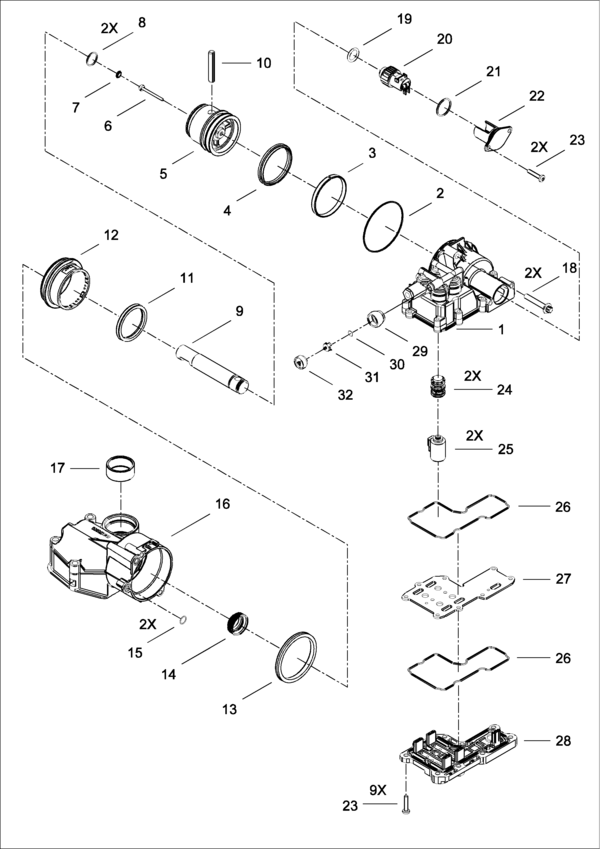

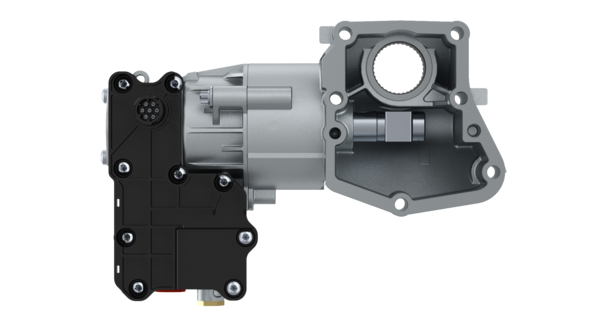

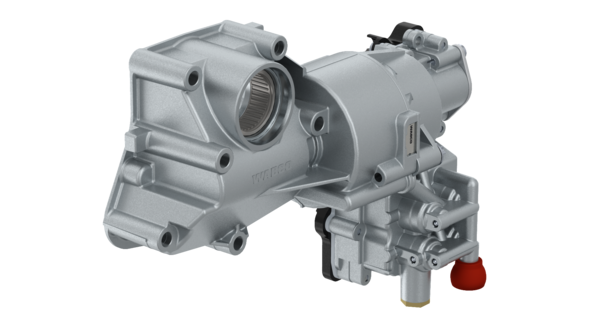

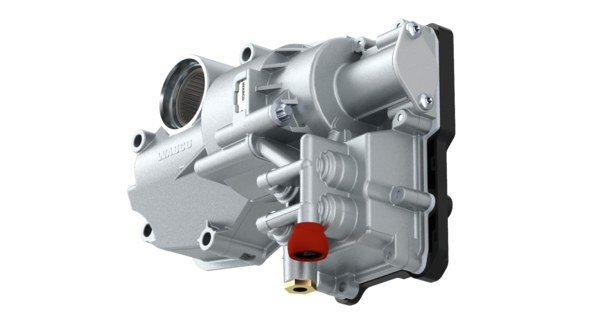

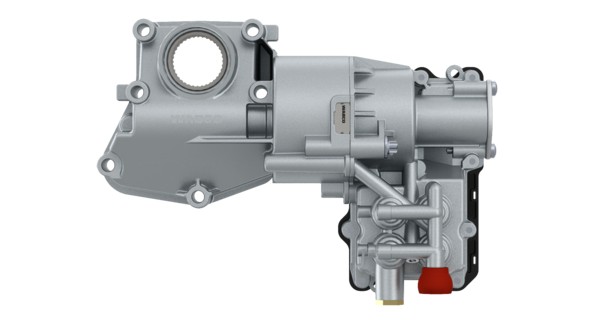

3 Position Cylinder
Part Number: 4213500870
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.6675 |
| Electrical connection | 7-pin Wabco No. 8941103122 Rev 1 |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.8 mm |
| Port thread 11 | Voss NG 8 |
| Product category | Device |
| Protection class | IP69K |
| Rated current | 400 mA |
| System | EPS III |
| Technical specification | OE specification |
| Temperature range | -35°C to +130°C |
| Type | 3 – Position |
| Voltage | 24 V |
| GTIN | 04057875158325 |
| Size (mm x mm x mm) | 250 x 127 x 210 |
| UPC | 193133001751 |
| Weight (kg) | 3.93 |
| Weight (lb) | 8.6642 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FUSO (MITSUBISHI) | MX005892 |
| MERCEDES-BENZ | A0022608663 |
| MERCEDES-BENZ | A0032602163 |
| MERCEDES-BENZ | A9302600163 |
