Description

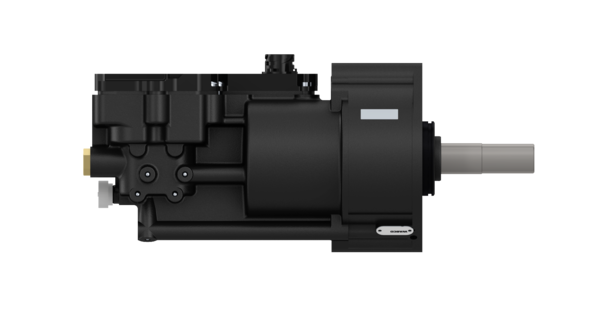

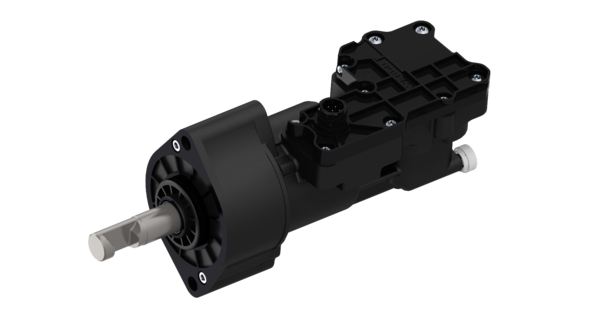

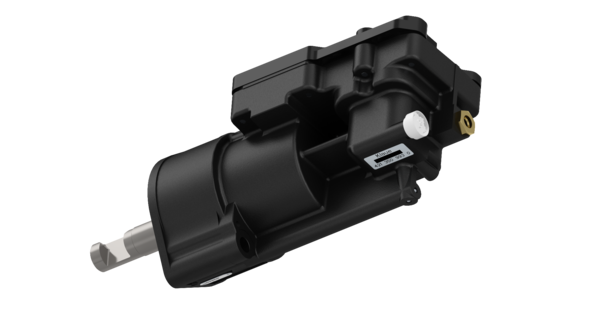

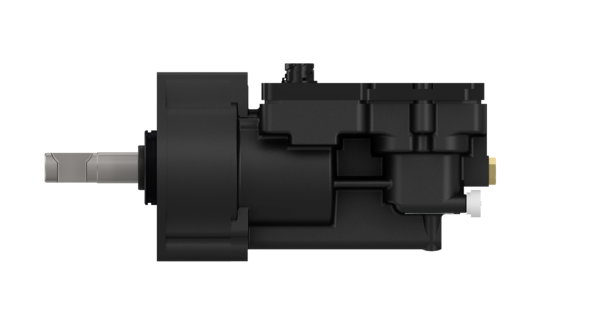

3 Position Cylinder
Part Number: 4213509930
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.975 |
| Electrical connection | 7-pin Wabco No. 8941103122 Rev 1 |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.8 mm |
| Port thread 11 | Voss NG 8 |
| Product category | Device |
| Protection class | IP69K |
| Rated current | 400 mA |
| System | EPS III |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Type | 3 – Position |
| Voltage | 24 V |
| GTIN | 04057875158479 |
| Size (mm x mm x mm) | 360 x 121.7 x 159.2 |
| UPC | 193133010166 |
| Weight (kg) | 4.49 |
| Weight (lb) | 9.899 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0022608863 |
| MERCEDES-BENZ | 0022600263 |
| MERCEDES-BENZ | A0022608863 |
