Description

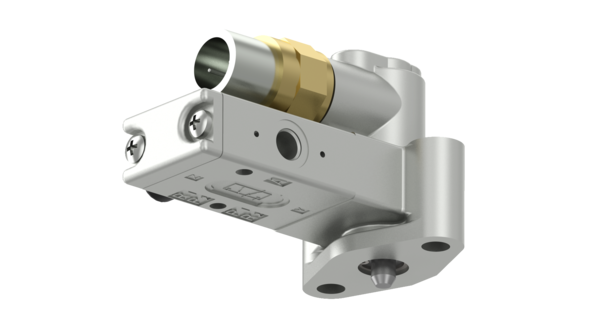

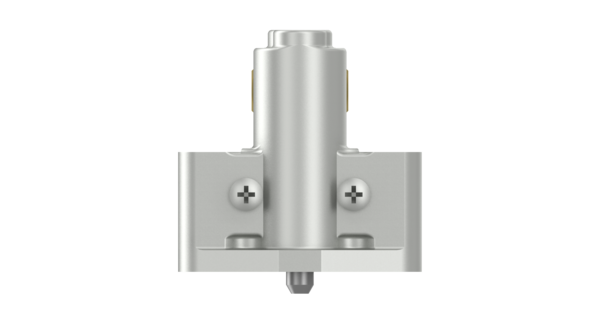

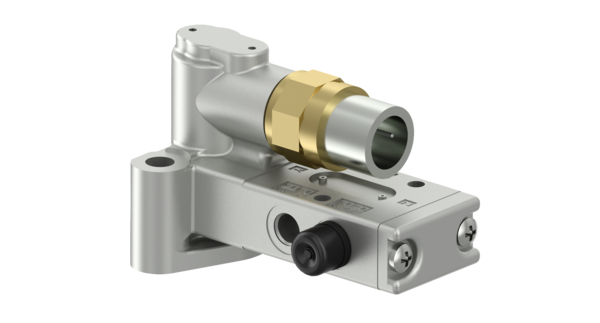

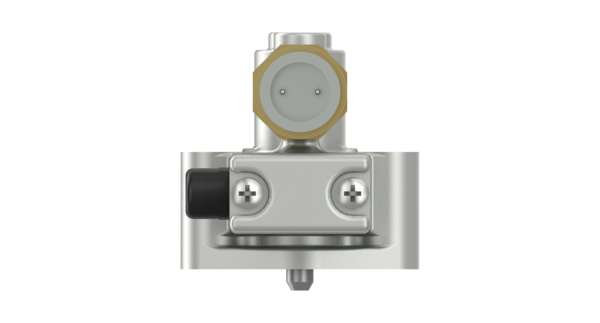

3/2 Directional Control Valve
Part Number: 4630380120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.59935 |
| Distance between holes | 92×50 mm |
| Electrical connection | DIN 72585 A1-2. 1 -Ag |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M10 x 1 |
| Port thread 21 | M10 x 1.0 |
| Port thread 3 | Exhaust |
| Product category | Device |
| Protection class | IP 66 |
| Technical specification | OE specification |
| Temperature range | -20°C to +100°C |
| Type | 3/2 |
| Voltage | 24 V |
| GTIN | 04057875212935 |
| Size (mm x mm x mm) | 113 x 68 x 78 |
| UPC | 193133306894 |
| Weight (kg) | 0.939 |
| Weight (lb) | 2.0701 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0022601057 |
