Description

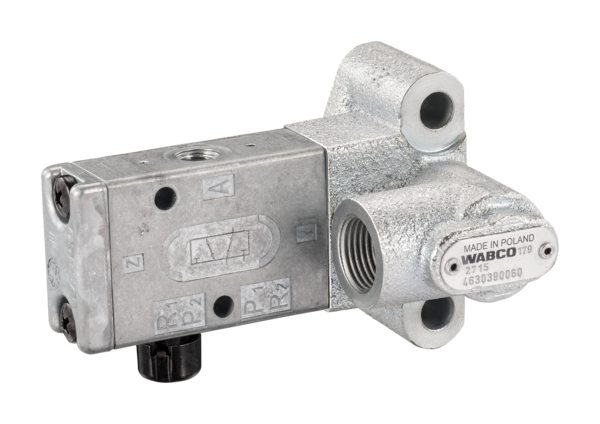

3/2 Directional Control Valve
Part Number: 4630390060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.62692 |
| Distance between holes | 92×50 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Nominal diameter | 1.5 mm |
| Port thread 1 | M10 x 1 |
| Port thread 21 | M10 x 1.0 |
| Port thread 3 | Exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -15°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875213048 |
| Size (mm x mm x mm) | 113 x 73 x 76 |
| UPC | 193133306924 |
| Weight (kg) | 0.842 |
| Weight (lb) | 1.8563 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0012601057 |
| MERCEDES-BENZ | 0012601057 |
| MERCEDES-BENZ | A0012601057 |
| TEREX | 99550800 |
