Description

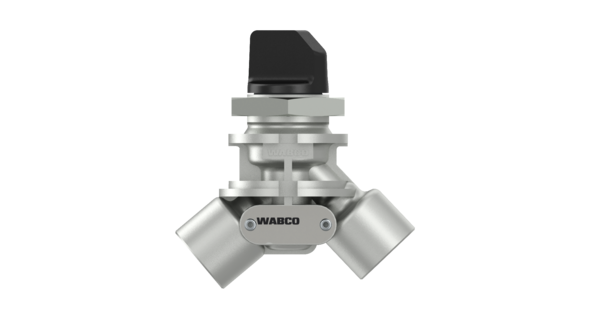

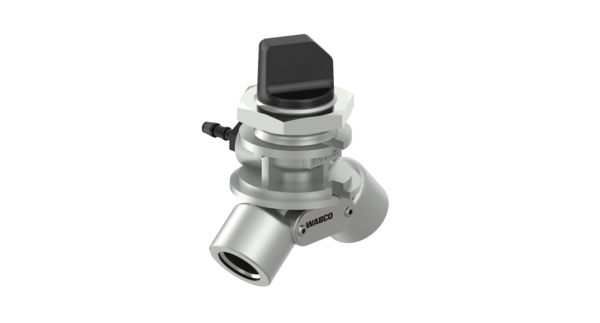

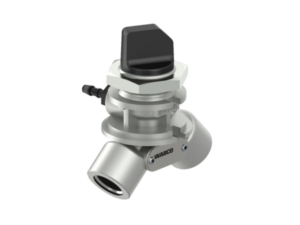

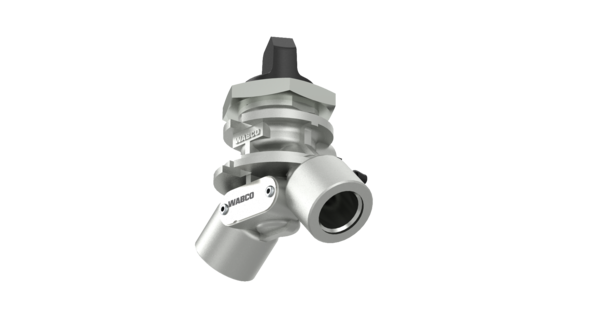

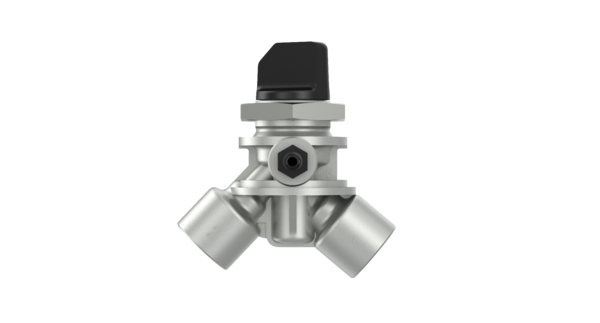

3/2 Directional Control Valve
Part Number: 4630360160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Turn |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 0.275 |
| Color | Green |
| Comments | Actuating knob: black |
| Max. operating pressure | 10.0 bar |
| Mounting | M28 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 3 | Tappet |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Type | 3/2 |
| GTIN | 04057875212720 |
| Size (mm x mm x mm) | 61 x 75 x 60 |
| UPC | 193133442455 |
| Weight (kg) | 0.25 |
| Weight (lb) | 0.5512 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518851 |
| FAYMONVILLE | 13181 |
| FELDBINDER | 011476 |
| FRUEHAUF | 3766-015 |
| KENWORTH | S4630360160 |
| KRONE | 5809498 |
| KRONE | 5058094981 |
| KRONE | 505809498 |
| KÄSSBOHRER | 21151103120 |
| MAN | N2521706021 |
| MERITOR | S4630360160 |
| NIPPON TREX | 910015-00021 |
| ORTHAUS | 463064 |
| PACCAR | 1518851 |
| PETERBILT | S4630360160 |
| SCANIA | 1934920 |
| SCHMITZ CARGOBULL | 051265 |
| SCHMITZ CARGOBULL | SO51265 |
| SCHMITZ CARGOBULL | 51265 |
| SCHMITZ CARGOBULL | 114076 |
| SCHMITZ CARGOBULL | S051265 |
| SCHWARZMÜLLER | 36513 |
| SHOWA | A8188-011300 |
| TIRSAN | 21151103120 |
| TOHO | T421-130 |
| VAN HOOL | 10782273 |
| VOLVO | 20453076 |
