Description

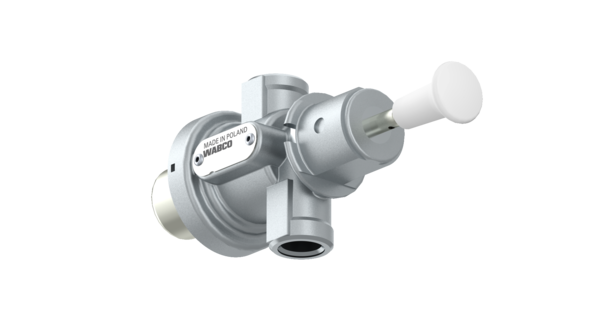

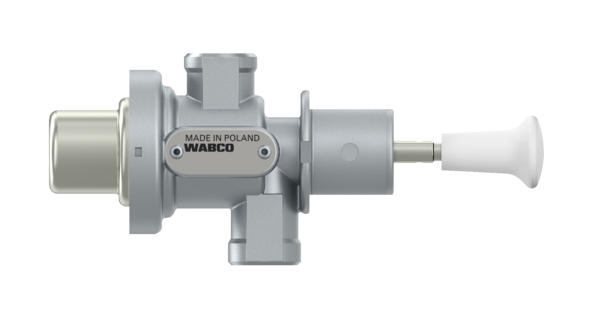

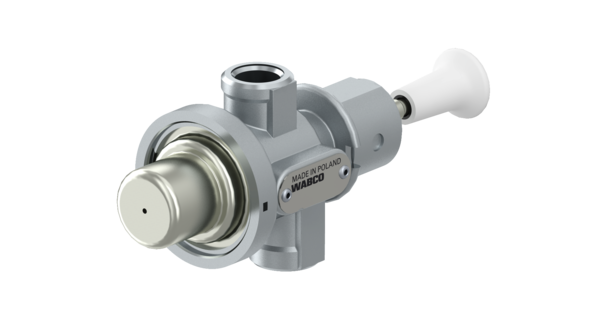

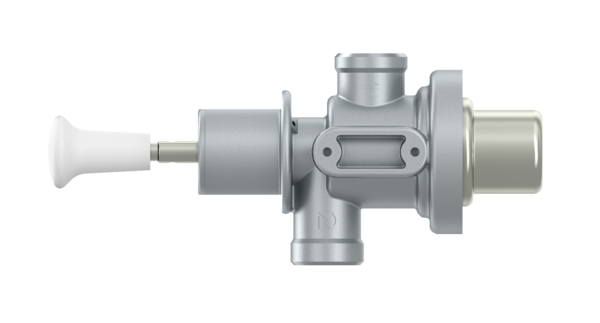

3/2 Directional Control Valve
Part Number: 4342050270
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 5 mm |
| Actuation | Push (knob) |
| Calculated Volume (dm³) | 0.34628 |
| Comments | No locking function (kNob) |
| Exhaust | Via hole in body |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 5.0 mm |
| Port thread 1 | M14 x 1.5 |
| Port thread 2 | M14 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875176596 |
| Size (mm x mm x mm) | 135 x 57 x 45 |
| Weight (kg) | 0.328 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3454401630 |
| DAEWOO | 34544 01630 |
| DAF | 1195522 |
| DAF | 273032 |
| EVOBUS | 8285032000 |
| EVOBUS | A6294290044 |
| IVECO | 04731301 |
| IVECO | 4731301 |
| MAN | 81521706026 |
| MERCEDES-BENZ | A6294290044 |
| MERCEDES-BENZ | 6294290044 |
| NEOPLAN | 81521706026 |
| VDL | 41195522 |
