Description

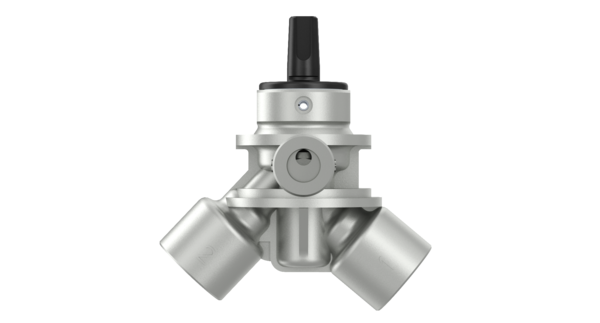

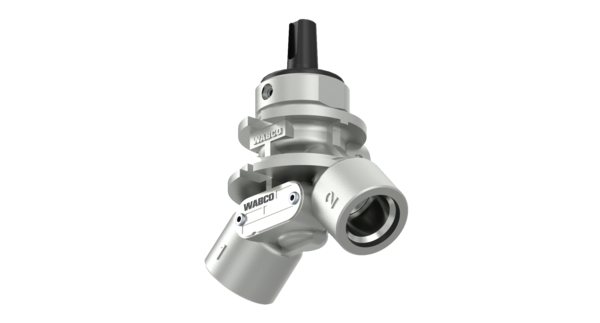

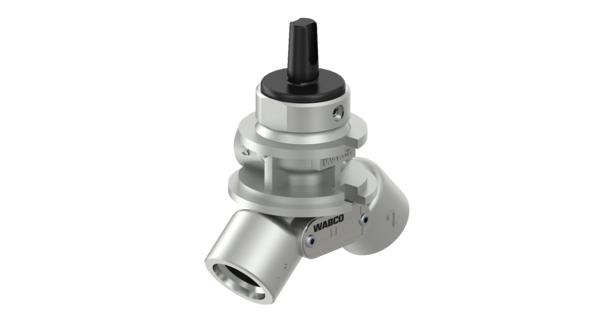

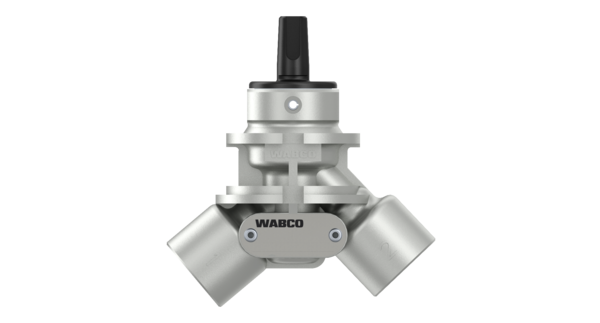

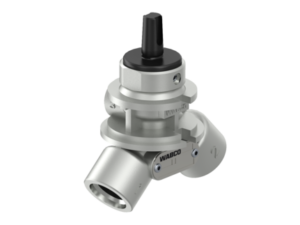

3/2 Directional Control Valve
Part Number: 4630360100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Turn |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 0.21637 |
| Color | Black/Black |
| Comments | Actuating knob: black |
| Max. operating pressure | 10.0 bar |
| Mounting | M28 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 JED-388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Port thread 3 | M10 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Type | 3/2 |
| GTIN | 04057875212690 |
| Size (mm x mm x mm) | 78 x 73 x 38 |
| UPC | 193133442448 |
| Weight (kg) | 0.224 |
| Weight (lb) | 0.49383 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518084 |
| EVOBUS | A0039977736 |
| FREIGHTLINER | TDAS4630360100 |
| KENWORTH | S4630360100 |
| MACK | 6300-4630360100 |
| MERCEDES-BENZ | 0039977736 |
| MERCEDES-BENZ | A0039977736 |
| MERITOR | S4630360100 |
| PETERBILT | S4630360100 |
| VOLVO | WAB4630360100 |
