Description

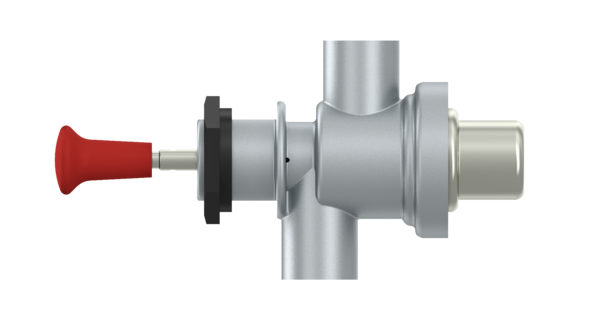

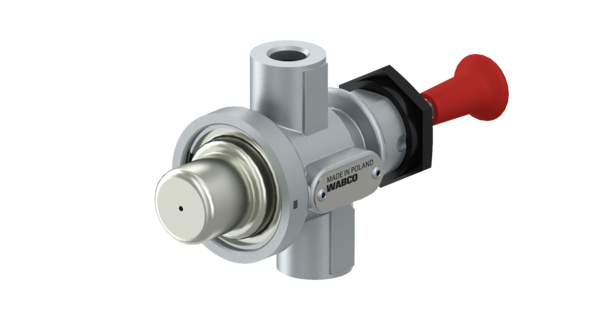

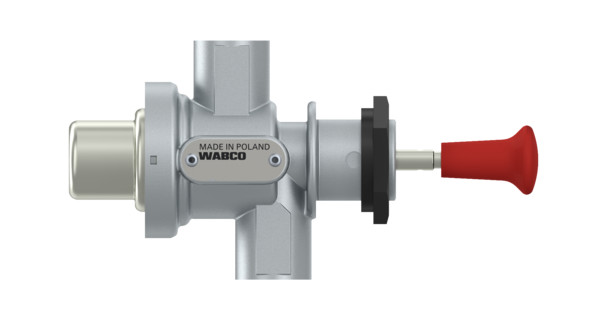

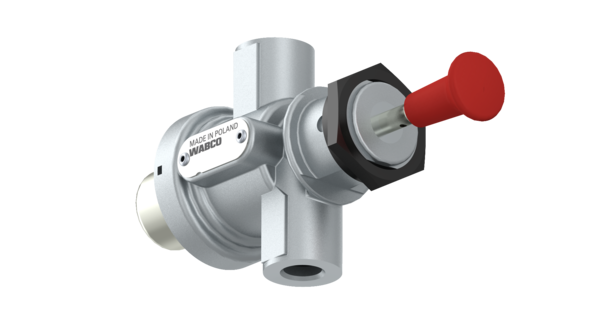

3/2 Directional Control Valve
Part Number: 4342050300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 5 mm |
| Actuation | Push (knob) |
| Calculated Volume (dm³) | 0.41607 |
| Comments | No locking function (M6) |
| Exhaust | Via hole in body |
| Max. operating pressure | 11.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 5.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875176619 |
| Size (mm x mm x mm) | 69x134x45 |
| Weight (kg) | 0.408 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRISBUS | 98413418 |
| IVECO | 98413418 |
