Description

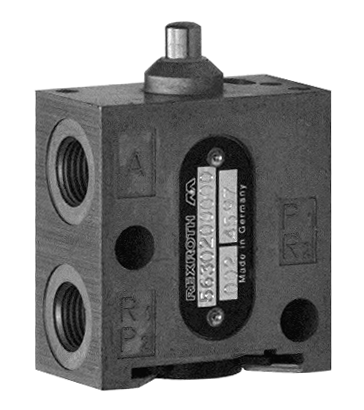

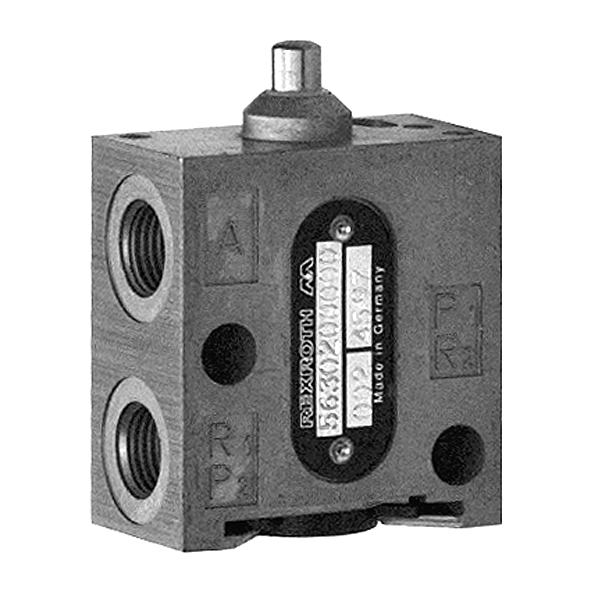

3/2 Directional Control Valve
Part Number: 5630200000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 4 mm |
| Actuation | Push |
| Calculated Volume (dm³) | 0.04576 |
| Comments | No locking function |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x 6.3 mm |
| Nominal diameter | 4.0 mm |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Type | 3/2 |
| GTIN | 04057875230236 |
| Size (mm x mm x mm) | 40 x 52 x 22 |
| UPC | 193133320302 |
| Weight (kg) | 0.159 |
| Weight (lb) | 0.35053 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518137 |
| FENDT | F198881020010 |
| MAN | 81521856048 |
| MAN | 81521859048 |
| MAN | 81521856028 |
| NEOPLAN | 81521856048 |
| SCANIA | 1935141 |
