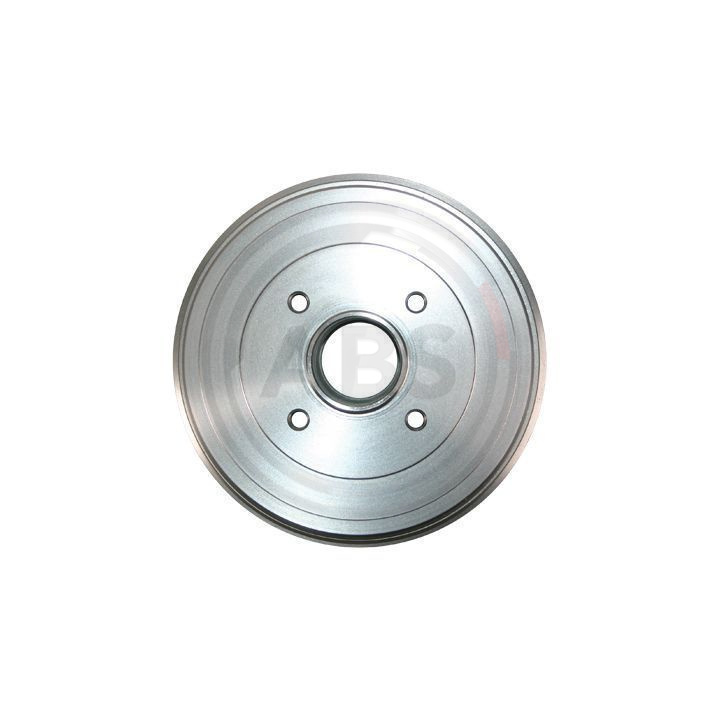

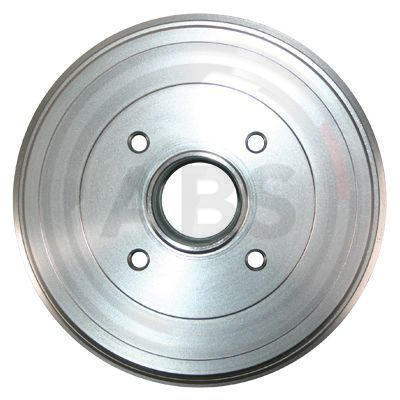

Description
Specifications
| Inner brake drum diameter | 203 mm |
| Inner brake drum height | 51 mm |
| Total brake drum height | 76 mm |
| Rim Hole Number | 4 |
| Wheel Hub Diameter | 52 mm |
| Outer brake drum diameter | 237 mm |
| Bolt Hole Circle Ø | 100 mm |
| Wheel Hub Diameter 2 | 49 mm |
| Weight | 6.175 kg |
| Country of Origin | Netherlands |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| DACIA | 8200 276 843 |
| RENAULT | 7701 202 245, 8200 276 843 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| ABE | C6R023ABE |
| APEC | DRM9944 |

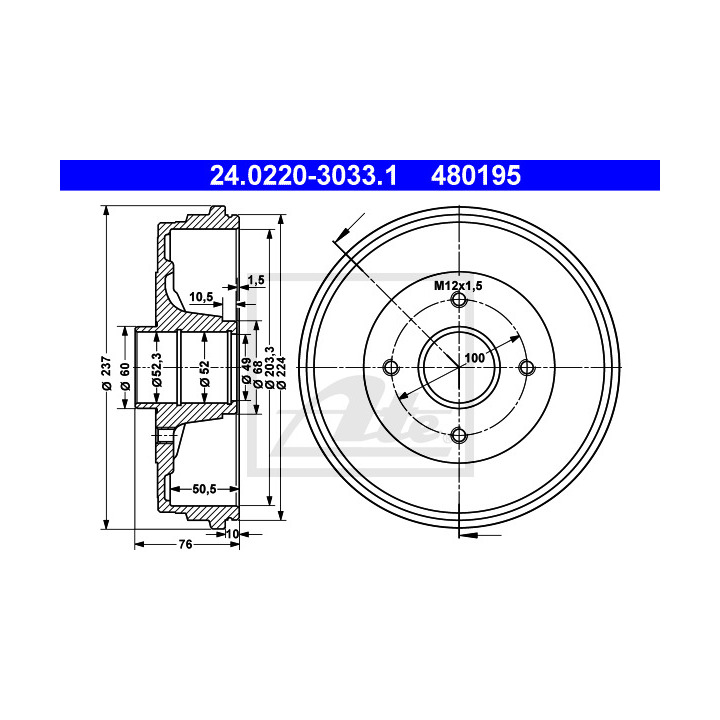

| ATE | 24.0220-3033.1, 480195 |
| BLUE PRINT | ADBP470005 |
| BORG & BECK | BBR7205 |
| BRADI | 14.7257.20 |

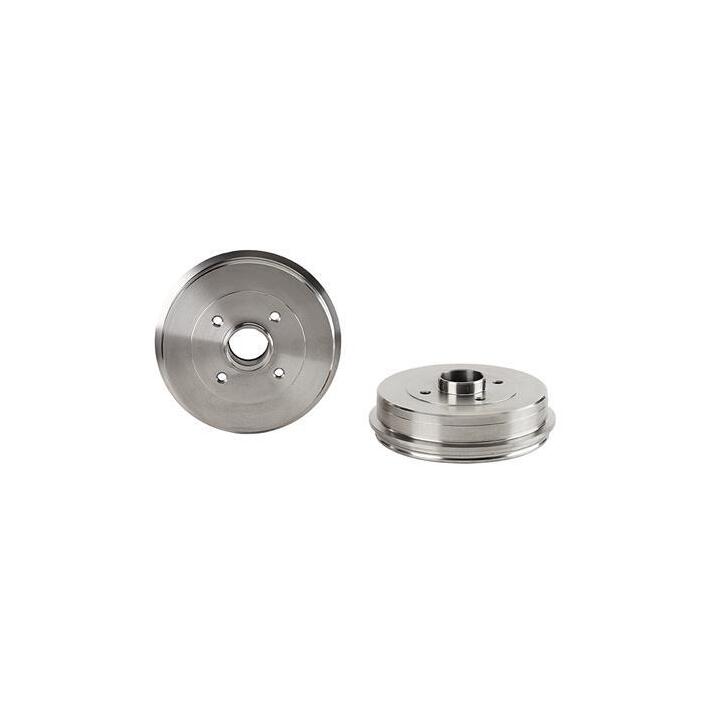

| BREMBO | 14.7257.20, H 68 002 |
| BREMSI | CR5652 |
| Brake ENGINEERING | DR962437 |
| DACIA | 8200 276 843 |
| DELPHI | 610 |
| FEBI BILSTEIN | 176963 |
| FTE | 9190015 |
| HAVAM | HP 66640 |
| HELLA | 8DT 355 302-761 |
| JAPANPARTS | TA-0700, TA-0700C, TA0700JM |
| JAPKO | 56007, 560700, 560700C |
| JURID | 329732J |
| LPR | 7D0652, OPK092 |
| MASTER-SPORT GERMANY | 24022030331-PCS-MS, 24022030331-SET-MS |
| METELLI | 18-0382, 18-0382K |
| MOTAQUIP | VBE701 |
| MOTRIO | 8671013574 |
| NK | 253927 |
| National | NDR344 |
| OMC | 100561, 100562 |
| PAGID | 61323 |
| PEMEBLA | JAPTA-007C, JAPTA-0700, JAPTA007JM, JAPTA0700JM |
| REMSA | 3002.00, 7094.00, 7103.00 |
| RENAULT | 7701 202 245, 8200 276 843 |
| RIDEX | 123B0255 |
| ROADHOUSE | 3002.00, 7094.00, 7103.00 |
| STOP | 391003S |
| TEXTAR | 94032300, 94041400 |

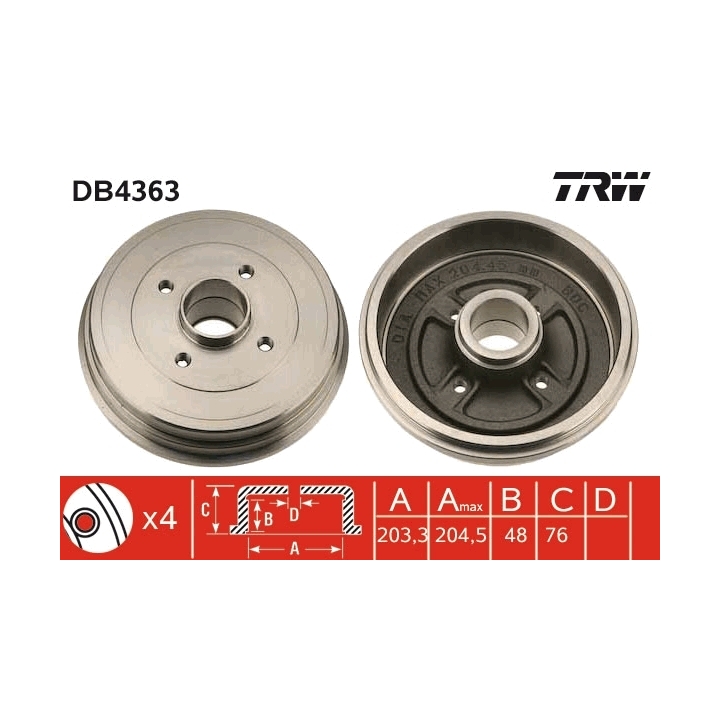

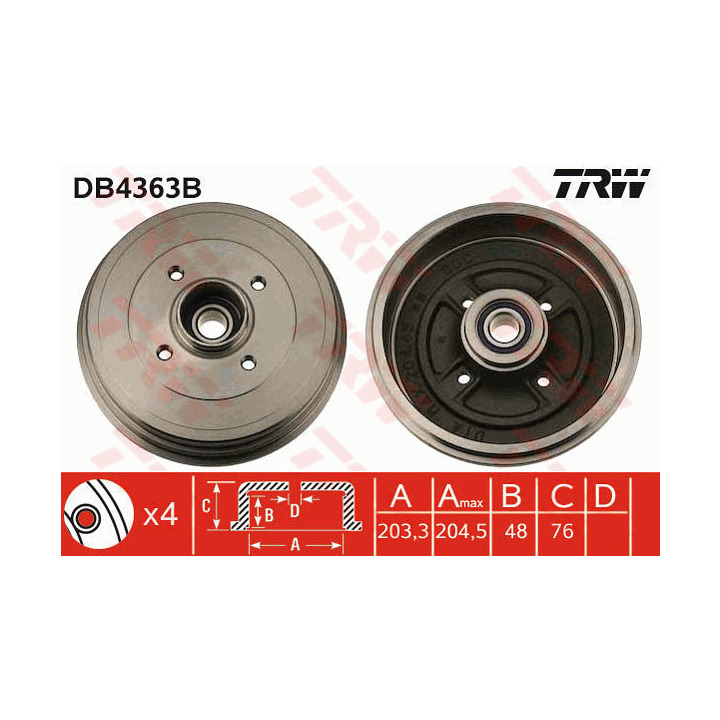

| TRW | DB4363, DB4363B, DB4373 |
| VALEO | 237034, 553013 |
| VEMA | 801490 |
| WOKING | 3002.00, B7094.00, B7103.00 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| LOGAN EXPRESS (FS_) 1.5 dCi (FS0K) | 2009-03 – … | 50 | 68 | 1461 | |
| LOGAN (LS_) 1.5 dCi (LS0J, LS0Y) | 2005-09 – … | 48 | 65 | 1461 | |
| LOGAN (LS_) 1.5 dCi (LS0K) | 2006-01 – 2012-12 | 50 | 68 | 1461 | |
| LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,… | 2006-02 – … | 77 | 105 | 1598 | |
| LOGAN (LS_) 1.6 (LS0B, LS0D, LS0F, LS0H) | 2004-09 – … | 64 | 87 | 1598 | |
| LOGAN (LS_) 1.4 (LS0A, LS0C, LS0E, LS0G) | 2004-09 – … | 55 | 75 | 1390 | |
| LOGAN (LS_) 1.4 MPI LPG (LS0C) | 2006-02 – 2012-12 | 55 | 75 | 1390 | |
| 4 (112_) 0.7 | 1962-04 – 1971-04 | 15 | 746 | ||
| 4 (112_) 0.8 (1123) | 1962-10 – 1983-09 | 19 | 26 | 845 | |
| 4 (112_) 0.8 (1123) | 1983-10 – 1988-10 | 21 | 29 | 845 | |
| 4 (112_) 0.8 | 1981-01 – 1982-09 | 20 | 782 | ||
| 4 (112_) 1.1 | 1978-02 – 1984-03 | 33 | 1108 | ||
| CLIO III Grandtour (KR0/1_) 1.5 dCi (KR0H, KR1S) | 2008-02 – 2012-12 | 78 | 106 | 1461 | |
| CLIO II (BB_, CB_) 1.4 16V (B/CB0P, BB13) | 2000-02 – 2008-07 | 72 | 98 | 1390 | |
| CLIO II (BB_, CB_) 1.5 dCi (B/C2J) | 2004-08 – 2012-12 | 50 | 68 | 1461 | |
| CLIO II (BB_, CB_) 1.5 dCi | 2001-06 – 2006-12 | 42 | 57 | 1461 | |
| CLIO II (BB_, CB_) 1.5 dCi (B/CB07) | 2001-06 – 2009-07 | 48 | 65 | 1461 | |
| CLIO II (BB_, CB_) 1.5 dCi (B/CB3M) | 2005-06 – 2010-12 | 47 | 64 | 1461 | |
| CLIO II (BB_, CB_) 1.5 dCi (BB3N, CB3N) | 2007-02 – 2009-06 | 62 | 84 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V | 2010-09 – 2014-12 | 76 | 103 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V (BR02, BR0J, BR11, CR02, CR0J, CR11) | 2005-06 – 2014-12 | 55 | 75 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V | 2005-06 – 2014-12 | 58 | 78 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V (BR0P, CR0P) | 2007-05 – 2014-12 | 74 | 101 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V (BR0R, BR1D, BR1L, CR0R) | 2005-06 – 2014-12 | 48 | 65 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.2 16V Hi-Flex (BR1U, CR1U) | 2008-07 – 2014-12 | 55 | 75 | 1149 | |
| CLIO III (BR0/1, CR0/1) 1.4 16V | 2005-06 – 2012-12 | 72 | 98 | 1390 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi | 2005-06 – 2012-12 | 47 | 64 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi | 2005-05 – 2010-11 | 48 | 65 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi | 2010-08 – 2014-12 | 55 | 75 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi | 2010-08 – 2014-12 | 65 | 88 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi (BR0H, CR0H, CR1S, BR1S) | 2005-06 – 2014-12 | 78 | 106 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi (BR17, CR17) | 2005-06 – 2012-12 | 63 | 86 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi (BR1C, CR1C) | 2005-06 – 2012-12 | 76 | 103 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.5 dCi (C/BR0G, C/BR1G) | 2005-06 – 2012-12 | 50 | 68 | 1461 | |
| CLIO III (BR0/1, CR0/1) 1.6 16V (BR09, BR0T, CR09, CR0T) | 2005-06 – 2007-10 | 65 | 88 | 1598 | |
| CLIO III (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,… | 2005-06 – 2014-12 | 82 | 112 | 1598 | |
| CLIO III (BR0/1, CR0/1) 1.6 16V GT (BR10, CR10) | 2009-06 – 2014-12 | 94 | 128 | 1598 | |
| CLIO III (BR0/1, CR0/1) 2.0 16V (BR0C, BR0K, CR0C, CR0K) | 2006-09 – 2014-12 | 102 | 139 | 1997 | |
| CLIO III (BR0/1, CR0/1) 2.0 16V Sport (CR0N, CR1P) | 2006-02 – 2012-12 | 145 | 197 | 1998 | |
| CLIO III (BR0/1, CR0/1) 2.0 16V Sport | 2008-09 – 2014-12 | 148 | 200 | 1998 | |
| CLIO III Hatchback Van (SB_, SR_) 1.5 dCi | 2005-10 – 2010-07 | 50 | 1461 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.5 dCi | 2005-10 – 2007-10 | 78 | 1461 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.5 dCi | 2005-06 – 2010-07 | 63 | 1461 | ||
| CLIO II Hatchback Van (SB0/1/2_) 1.2 (SB0A, SB0F, SB1K, SB2D) | 1998-09 – … | 43 | 1149 | ||
| CLIO III (BR0/1, CR0/1) 1.2 (BR01, BR03, BR0E, CR0E) | 2005-10 – 2012-12 | 57 | 1149 | ||
| CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi | 2004-04 – … | 50 | 1461 | ||
| CLIO III (BR0/1, CR0/1) 1.2 16V | 2006-06 – 2010-08 | 43 | 1149 | ||
| CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi | 2003-11 – … | 60 | 1461 | ||
| CLIO III (BR0/1, CR0/1) 1.5 dCi | 2007-11 – 2012-12 | 60 | 1461 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.2 (SR0J) | 2005-11 – 2014-12 | 55 | 1149 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.2 (SR0P) | 2007-11 – 2011-12 | 74 | 1149 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.5 dCi (SR1H) | 2010-08 – 2014-12 | 65 | 1461 | ||
| CLIO III Hatchback Van (SB_, SR_) 1.5 dCi | 2010-08 – 2014-12 | 55 | 1461 | ||
| CLIO II (BB_, CB_) 1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,… | 2001-06 – 2016-08 | 55 | 75 | 1149 | |
| CLIO III Hatchback Van (SB_, SR_) 1.2 Hi-Flex (SR1U) | 2007-11 – 2009-12 | 58 | 1149 | ||
| CLIO III (BR0/1, CR0/1) 1.2 Ethanol (CR1U, BR1U) | 2008-07 – 2012-12 | 55 | 75 | 1149 | |
| LOGAN I Estate (KS_) 1.6 (KS0L, KS0M, KS0P, KS1S) | 2007-04 – … | 77 | 105 | 1598 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 | 2011-04 – 2013-12 | 76 | 103 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 (FP0C, FP0K, FP0P) | 2005-05 – 2007-10 | 48 | 65 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 (JP0S) | 2004-12 – 2013-12 | 58 | 78 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 16V (JP0W) | 2007-05 – 2013-12 | 74 | 101 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 16V Hi-Flex | 2008-10 – 2013-12 | 55 | 75 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.2 (JP0C, JP0K, FP0C, FP0K, FP0P, JP0P, JP0T) | 2004-12 – 2013-12 | 55 | 75 | 1149 | |
| MODUS / GRAND MODUS (F/JP0_) 1.4 (JP01, JP0J) | 2004-12 – 2013-12 | 72 | 98 | 1390 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi 75 | 2010-10 – 2013-12 | 55 | 75 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0D, JP0D) | 2004-09 – 2007-10 | 60 | 82 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0E, JP0E) | 2004-12 – 2013-12 | 48 | 65 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0G, JP0G) | 2004-12 – 2013-12 | 50 | 68 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.6 (JP0L, JP0V) | 2004-12 – 2007-10 | 65 | 88 | 1598 | |
| MODUS / GRAND MODUS (F/JP0_) 1.6 (JP03, JP0B, JP0U, JP0Y, JP1G) | 2004-12 – 2013-12 | 82 | 112 | 1598 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0F, JP0F) | 2004-12 – 2013-12 | 63 | 86 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi 90 | 2010-10 – 2013-12 | 65 | 88 | 1461 | |
| MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (JP0G, JP0H) | 2005-05 – 2013-12 | 78 | 106 | 1461 | |
| THALIA I (LB_) 1.4 16V | 2000-08 – 2009-02 | 72 | 98 | 1390 | |
| THALIA I (LB_) 1.5 dCi | 2002-04 – 2009-02 | 48 | 65 | 1461 | |
| THALIA II (LU_) 1.2 16V (LU2V) | 2008-09 – 2014-06 | 55 | 1149 | ||
| THALIA II (LU_) 1.5 dCi | 2009-01 – 2014-06 | 48 | 1461 | ||
| THALIA I (LB_) 1.6 16V | 2000-07 – 2009-02 | 79 | 1598 | ||
| THALIA I (LB_) 1.6 | 2004-01 – 2008-12 | 82 | 1598 | ||
| THALIA II (LU_) 1.4 | 2008-09 – 2014-06 | 55 | 1390 | ||
| THALIA II (LU_) 1.5 dCi | 2008-09 – 2012-12 | 62 | 85 | 1461 | |
| THALIA I (LB_) 1.4 (LB17) | 2000-05 – 2009-02 | 72 | 1390 | ||
| TWINGO I Hatchback Van (S06_) 1.2 (S066, S068) | 1996-05 – 2004-08 | 43 | 1149 | ||
| TWINGO I Hatchback Van (S06_) 1.2 | 2001-01 – 2012-06 | 55 | 1149 | ||
| TWINGO I (C06_) 1.2 16V (C060) | 2004-08 – 2007-06 | 44 | 60 | 1149 | |
| TWINGO I (C06_) 1.2 16V (C06C, C06D, C06K) | 2001-01 – 2007-06 | 55 | 75 | 1149 | |
| TWINGO I (C06_) 1.2 (C066, C068) | 1996-05 – 2007-06 | 43 | 58 | 1149 | |
| TWINGO II (CN0_) 1.2 16V (CN04, CN0B) | 2007-03 – 2014-09 | 55 | 75 | 1149 | |
| TWINGO I (C06_) 1.2 LPG | 2003-10 – 2007-06 | 44 | 60 | 1149 |
