Description
Specifications
| Inner brake drum diameter | 180 mm |
| Inner brake drum height | 41 mm |
| Total brake drum height | 82 mm |
| Rim Hole Number | 4 |
| Wheel Hub Diameter | 47 mm |
| Outer brake drum diameter | 208 mm |
| Bolt Hole Circle Ø | 100 mm |
| Wheel Hub Diameter 2 | 52 mm |
| Weight | 5.481 kg |
| Country of Origin | Netherlands |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| SUZUKI | 43511-75F02 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|

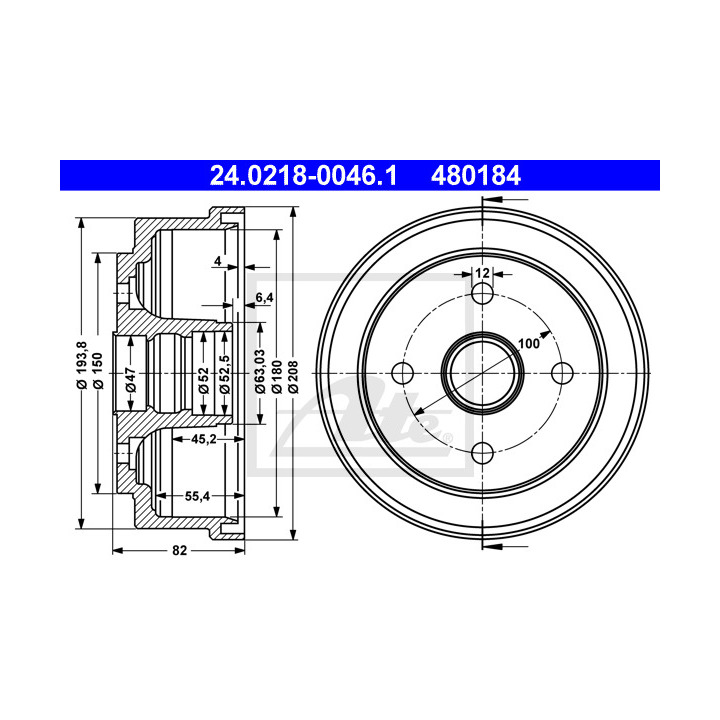

| ATE | 24.0218-0046.1, 480184 |
| BRADI | 14.A690.10 |
| BRECO | BT 1690 |

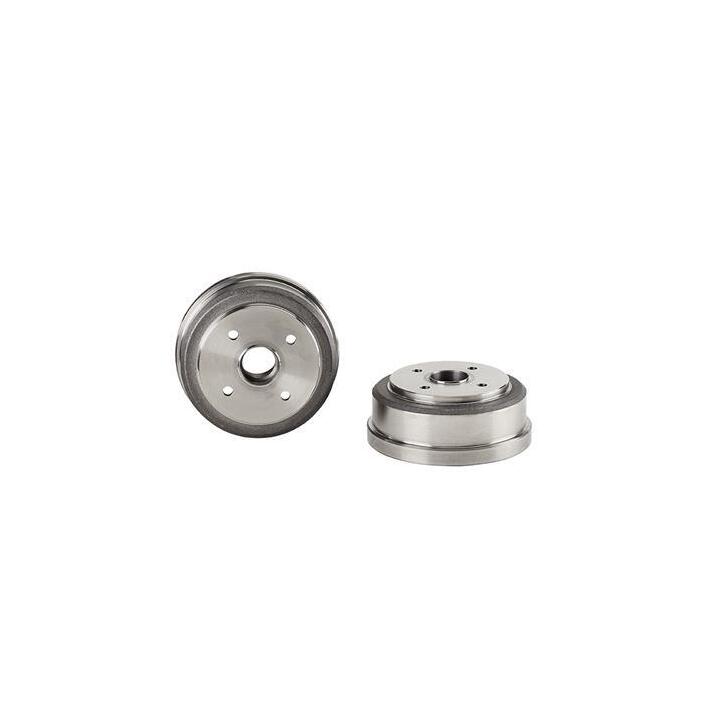

| BREMBO | 14.A690.10 |
| BREMSI | CR5815 |
| Brake ENGINEERING | DR962436 |
| DELPHI | BF507 |

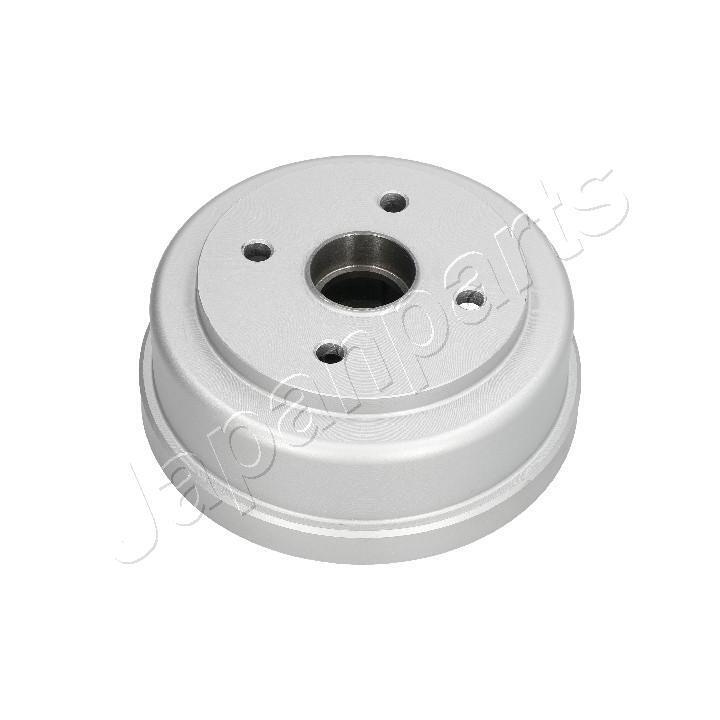

| JAPANPARTS | TA-814, TA-814C, TA814JM |
| JAPKO | 56814, 56814C |
| KAVO PARTS | BD-8871 |
| KAWE | 7D0659 |
| LPR | 7D0659 |
| MINTEX | MBD291 |
| NK | 255209 |
| NPS | S340I07 |
| OMC | 100875 |
| OPTIMAL | BT-2200 |
| PEMEBLA | JAPTA-814, JAPTA-814C, JAPTA814JM |
| SUZUKI | 43511-75F02 |
| TEXTAR | 94032400 |
| TRISCAN | 8120 69215 |

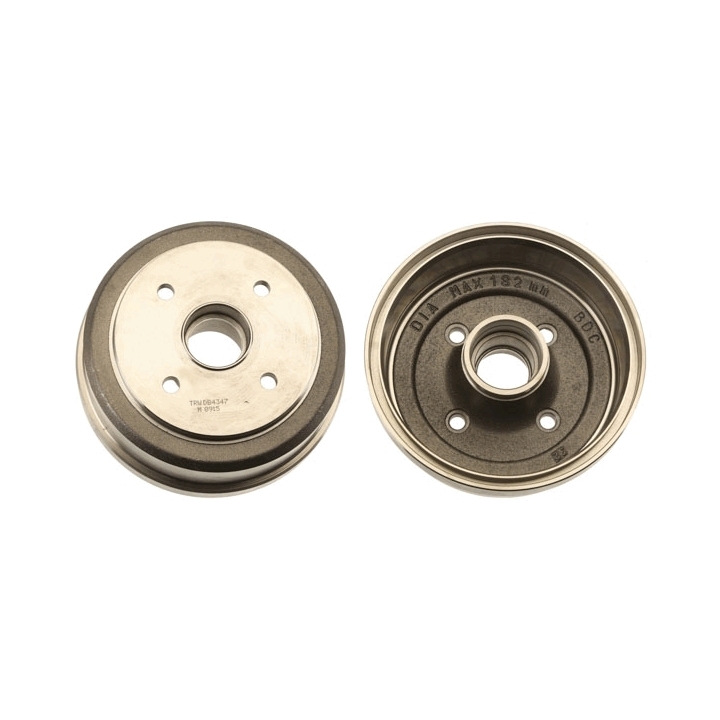

| TRW | DB4347 |
| VEMA | 801496 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| WAGON R+ Hatchback (EM) 1.0 (RC410, SR410, SR412) | 1998-02 – 2000-05 | 48 | 65 | 996 | |
| WAGON R+ Hatchback (EM) 1.2 (SR412) | 1998-02 – 2000-05 | 51 | 69 | 1171 | |
| WAGON R+ Hatchback (EM) 1.2 4WD (SR412) | 1998-02 – 2000-05 | 51 | 69 | 1171 |
