Description
Specifications

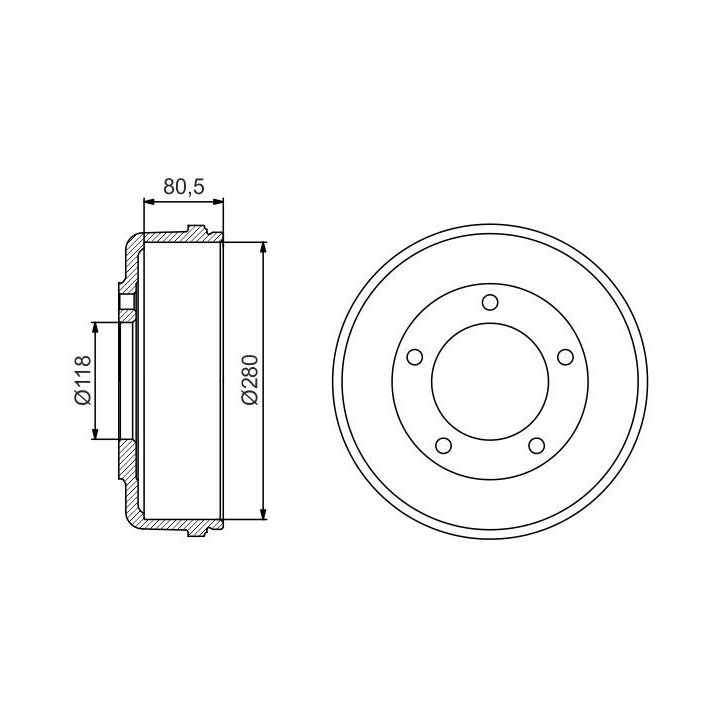

| Inner brake drum diameter | 280 mm |
| Inner brake drum height | 81 mm |
| Total brake drum height | 105 mm |
| Rim Hole Number | 5 |
| Wheel Hub Diameter | 118 mm |
| Outer brake drum diameter | 314 mm |
| Bolt Hole Circle Ø | 160 mm |
| Weight | 12.875 kg |
| Country of Origin | Netherlands |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| FORD | 4041429, 4078769, 4446218, YC1W1126DB, YC1W1126DC, YC1W1126DD |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| ABE | C6G023ABE |
| APEC | BDR9009, DRM9919 |

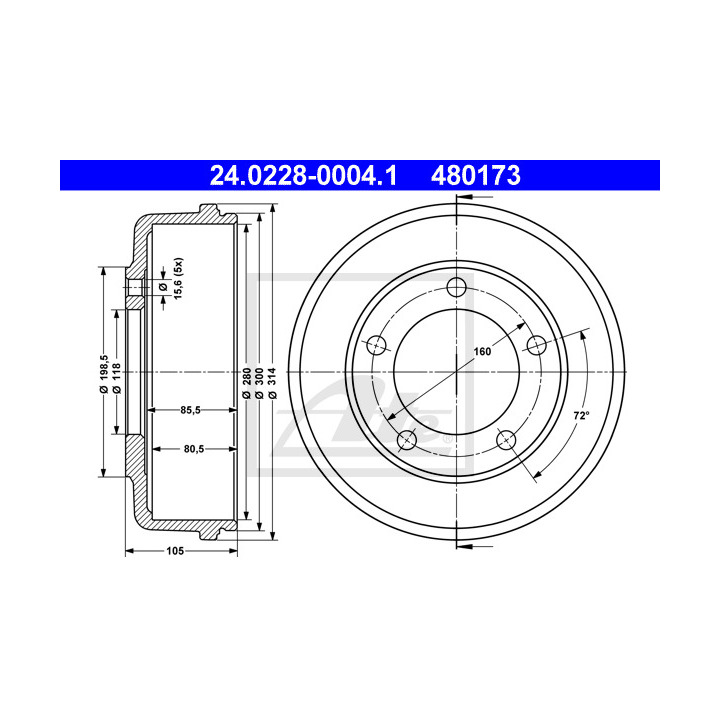

| ATE | 24.0228-0004.1, 480173 |
| BLUE PRINT | ADBP470007 |
| BORG & BECK | BBR7186 |
| BOSCH | 0 986 477 203 |
| BRADI | 14.A692.10 |
| BRECO | BT 1692 |
| BREMBO | 14.A692.10, 14.C017.10 |
| BREMSI | CR5646 |
| Brake ENGINEERING | DR962364 |
| DELPHI | BF478 |
| DENCKERMANN | B140001 |
| FEBI BILSTEIN | 171076 |
| FERODO | FDR329741, FDR329800 |
| FORD | 4041429, 4078769, 4446218, YC1W1126DB, YC1W1126DC, YC1W1126DD |
| HAVAM | HP66429 |
| HELLA | 8DT 355 300-451 |
| JAPANPARTS | TA-0315, TA-0315C, TA0315JM |
| JAPKO | 560315, 560315C |
| JP GROUP | 1563500400, 1563500409 |
| JURID | 329741J |
| KAWE | 7D0646 |
| LPR | 7D0646 |
| MAXGEAR | 19-1031 |
| METELLI | 18-0367 |
| MEYLE | 715 523 7041 |
| MINTEX | MBD057 |
| MOTAQUIP | VBE686 |
| NK | 262511, 262513 |
| National | NDR331 |
| OMC | 100878 |
| OPTIMAL | BT-1980 |
| PAGID | 61246 |
| PEMEBLA | BNXBDM1062, JAPTA-0315, JAPTA-0315C, JAPTA0315JM |
| QUINTON HAZELL | BDR628 |
| REMSA | 7099.00 |
| RIDEX | 123B0108 |
| ROADHOUSE | 7099.00 |
| STARLINE | PB 6408 |
| SWAG | 33 10 0698 |
| TEXTAR | 94024600 |
| TRISCAN | 8120 16225, 8120 16233 |
| TRW | DB4316 |
| VALEO | 237048 |
| VEMA | 801484 |
| WOKING | B7099.00 |

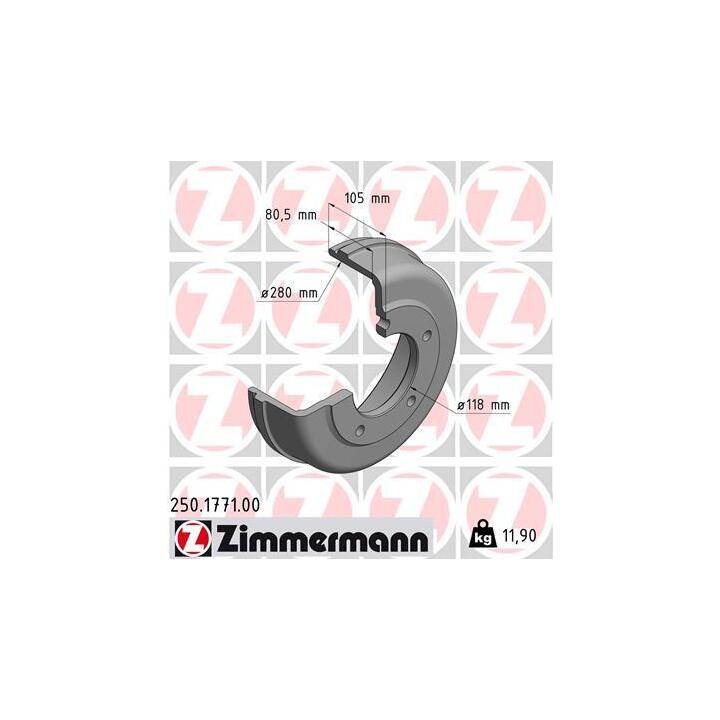

| ZIMMERMANN | 250.1771.00 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi | 2004-03 – 2006-05 | 101 | 137 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi | 2004-03 – 2006-05 | 101 | 137 | 2402 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_, F_B_, F_A_) | 2001-07 – 2006-05 | 92 | 125 | 2402 | |
| TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) | 2000-08 – 2006-05 | 55 | 75 | 1998 | |
| TRANSIT Van (FA_ _) 2.3 16V RWD (FAA_, FAB_, FAC_) | 2001-04 – 2006-05 | 107 | 146 | 2295 | |
| TRANSIT Van (FA_ _) 2.4 DI (FAA_, FAB_, FAC_, FAD_) | 2000-01 – 2006-05 | 66 | 90 | 2402 | |
| TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) | 2000-01 – 2006-05 | 55 | 75 | 2402 | |
| TRANSIT Van (FA_ _) 2.4 TDE | 2004-03 – 2006-05 | 85 | 115 | 2402 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.3 16V RWD (F_B_, F_C_, F_A_) | 2000-08 – 2006-05 | 107 | 146 | 2295 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_, F_C_, F_A_) | 2000-01 – 2006-05 | 66 | 90 | 2402 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_) | 2000-01 – 2006-05 | 55 | 75 | 2402 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_, F_A_) | 2000-01 – 2006-05 | 88 | 120 | 2402 | |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE | 2004-03 – 2006-05 | 85 | 115 | 2402 | |
| TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) | 2000-01 – 2006-05 | 88 | 120 | 2402 | |
| TRANSIT Van (FA_ _) 2.4 TDCi | 2004-03 – 2006-05 | 101 | 137 | 2402 | |
| TRANSIT Van (FA_ _) 2.4 TDE | 2001-07 – 2006-05 | 92 | 125 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V (F_A_, F_B_, F_C_, F_D_) | 2001-04 – 2006-05 | 107 | 146 | 2295 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 2000-01 – 2006-05 | 66 | 90 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 2000-01 – 2006-05 | 88 | 120 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 2000-01 – 2006-05 | 55 | 75 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE | 2001-07 – 2006-05 | 92 | 125 | 2402 | |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE | 2004-03 – 2006-05 | 85 | 115 | 2402 | |
| TRANSIT Van (FA_ _) 2.3 BiFuel | 2001-03 – 2006-03 | 105 | 2295 | ||
| TRANSIT Van (FA_ _) 2.4 TD | 2000-08 – 2003-08 | 55 | 2402 | ||
| TRANSIT Van (FA_ _) 2.3 | 2001-03 – 2006-03 | 105 | 2295 |
