Description
Specifications
| Fitting Position | Rear Axle |
| Outer brake drum diameter | 268 mm |
| Inner brake drum diameter | 228 mm |
| max. brake drum reboring dimension | 230 mm |
| Inner brake drum height | 48 mm |
| Total brake drum height | 61 mm |
| Bolt Hole Circle Ø | 98 mm |
| Number of Holes | 4 |
| Required quantity | 2 |
| Trade Numbers | MDR0024 |
| Weight | 5.77 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| ALFA ROMEO | 7769850 |
| FIAT | 60810025, 60814839, 7569600, 7769850 |
| LANCIA | 7769850 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| ALFA ROMEO | 7769850 |
| APEC | DRM9523 |
| ATE | 24.0222-8018.1 |

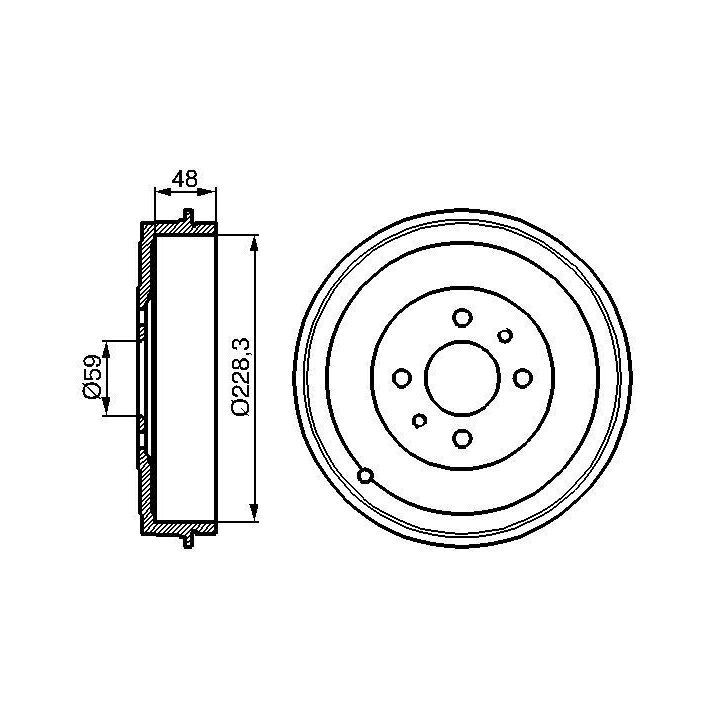

| BOSCH | 0 986 477 088 |

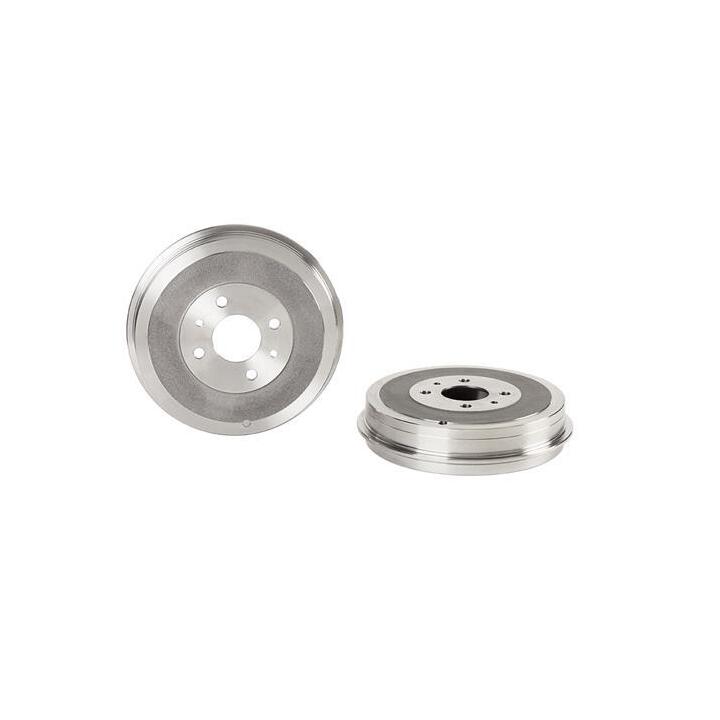

| BREMBO | 14.5102.10, 14.7127.20 |
| DELPHI | BF379 |
| FERODO | FDR329006, FDR329022, FDR329213 |
| FIAT | 60810025, 60814839, 7569600, 7769850 |
| FTE | BT146 |
| HELLA | 8DT 355 300-071 |
| JURID | 329006J, 329022J, 329213J |
| LANCIA | 7769850 |
| LPR | 7D0004, 7D0037, 7D0267 |
| METELLI | 18-0009, 18-0022 |
| NK | 251001 |
| OPTIMAL | BT-0560 |
| TEXTAR | 94014000, 98100 0140 0 1 |
| TRISCAN | 8120 15206, 8120 15208 |

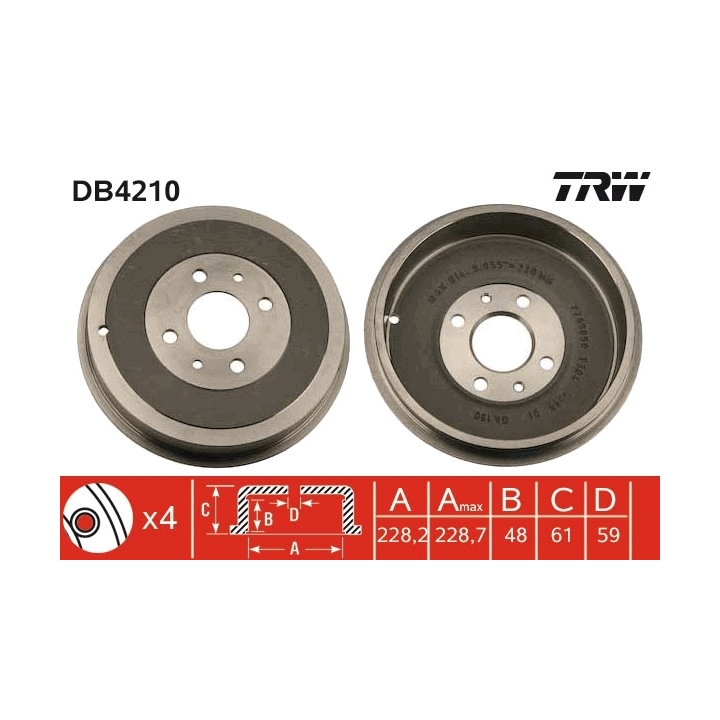

| TRW | DB4210 |
| VALEO | 237037 |
| ZIMMERMANN | 230.1912.20 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| 145 (930_) 1.6 i.e. (930.A2) | 1994-10 – 1996-12 | 76 | 103 | 1596 | |
| 145 (930_) 1.4 i.e. (930.A3) | 1994-07 – 1996-12 | 66 | 90 | 1351 | |
| 145 (930_) 1.9 TD (930.A4) | 1994-10 – 1999-02 | 66 | 90 | 1929 | |
| 146 (930_) 1.9 TD (930.B4A) | 1994-12 – 1999-02 | 66 | 90 | 1929 | |
| 146 (930_) 1.4 i.e. (930.B3) | 1994-12 – 1996-12 | 66 | 90 | 1351 | |
| 146 (930_) 1.6 i.e. (930.B2) | 1994-12 – 1996-12 | 76 | 103 | 1596 | |
| DOBLO MPV (119_, 223_) 1.3 D Multijet | 2005-10 – … | 62 | 84 | 1248 | |
| DOBLO MPV (119_, 223_) 1.6 Natural Power | 2002-09 – … | 76 | 103 | 1596 | |
| DOBLO MPV (119_, 223_) 1.9 D (223AXB1A) | 2001-03 – … | 46 | 63 | 1910 | |
| DOBLO MPV (119_, 223_) 1.9 D Multijet | 2005-10 – … | 88 | 120 | 1910 | |
| DOBLO MPV (119_, 223_) 1.9 JTD | 2003-07 – … | 77 | 105 | 1910 | |
| DOBLO MPV (119_, 223_) 1.9 JTD (223AXE1A) | 2001-10 – … | 74 | 100 | 1910 | |
| DOBLO Box Body/MPV (223_) 1.2 (223ZXA1A) | 2001-03 – 2004-01 | 48 | 65 | 1242 | |
| DOBLO Box Body/MPV (223_) 1.3 D Multijet | 2005-10 – 2010-01 | 55 | 75 | 1248 | |
| DOBLO Box Body/MPV (223_) 1.3 JTD 16V | 2004-05 – 2006-12 | 51 | 70 | 1248 | |
| DOBLO Box Body/MPV (223_) 1.4 | 2005-10 – … | 57 | 77 | 1368 | |
| DOBLO MPV (119_, 223_) 1.2 (223AXA1A) | 2001-03 – … | 48 | 65 | 1242 | |
| DOBLO MPV (119_, 223_) 1.4 | 2005-10 – … | 57 | 77 | 1368 | |
| DOBLO MPV (119_, 223_) 1.6 16V (223AXD1A) | 2001-10 – … | 76 | 103 | 1596 | |
| DOBLO Box Body/MPV (223_) 1.6 16V (223ZXD1A) | 2001-10 – … | 76 | 103 | 1596 | |
| DOBLO Box Body/MPV (223_) 1.6 Natural Power | 2002-09 – … | 76 | 103 | 1596 | |
| DOBLO Box Body/MPV (223_) 1.9 D (223ZXB1A) | 2001-03 – … | 46 | 63 | 1910 | |
| DOBLO Box Body/MPV (223_) 1.9 JTD | 2003-07 – … | 77 | 105 | 1910 | |
| DOBLO Box Body/MPV (223_) 1.9 JTD (223ZXE1A) | 2001-10 – … | 74 | 100 | 1910 | |
| FIORINO Box Body/MPV (146_) 60 1.7 D | 1988-05 – 2000-05 | 44 | 60 | 1698 | |
| FIORINO Box Body/MPV (146_) 60 1.7 D | 1988-05 – 1996-10 | 42 | 57 | 1697 | |
| FIORINO Box Body/MPV (146_) 65 1.7 TD | 1997-01 – 2001-05 | 46 | 63 | 1698 | |
| FIORINO Pick up (146_) 1.7 TD | 1997-01 – 2001-05 | 46 | 63 | 1698 | |
| FIORINO Pick up (146_) 1.7 D | 1993-10 – 1999-10 | 42 | 57 | 1697 | |
| FIORINO Pick up (146_) 1.4 | 1994-05 – 2001-05 | 49 | 67 | 1372 | |
| FIORINO Pick up (146_) 1.6 | 1994-01 – 2001-05 | 55 | 75 | 1581 | |
| FIORINO Pick up (146_) 1.7 D | 1988-05 – 1999-10 | 44 | 60 | 1698 | |
| FIORINO Box Body/MPV (146_) 70 1.3 | 1988-01 – 1994-12 | 49 | 67 | 1301 | |
| FIORINO Box Body/MPV (146_) 70 i.e. 1.4 | 1994-05 – 2001-05 | 49 | 67 | 1372 | |
| FIORINO Box Body/MPV (146_) 75 i.e. 1.6 | 1993-10 – 2001-05 | 55 | 75 | 1581 | |
| FIORINO Box Body/MPV (225_) 1.3 D Multijet (225BXD1A, 225BXB1A, 225BXB11) | 2007-11 – … | 55 | 75 | 1248 | |
| IDEA (350_) 1.9 JTD | 2004-01 – … | 74 | 101 | 1910 | |
| IDEA (350_) 1.3 D Multijet | 2005-10 – … | 66 | 90 | 1248 | |
| LINEA (323_, 110_) 1.3 D Multijet (323AXB11, 323AXB1A) | 2007-06 – … | 66 | 90 | 1248 | |
| LINEA (323_, 110_) 1.4 | 2007-06 – … | 57 | 77 | 1368 | |
| MAREA Weekend (185_) 1.8 115 16V | 1996-09 – 2002-05 | 83 | 113 | 1747 | |
| MAREA Weekend (185_) 1.9 JTD 105 (185BXN1A) | 1998-12 – 2002-12 | 77 | 105 | 1910 | |
| MAREA Weekend (185_) 1.9 JTD 110 (185BXT1A) | 2000-09 – 2002-08 | 81 | 110 | 1910 | |
| MAREA Weekend (185_) 1.9 TD 100 (185BX_) | 1996-09 – 2003-06 | 74 | 100 | 1910 | |
| MAREA Weekend (185_) 1.9 TD 75 | 1996-09 – 2002-05 | 55 | 75 | 1910 | |
| MAREA Weekend (185_) 1.6 100 16V | 1996-09 – 2002-05 | 76 | 103 | 1581 | |
| MAREA (185_) 1.6 | 2000-09 – 2002-08 | 76 | 1596 | ||
| MULTIPLA (186_) 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 2000-09 – 2010-06 | 76 | 103 | 1596 | |
| MULTIPLA (186_) 1.6 16V (186AGB1A) | 2002-04 – 2010-06 | 70 | 95 | 1596 | |
| MULTIPLA (186_) 1.6 16V Bipower (186AXC1A) | 2001-10 – 2010-06 | 76 | 103 | 1596 | |
| MULTIPLA (186_) 1.9 JTD 105 (186AXB1A) | 1999-04 – 2010-06 | 77 | 105 | 1910 | |
| MULTIPLA (186_) 1.9 JTD 110 | 2001-03 – 2002-07 | 81 | 110 | 1910 | |
| MULTIPLA (186_) 1.9 JTD 115 | 2002-07 – 2010-06 | 85 | 115 | 1910 | |
| MULTIPLA (186_) 1.9 JTD (186AXE1A) | 2002-04 – 2010-06 | 88 | 120 | 1910 | |
| MULTIPLA (186_) 1.6 100 16V (186AXA1A) | 1999-04 – 2010-06 | 76 | 103 | 1581 | |
| MULTIPLA (186_) 1.6 16V Bipower (186AMB1A) | 1999-04 – 2010-06 | 76 | 103 | 1581 | |
| MULTIPLA (186_) 1.6 Blupower (186AMA1A) | 1999-04 – 2004-09 | 70 | 95 | 1581 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DYA1A, 178DXS1A) | 1997-07 – 2004-10 | 44 | 60 | 1242 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A) | 1996-06 – 2001-02 | 74 | 100 | 1581 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V | 2001-02 – 2012-01 | 76 | 103 | 1596 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.7 TD | 1996-04 – 2001-03 | 51 | 70 | 1698 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 | 1996-04 – 2004-02 | 54 | 73 | 1242 | |
| PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.9 D | 2001-03 – … | 46 | 63 | 1910 | |
| SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | 1998-09 – 2002-12 | 54 | 1242 | ||
| SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | 2001-09 – 2012-12 | 44 | 1242 | ||
| STRADA Pickup (178_, 278_) 1.2 | 1999-06 – 2006-12 | 54 | 73 | 1242 | |
| STRADA Pickup (178_, 278_) 1.2 | 2003-04 – … | 44 | 60 | 1242 | |
| STRADA Pickup (178_, 278_) 1.3 D Multijet | 2006-05 – … | 62 | 85 | 1248 | |
| STRADA Pickup (178_, 278_) 1.7 TD | 1999-06 – 2006-12 | 51 | 69 | 1698 | |
| STRADA Pickup (178_, 278_) 1.9 D | 2000-12 – … | 46 | 63 | 1910 | |
| STRADA Pickup (178_, 278_) 1.9 JTD | 2003-04 – … | 59 | 80 | 1910 | |
| TEMPRA (159_) 1.6 (159.AD) | 1990-03 – 1994-04 | 63 | 86 | 1581 | |
| TEMPRA (159_) 1.6 i.e. (159.AE) | 1990-06 – 1992-07 | 57 | 78 | 1581 | |
| TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) | 1992-06 – 1996-08 | 55 | 75 | 1581 | |
| TEMPRA S.W. (159_) 1.8 i.e. (159.AN) | 1992-03 – 1993-12 | 77 | 105 | 1756 | |
| TEMPRA S.W. (159_) 1.9 TD (159.AI, 159.BI, 159.CU, 159.AU) | 1991-07 – 1995-02 | 66 | 90 | 1929 | |
| TEMPRA S.W. (159_) 1.9 TD (159.AQ) | 1992-03 – 1993-06 | 59 | 80 | 1929 | |
| TEMPRA S.W. (159_) 1.6 i.e. (159.AS, 159.AT) | 1992-10 – 1996-08 | 55 | 75 | 1581 | |
| TEMPRA S.W. (159_) 1.8 i.e. (159.AV) | 1993-09 – 1996-08 | 76 | 103 | 1756 | |
| TEMPRA S.W. (159_) 1.8 i.e. (159.AZ) | 1993-09 – 1996-08 | 66 | 90 | 1756 | |
| TEMPRA S.W. (159_) 1.8 i.e. (159.BY) | 1994-10 – 1996-08 | 74 | 101 | 1756 | |
| TEMPRA (159_) 1.8 i.e. (159.AN) | 1992-03 – 1996-08 | 77 | 105 | 1756 | |
| TEMPRA (159_) 1.8 i.e. (159.AV) | 1993-09 – 1996-08 | 76 | 103 | 1756 | |
| TEMPRA (159_) 1.8 i.e. (159.BY) | 1994-10 – 1996-08 | 74 | 101 | 1756 | |
| TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 1990-04 – 1996-08 | 51 | 69 | 1372 | |
| TEMPRA (159_) 1.6 i.e. (159.AJ) | 1994-06 – 1996-08 | 66 | 90 | 1581 | |
| TEMPRA (159_) 1.8 i.e. (159.AZ) | 1993-09 – 1996-08 | 66 | 90 | 1756 | |
| TEMPRA (159_) 1.9 TD (159.AQ) | 1992-07 – 1996-08 | 59 | 80 | 1929 | |
| TEMPRA (159_) 1.9 TD (159.CU, 159.AU, 159.AI, 159.BI) | 1990-05 – 1996-08 | 66 | 90 | 1929 | |
| TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 1992-10 – 1996-08 | 51 | 69 | 1372 | |
| TEMPRA S.W. (159_) 1.6 | 1990-12 – 1993-04 | 63 | 86 | 1581 | |
| TEMPRA S.W. (159_) 1.6 i.e. (159.AE) | 1990-10 – 1996-08 | 57 | 78 | 1581 | |
| TEMPRA S.W. (159_) 1.6 i.e. (159.AJ) | 1994-06 – 1996-08 | 66 | 90 | 1581 | |
| TIPO (160_) 1.8 i.e | 1993-03 – 1995-04 | 71 | 97 | 1756 | |
| TIPO (160_) 1.8 i.e. | 1990-10 – 1993-06 | 81 | 110 | 1756 | |
| TIPO (160_) 1.8 i.e. (160.EQ, 160.AM) | 1994-10 – 1995-10 | 74 | 101 | 1756 | |
| TIPO (160_) 1.8 i.e. (160.AY) | 1990-10 – 1993-06 | 77 | 105 | 1756 | |
| TIPO (160_) 1.8 i.e. (160.ED) | 1993-04 – 1995-04 | 76 | 103 | 1756 | |
| TIPO (160_) 1.8 i.e.16V Sport | 1989-11 – 1992-06 | 100 | 136 | 1756 | |
| TIPO (160_) 1.6 (160.AE) | 1988-01 – 1991-10 | 61 | 83 | 1581 | |
| TIPO (160_) 1.6 i.e. | 1988-02 – 1991-05 | 66 | 90 | 1595 | |
| TIPO (160_) 1.6 i.e. (160.A1, 160.EC, 160.EB) | 1992-10 – 1995-04 | 55 | 75 | 1581 | |
| TIPO (160_) 1.6 i.e. (160.AF) | 1990-07 – 1993-01 | 57 | 78 | 1581 | |
| TIPO (160_) 1.8 i.e. | 1993-09 – 1995-04 | 66 | 90 | 1756 | |
| TIPO (160_) 1.9 TD (160.AW) | 1992-03 – 1993-06 | 59 | 80 | 1929 | |
| TIPO (160_) 1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR) | 1990-09 – 1995-04 | 66 | 90 | 1929 | |
| MUSA (350_) 1.9 D Multijet (350.AXC1A) | 2004-10 – 2012-09 | 74 | 101 | 1910 |
