Description
Specifications
| paired article number | 2147220 |
| Fitting Position | Front Axle Left; in front of axle |
| Manufacturer Restriction | LUCAS |
| Brake Caliper Type | Floating Caliper; Brake Caliper (1 piston) |
| Piston Diameter | 54 mm |
| for brake disc thickness | 18 mm |
| Brake Disc Type | solid |
| for brake disc diameter | 282 mm |
| Material | Cast Iron |
| Net weight | 4.13 kg |
| Weight | 4.13 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| VAG | 701615123D, 701615123DX, 701698480X |
| VW | 701615123D, 701615123DX, 701698480X |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| BOSCH | 0986473177 |
| BREMBO | F85124 |
| BUDWEG CALIPER | 342442 |
| Brake ENGINEERING | CA1309 |
| CARDONE | 381953 |
| DELCO REMY | DC82442 |
| DELPHI | LC7338 |
| DRI | 3119700 |
| ELSTOCK | 82-0179 |
| FRIESEN | QBS4379 |
| FTE | RX549849A0 |
| GIRLING | 32324824 |
| HELLA | 8AC355390-751 |
| RE-EX | 506-00538 |
| TMI | BR000538 |

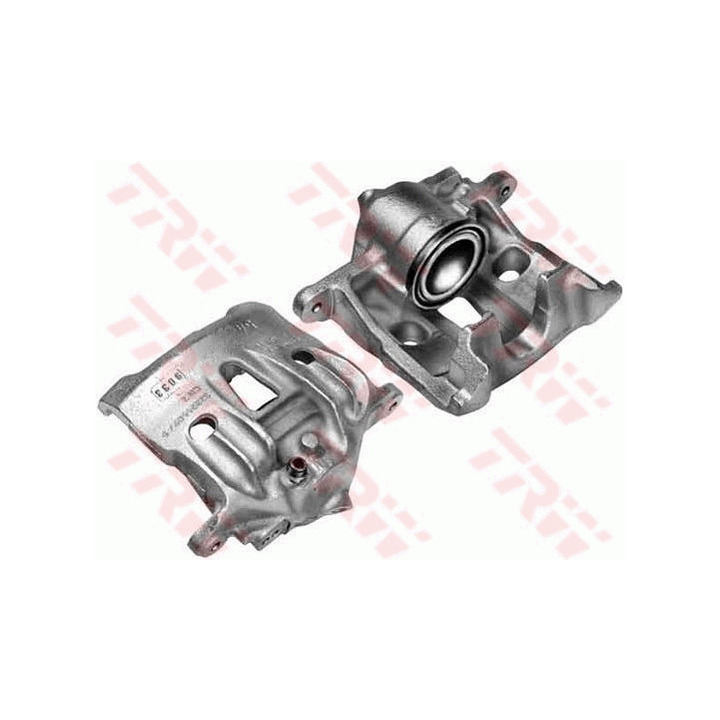

| TRW | BHW134E |
| UBD | 54504 |
| VAG | 701615123D, 701615123DX, 701698480X |
| VW | 701615123D, 701615123DX, 701698480X |
| sbs | 13012147219 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 1.9 TD | 1994-07 – 2002-04 | 50 | 1896 | ||
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.5 TDI | 1995-09 – 2003-04 | 75 | 102 | 2461 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 | 1996-08 – 2003-04 | 85 | 115 | 2461 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 TD | 1992-10 – 2003-04 | 50 | 68 | 1896 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.0 | 1990-07 – 2003-04 | 62 | 84 | 1968 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D | 1997-08 – 2003-04 | 55 | 75 | 2370 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 | 1990-11 – 2003-04 | 81 | 110 | 2461 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro | 1992-11 – 2001-11 | 81 | 110 | 2461 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 1.9 TD | 1992-10 – 2003-04 | 50 | 68 | 1896 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.0 | 1990-07 – 2003-04 | 62 | 84 | 1968 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.4 D | 1990-07 – 1998-04 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.4 D | 1997-08 – 2003-04 | 55 | 75 | 2370 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.4 D Syncro | 1992-10 – 1998-09 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.5 | 1990-11 – 2003-04 | 81 | 110 | 2461 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.5 | 1996-08 – 2003-04 | 85 | 115 | 2461 | |
| TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) 2.8 VR6 | 1996-05 – 2000-05 | 103 | 140 | 2792 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD | 1992-10 – 2003-04 | 50 | 68 | 1896 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0 | 1990-09 – 2003-04 | 62 | 84 | 1968 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D | 1990-09 – 1998-04 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D | 1997-08 – 2003-04 | 55 | 75 | 2370 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro | 1992-10 – 1998-09 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | 1990-09 – 2003-06 | 81 | 110 | 2461 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | 1996-08 – 2003-04 | 85 | 115 | 2461 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro | 1992-08 – 2003-04 | 81 | 110 | 2461 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6 | 1995-11 – 2000-04 | 103 | 140 | 2792 | |
| TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI | 1995-09 – 2003-04 | 75 | 102 | 2461 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D | 1990-09 – 1998-04 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro | 1992-10 – 1998-09 | 57 | 78 | 2370 | |
| TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI | 1995-09 – 2003-04 | 75 | 102 | 2461 |
