2147129 – Brake Caliper

€58,84

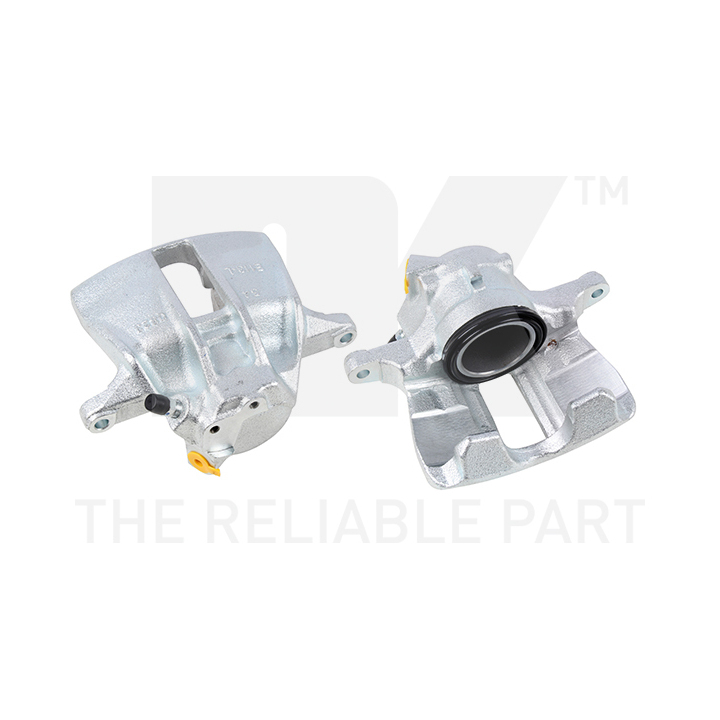

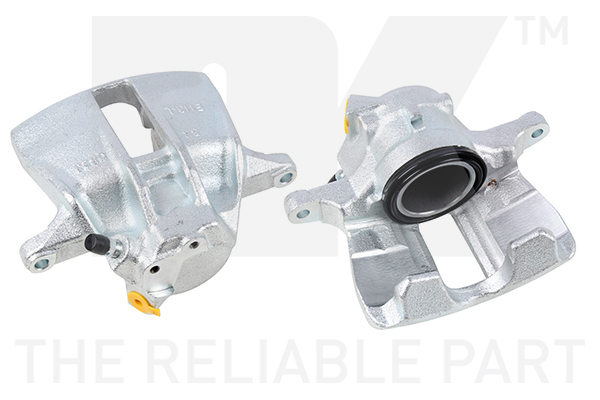

2147129 – Brake Caliper – NK – Part No: 2147129

Ask about this product
SKU: 2147129 Category: Tags: Brand:

Description

Specifications

paired article number 2147130
Fitting Position Front Axle Left; in front of axle
Manufacturer Restriction LUCAS
Brake Caliper Type Floating Caliper; Brake Caliper (1 piston)
Piston Diameter 54 mm
for brake disc thickness 13 mm
Brake Disc Type solid
for brake disc diameter 256 mm
Material Cast Iron
Net weight 2.91 kg
Weight 2.91 kg
Country of Origin China
Customs Code 870830

OE (Original Equipment) Numbers

Brand Reference Numbers
VAG 1H0615123B, 1H0615123BX
VW 1H0615123B, 1H0615123BX

Cross-Reference Numbers

Brand Reference Numbers

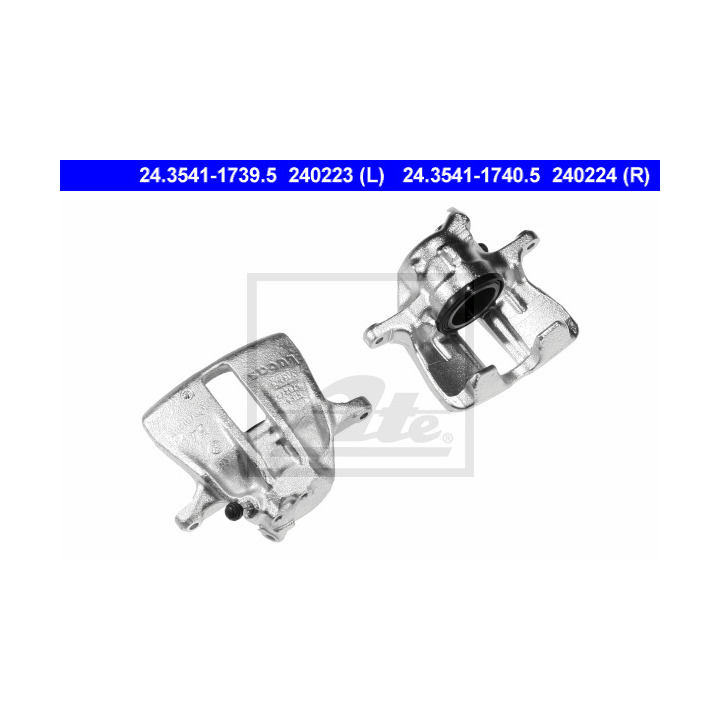

ATE 24.3541-1739.5, 27.1300-0175.3
BENDIX 692655B
BOSCH 0986474880
BREMBO F85098

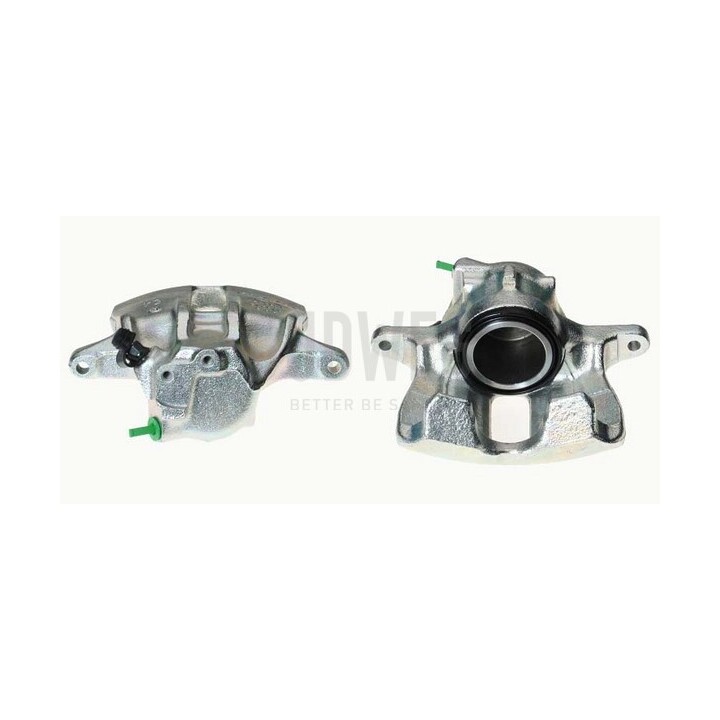

BUDWEG CALIPER 342248
Brake ENGINEERING CA1429
CARDONE 382655
DELCO REMY DC82248
DELPHI LC7559
DRI 3115700
ELSTOCK 82-0175
ERA Benelux BC62248
FRIESEN QBS4295
GENERAL RICAMBI WW6041
GIRLING 32324846
HELLA 8AC355390-551
RE-EX 506-00524
TMI BR000524

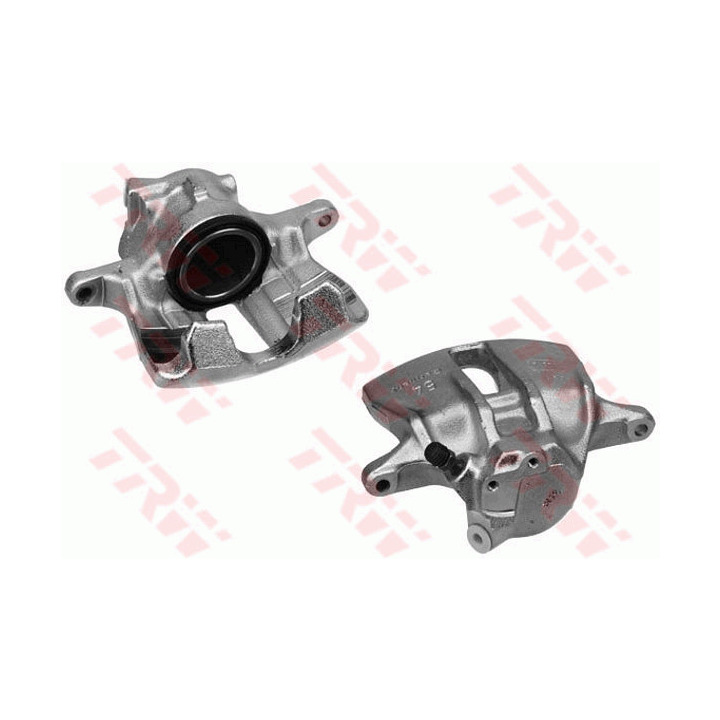

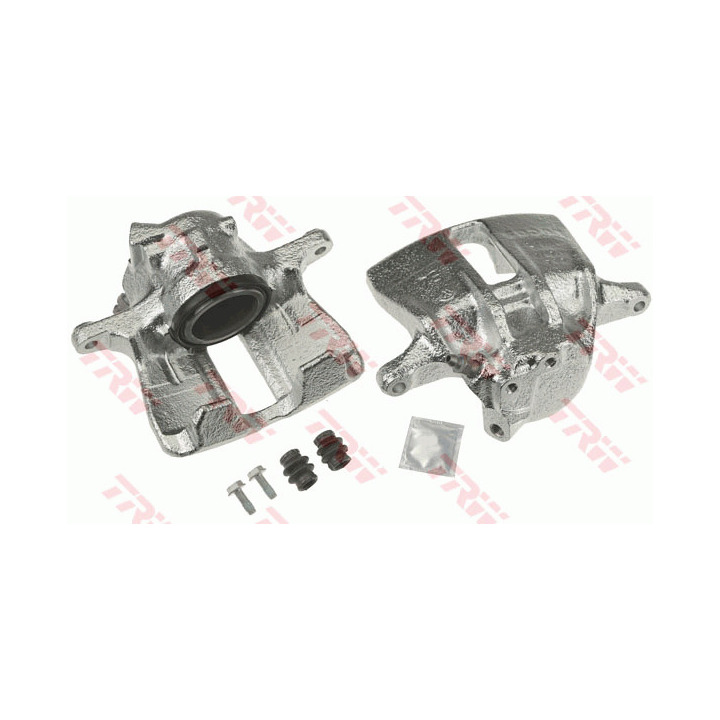

TRW BHW136, BHW136E
UBD 52646
VAG 1H0615123B, 1H0615123BX
VW 1H0615123B, 1H0615123BX
sbs 13012147129

Compatible Vehicles

Make Model Production Period KW HP CCM
GOLF III (1H1) 1.6 1995-07 – 1997-08 74 101 1595
GOLF III (1H1) 1.8 1991-11 – 1997-08 66 90 1781
GOLF III (1H1) 1.8 Syncro (1HX1) 1993-01 – 1997-08 66 90 1781
GOLF III (1H1) 1.9 TDI 1993-08 – 1997-12 66 90 1896
GOLF III Variant (1H5) 1.6 1994-07 – 1999-04 74 101 1595
GOLF III Variant (1H5) 1.8 1993-07 – 1999-04 55 75 1781
GOLF III Variant (1H5) 1.8 1993-07 – 1999-04 66 90 1781
GOLF III Variant (1H5) 1.8 Syncro 1994-10 – 1999-04 66 90 1781
GOLF III Variant (1H5) 1.9 D 1993-07 – 1999-04 47 65 1896
GOLF III Variant (1H5) 1.9 SDI 1995-07 – 1999-04 47 64 1896
GOLF III Variant (1H5) 1.9 TD 1993-07 – 1999-04 55 75 1896
GOLF IV Cabriolet (1E7) 1.8 1998-06 – 2002-06 55 75 1781
GOLF IV Cabriolet (1E7) 1.8 1998-06 – 2002-06 66 90 1781
GOLF IV Cabriolet (1E7) 1.9 TDI 1998-06 – 2002-06 66 90 1896
GOLF IV Cabriolet (1E7) 1.9 TDI 1998-06 – 2002-06 81 110 1896
GOLF IV Cabriolet (1E7) 2.0 1998-06 – 2002-06 85 115 1984
GOLF III (1H1) 2.0 GL 1995-08 – 1997-09 79 1984
GOLF III Van (1H1) 1.9 TDI 1991-08 – 1997-09 66 1896
GOLF Van III Variant (1H5) 1.8 1993-07 – 1999-02 55 1781
GOLF III Van (1H1) 1.8 1991-08 – 1995-07 55 1781
GOLF Van III Variant (1H5) 1.9 TDI 1996-05 – 1999-02 81 1896
GOLF III Variant (1H5) 1.9 TDI 1994-03 – 1999-04 66 90 1896
GOLF III (1H1) 1.9 TDI 1996-04 – 1997-08 81 110 1896
GOLF III (1H1) 1.9 TDI Syncro (1HX1) 1995-08 – 1997-12 66 90 1896
GOLF III Cabriolet (1E7) 1.6 1994-10 – 1998-02 74 101 1595
GOLF III Cabriolet (1E7) 1.8 1993-07 – 1998-05 55 75 1781
GOLF III Variant (1H5) 1.9 TDI Syncro 1995-07 – 1999-04 66 90 1896
GOLF IV Cabriolet (1E7) 1.6 1998-06 – 2002-06 74 100 1595
GOLF III Van (1H1) 1.9 D 1991-08 – 1995-07 55 1896
GOLF Van III Variant (1H5) 1.9 TDI 1993-08 – 1999-12 66 1896
GOLF III Cabriolet (1E7) 1.8 1993-07 – 1998-05 66 90 1781
GOLF III Cabriolet (1E7) 1.9 TDI 1995-08 – 1998-05 66 90 1896
GOLF III Cabriolet (1E7) 2.0 1993-07 – 1998-05 85 115 1984
GOLF III (1H1) 1.8 1991-11 – 1997-08 55 75 1781
VENTO (1H2) 1.6 1992-09 – 1998-09 55 75 1598
VENTO (1H2) 1.6 1994-10 – 1998-09 74 101 1595
VENTO (1H2) 1.8 1991-11 – 1998-09 55 75 1781
VENTO (1H2) 1.8 1991-11 – 1998-09 66 90 1781
VENTO (1H2) 1.9 D 1991-11 – 1998-09 48 65 1896
VENTO (1H2) 1.9 TD 1991-11 – 1998-09 55 75 1896
VENTO (1H2) 1.9 TDI 1993-09 – 1998-09 66 90 1896
VENTO (1H2) 1.9 TDI 1996-04 – 1998-09 81 110 1896

Additional information

Weight 2,91 kg
Brand

NK
