Description
Specifications
| paired article number | 2133168 |
| Fitting Position | Rear Axle Left; behind the axle |
| Manufacturer Restriction | ATE |
| Brake Caliper Type | Fixed Caliper; Brake Caliper (2 pistons) |
| Piston Diameter | 36 mm |
| for brake disc thickness | 9 mm |
| Brake Disc Type | solid |
| for brake disc diameter | 278 mm |
| Material | Cast Iron |
| Net weight | 2.84 kg |
| Weight | 2.892 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| MERCEDES-BENZ | 0014205083, A0014205083 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|

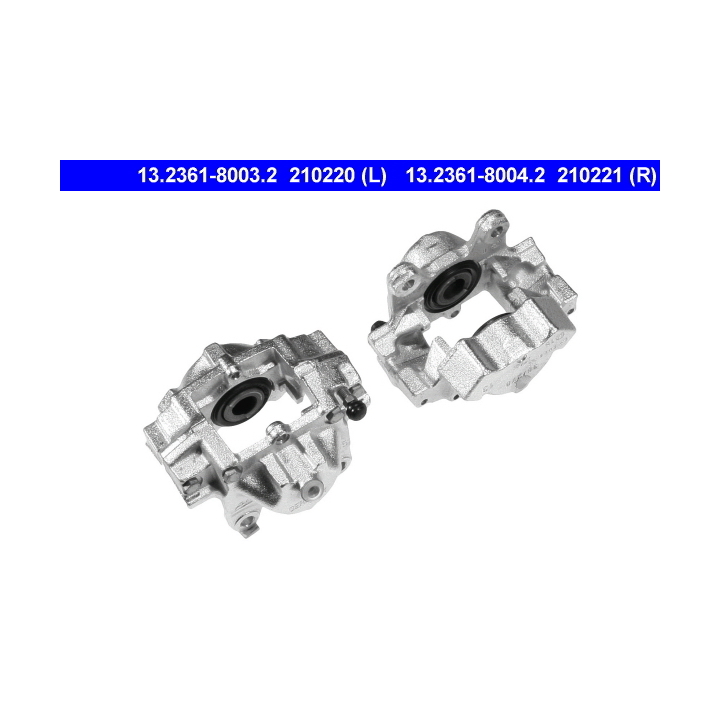

| ATE | 13.2361-8003.2 |
| BOSCH | 0986473174 |
| BREMBO | F50164 |
| BUDWEG CALIPER | 342998 |
| Brake ENGINEERING | CA2014 |
| CARDONE | 382764 |
| DELCO REMY | DC75108 |
| DELPHI | LC7419 |
| DRI | 4158100 |
| ELSTOCK | 86-0518 |
| FTE | RS361302A0, RX361302A0 |
| HELLA | 8AC355382-011, 8AN355440-271 |
| MERCEDES-BENZ | 0014205083, A0014205083 |
| RE-EX | 506-01552 |
| SHAFTEC | BC8096 |
| TMI | BR001552 |
| TRW | BHR216E |
| sbs | 13012133167 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| CROSSFIRE 3.2 | 2003-07 – 2008-12 | 160 | 218 | 3199 | |
| CROSSFIRE Roadster 3.2 | 2004-05 – 2008-12 | 160 | 218 | 3199 | |
| C-CLASS (W202) C 200 Kompressor (202.025) | 1995-10 – 2000-05 | 132 | 180 | 1998 | |
| C-CLASS T-Model (S202) C 180 T (202.078) | 1996-06 – 2000-09 | 90 | 122 | 1799 | |
| C-CLASS T-Model (S202) C 180 T (202.081) | 2000-09 – 2001-03 | 95 | 129 | 1998 | |
| C-CLASS T-Model (S202) C 200 T (202.080) | 1996-06 – 2001-03 | 100 | 136 | 1998 | |
| C-CLASS T-Model (S202) C 200 T CDI (202.194) | 1998-03 – 2001-03 | 75 | 102 | 2151 | |
| C-CLASS T-Model (S202) C 200 T D (202.180) | 1996-10 – 2001-03 | 65 | 88 | 1997 | |
| C-CLASS T-Model (S202) C 200 T Kompressor (202.082) | 1996-11 – 2001-03 | 141 | 192 | 1998 | |
| C-CLASS T-Model (S202) C 200 T Kompressor (202.087) | 2000-09 – 2001-03 | 120 | 163 | 1998 | |
| C-CLASS T-Model (S202) C 220 T CDI (202.193) | 1997-09 – 2001-03 | 92 | 125 | 2151 | |
| C-CLASS T-Model (S202) C 220 T D (202.182) | 1996-06 – 2001-03 | 55 | 75 | 2155 | |
| C-CLASS T-Model (S202) C 220 T D (202.182) | 1996-06 – 1998-09 | 70 | 95 | 2155 | |
| C-CLASS T-Model (S202) C 230 T (202.083) | 1996-06 – 1998-06 | 110 | 150 | 2295 | |
| C-CLASS T-Model (S202) C 230 T Kompressor (202.085) | 1997-06 – 2000-09 | 142 | 193 | 2295 | |
| C-CLASS T-Model (S202) C 240 T (202.086) | 1997-06 – 2000-09 | 125 | 170 | 2398 | |
| C-CLASS T-Model (S202) C 240 T (202.088) | 2000-09 – 2001-03 | 125 | 170 | 2597 | |
| C-CLASS T-Model (S202) C 250 T Turbo-D (202.188) | 1996-06 – 2001-03 | 110 | 150 | 2497 | |
| C-CLASS T-Model (S202) C 280 T (202.089) | 1997-06 – 2001-03 | 145 | 197 | 2799 | |
| C-CLASS (W202) C 200 Kompressor (202.025) | 1996-11 – 2000-05 | 141 | 192 | 1998 | |
| C-CLASS (W202) C 230 Kompressor (202.024) | 1995-10 – 2000-05 | 142 | 193 | 2295 | |
| C-CLASS (W202) C 240 (202.026) | 1997-06 – 2000-05 | 125 | 170 | 2398 | |
| C-CLASS (W202) C 250 Turbo-D (202.128) | 1995-10 – 2000-05 | 110 | 150 | 2497 | |
| C-CLASS (W202) C 280 (202.028) | 1993-05 – 2000-05 | 142 | 193 | 2799 | |
| C-CLASS (W202) C 280 (202.029) | 1997-06 – 2000-05 | 145 | 197 | 2799 | |
| CLK Convertible (A208) CLK 200 (208.435) | 1998-03 – 2002-03 | 100 | 136 | 1998 | |
| CLK (C208) CLK 200 (208.335) | 1997-06 – 2002-06 | 100 | 136 | 1998 | |
| CLK (C208) CLK 200 Kompressor (208.344) | 2000-06 – 2002-06 | 120 | 163 | 1998 | |
| CLK (C208) CLK 200 Kompressor (208.345) | 1997-06 – 2000-06 | 141 | 192 | 1998 | |
| CLK (C208) CLK 230 Kompressor (208.347) | 1997-06 – 2000-06 | 142 | 193 | 2295 | |
| CLK (C208) CLK 230 Kompressor (208.348) | 2000-06 – 2002-06 | 145 | 197 | 2295 | |
| E-CLASS (W210) E 300 D (210.020) | 1995-06 – 1997-06 | 100 | 136 | 2996 | |
| E-CLASS (W210) E 220 D (210.004) | 1995-06 – 1999-07 | 70 | 95 | 2155 | |
| E-CLASS (W210) E 220 CDI (210.006) | 1999-07 – 2002-03 | 105 | 143 | 2148 | |
| E-CLASS (W210) E 250 D (210.010) | 1995-06 – 1999-07 | 83 | 113 | 2497 | |
| E-CLASS (W210) E 200 (210.035) | 1995-06 – 2000-08 | 100 | 136 | 1998 | |
| E-CLASS (W210) E 200 CDI (210.007) | 1998-06 – 2002-03 | 75 | 102 | 2151 | |
| E-CLASS (W210) E 200 CDI (210.007) | 1999-07 – 2002-03 | 85 | 116 | 2148 | |
| E-CLASS (W210) E 200 D (210.003) | 1996-01 – 2002-03 | 65 | 88 | 1997 | |
| E-CLASS (W210) E 200 Kompressor (210.045) | 1997-06 – 2002-03 | 137 | 186 | 1998 | |
| E-CLASS (W210) E 200 Kompressor (210.048) | 2000-08 – 2002-03 | 120 | 163 | 1998 | |
| E-CLASS (W210) E 220 CDI (210.006) | 1999-07 – 2002-03 | 100 | 136 | 2148 | |
| E-CLASS (W210) E 220 CDI (210.006) | 1998-06 – 1999-07 | 92 | 125 | 2151 | |
| E-CLASS (W210) E 220 D | 1996-05 – 2002-03 | 55 | 75 | 2155 | |
| E-CLASS (W210) E 230 (210.037) | 1995-06 – 1997-06 | 110 | 150 | 2295 | |
| E-CLASS (W210) E 240 (210.061) | 1997-06 – 2000-08 | 125 | 170 | 2398 | |
| E-CLASS (W210) E 240 (210.062) | 2000-08 – 2002-03 | 125 | 170 | 2597 | |
| E-CLASS (W210) E 250 Turbo-D (210.015) | 1997-06 – 1999-07 | 110 | 150 | 2497 | |
| E-CLASS (W210) E 290 Turbo-D (210.017) | 1996-03 – 1999-07 | 95 | 129 | 2874 | |
| SLK (R170) 200 (170.435) | 1996-09 – 2000-03 | 100 | 136 | 1998 | |
| SLK (R170) 200 Kompressor (170.444) | 2000-03 – 2004-04 | 120 | 163 | 1998 | |
| SLK (R170) 200 Kompressor (170.445) | 1996-10 – 2000-03 | 141 | 192 | 1998 | |
| SLK (R170) 230 Kompressor (170.447) | 1996-09 – 2000-03 | 142 | 193 | 2295 | |
| SLK (R170) 230 Kompressor (170.449) | 2000-03 – 2004-04 | 145 | 197 | 2295 | |
| SLK (R170) 320 (170.465) | 2000-03 – 2004-04 | 160 | 218 | 3199 |
