Description
Specifications
| paired article number | 211984 |
| Fitting Position | Front Axle Left; in front of axle |
| Manufacturer Restriction | BENDIX-BOSCH |
| Brake Caliper Type | Floating Caliper; Brake Caliper (1 piston) |
| Piston Diameter | 57 mm |
| for brake disc thickness | 20 mm |
| Brake Disc Type | Vented |
| for brake disc diameter | 257 mm |
| Material | Cast Iron |
| Net weight | 3.39 kg |
| Weight | 3.38 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| FIAT | 77362802, 95674770, 9567477080 |
| LANCIA | 9567477080 |
| PEUGEOT | 4400F7, 77362802, 95674770 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|

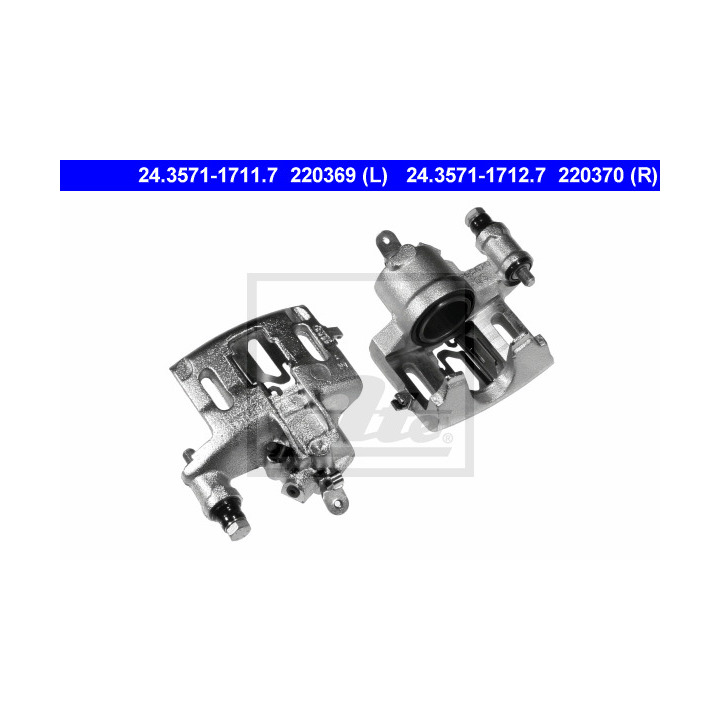

| ATE | 24.3571-1711.5, 24.3571-1711.7 |
| BENDIX | 692501B |
| BOSCH | 0204103521 |
| BREMBO | F61138 |
| BUDWEG CALIPER | 342484 |
| Brake ENGINEERING | CA1533 |
| CARDONE | 382501 |
| CEF | SCA0082, CITROËN, 4400F7, 77362802, 95674770 |
| DELCO REMY | DC82484 |
| DELPHI | LC2031 |
| DRI | 3161200 |
| ELSTOCK | 82-0621 |
| ERA Benelux | BC62484 |
| FIAT | 77362802, 95674770, 9567477080 |
| FRIESEN | QBS4975 |
| FTE | RX579827A0 |
| GENERAL RICAMBI | CI6035 |
| HELLA | 8AC355392-131 |
| LANCIA | 9567477080 |
| PEUGEOT | 4400F7, 77362802, 95674770 |
| RE-EX | 506-01824 |
| SHAFTEC | BC9577 |
| TMI | BR001824 |
| TRW | BCR130 |
| UBD | 54450 |
| sbs | 1301211983 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| EVASION MPV (22, U6) 1.8 | 1997-05 – 2002-07 | 73 | 99 | 1761 | |
| JUMPY I (U6U_) 1.9 TD | 1996-04 – 2003-11 | 68 | 92 | 1905 | |
| JUMPY I (U6U_) 1.9 TD | 1995-10 – 2000-08 | 66 | 90 | 1905 | |
| JUMPY I (U6U_) 2.0 | 2000-04 – 2006-12 | 100 | 136 | 1997 | |
| JUMPY I Van (BS_, BT_, BY_, BZ_) 1.9 TD | 1995-10 – 2000-08 | 66 | 90 | 1905 | |
| JUMPY I Van (BS_, BT_, BY_, BZ_) 2.0 i 16V | 2000-03 – 2006-10 | 102 | 138 | 1997 | |
| JUMPY I (U6U_) 1.9 D 70 | 1998-04 – 2003-11 | 51 | 69 | 1868 | |
| JUMPY I (U6U_) 2.0 i 16V | 2000-03 – 2006-10 | 102 | 138 | 1997 | |
| JUMPY I Van (BS_, BT_, BY_, BZ_) 1.9 D 70 | 1998-04 – 2006-10 | 51 | 69 | 1868 | |
| JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) 1.9 TD | 2000-11 – 2006-10 | 51 | 1868 | ||
| SCUDO Bus (220_) 1.9 D | 1998-04 – 2006-12 | 51 | 69 | 1868 | |
| SCUDO Platform/Chassis (220_) 1.6 | 1996-09 – 2006-12 | 58 | 1581 | ||
| SCUDO Bus (220_) 2.0 JTD 16V | 1999-05 – 2006-12 | 80 | 109 | 1997 | |
| SCUDO Platform/Chassis (220_) 2.0 JTD | 1999-10 – 2006-12 | 69 | 94 | 1997 | |
| SCUDO Platform/Chassis (220_) 2.0 JTD 16V | 1999-05 – 2006-12 | 80 | 109 | 1997 | |
| SCUDO Van (220_) 1.6 | 1996-02 – 2006-12 | 58 | 79 | 1581 | |
| SCUDO Van (220_) 1.9 D | 1996-02 – 2006-12 | 51 | 69 | 1905 | |
| SCUDO Van (220_) 1.9 D | 1998-04 – 2006-12 | 51 | 69 | 1868 | |
| SCUDO Van (220_) 1.9 TD | 1998-02 – 2006-12 | 68 | 92 | 1905 | |
| SCUDO Van (220_) 1.9 TD | 1996-02 – 2006-12 | 66 | 90 | 1905 | |
| SCUDO Van (220_) 2.0 | 2000-05 – 2006-12 | 100 | 136 | 1997 | |
| SCUDO Van (220_) 2.0 JTD | 1999-10 – 2006-12 | 69 | 94 | 1997 | |
| SCUDO Van (220_) 2.0 JTD | 2002-12 – 2006-12 | 80 | 109 | 1997 | |
| SCUDO Bus (220_) 2.0 JTD | 1999-12 – 2006-12 | 80 | 109 | 1997 | |
| SCUDO Van (220_) 2.0 JTD 16V | 1999-05 – 2006-12 | 80 | 109 | 1997 | |
| SCUDO Bus (220_) 1.6 | 1996-02 – 2006-12 | 58 | 79 | 1581 | |
| SCUDO Bus (220_) 1.9 D | 1996-02 – 1998-04 | 51 | 69 | 1905 | |
| SCUDO Bus (220_) 1.9 TD | 1996-02 – 2006-12 | 68 | 92 | 1905 | |
| SCUDO Bus (220_) 1.9 TD Eco | 1996-02 – 2006-12 | 66 | 90 | 1905 | |
| SCUDO Bus (220_) 2.0 16V | 2000-06 – 2006-12 | 100 | 136 | 1997 | |
| SCUDO Bus (220_) 2.0 JTD | 2004-01 – 2006-12 | 69 | 94 | 1997 | |
| SCUDO Platform/Chassis (220_) 1.9 TD | 1996-09 – 2006-12 | 68 | 1905 | ||
| SCUDO Platform/Chassis (220_) 2.0 JTD | 2002-12 – 2006-12 | 80 | 1997 | ||
| SCUDO Platform/Chassis (220_) 1.9 D | 1998-04 – 2006-12 | 51 | 69 | 1868 | |
| ULYSSE (220_) 1.8 (220.BB5) | 1997-05 – 2002-08 | 73 | 99 | 1761 | |
| 806 (221) 1.8 | 1995-07 – 2002-08 | 73 | 99 | 1761 | |
| EXPERT Van (222) 2.0 HDI | 2000-07 – 2006-12 | 80 | 109 | 1997 | |
| EXPERT Van (222) 2.0 HDI | 2000-07 – 2006-12 | 80 | 109 | 1997 | |
| EXPERT (224_) 1.6 | 1996-02 – 2000-09 | 58 | 79 | 1581 | |
| EXPERT (224_) 1.8 | 1996-10 – 2000-09 | 74 | 101 | 1761 | |
| EXPERT (224_) 1.9 D | 1996-02 – 1998-12 | 51 | 70 | 1905 | |
| EXPERT (224_) 1.9 D | 2003-12 – 2006-12 | 51 | 69 | 1868 | |
| EXPERT (224_) 1.9 TD | 1996-02 – 2000-09 | 66 | 90 | 1905 | |
| EXPERT (224_) 2.0 | 2000-07 – 2006-12 | 100 | 136 | 1997 | |
| EXPERT (224_) 2.0 HDi | 2000-10 – 2006-10 | 69 | 94 | 1997 | |
| EXPERT (224_) 2.0 HDI | 2000-07 – 2006-12 | 80 | 109 | 1997 | |
| EXPERT (224_) 2.0 HDI 16V | 2000-07 – 2006-12 | 80 | 109 | 1997 | |
| EXPERT Van (222) 1.6 | 1996-02 – 2000-09 | 58 | 79 | 1581 | |
| EXPERT Van (222) 1.8 | 1996-10 – 2000-09 | 74 | 101 | 1761 | |
| EXPERT Van (222) 1.9 D | 1996-02 – 1998-12 | 51 | 70 | 1905 | |
| EXPERT Van (222) 1.9 D 70 | 1998-12 – 2006-12 | 51 | 69 | 1868 | |
| EXPERT Van (222) 1.9 TD | 1996-02 – 2000-09 | 66 | 90 | 1905 | |
| EXPERT Van (222) 1.9 TD | 1996-02 – 1998-05 | 68 | 92 | 1905 | |
| EXPERT Van (222) 2.0 | 2002-09 – 2006-12 | 100 | 136 | 1997 | |
| EXPERT Van (222) 2.0 HDI | 2000-07 – 2006-12 | 69 | 94 | 1997 | |
| EXPERT Platform/Chassis (223) 1.6 | 1996-02 – 2000-09 | 58 | 79 | 1581 | |
| EXPERT Platform/Chassis (223) 1.9 D | 1996-02 – 1998-12 | 51 | 70 | 1905 | |
| EXPERT Platform/Chassis (223) 1.9 TD | 1996-02 – 2000-09 | 66 | 90 | 1905 | |
| EXPERT Platform/Chassis (223) 1.9 TD | 1996-02 – 1998-05 | 68 | 92 | 1905 | |
| EXPERT Platform/Chassis (223) 1.9 D | 1998-06 – 2001-09 | 51 | 1868 | ||
| EXPERT Platform/Chassis (223) 2.0 HDi | 2000-10 – 2006-10 | 69 | 1997 | ||
| EXPERT Platform/Chassis (223) 2.0 HDi | 2000-10 – 2006-10 | 80 | 1997 | ||
| EXPERT Platform/Chassis (223) 2.0 HDI | 2000-10 – 2006-10 | 80 | 1997 | ||
| EXPERT (224_) 1.9 TD | 1996-02 – 1998-05 | 68 | 92 | 1905 |
