Description
Specifications
| paired article number | 2115235 |
| Fitting Position | Front Axle Right; behind the axle |
| Manufacturer Restriction | ATE |
| Brake Caliper Type | Floating Caliper; Brake Caliper (1 piston) |
| Piston Diameter | 60 mm |
| for brake disc thickness | 30 mm |
| Brake Disc Type | Vented |
| for brake disc diameter | 332 mm; 348 mm |
| Material | Cast Iron |
| Net weight | 4.95 kg |
| Weight | 4.988 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| BMW | 34116776784 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| BMW | 34116776784 |
| BREMBO | F06189 |

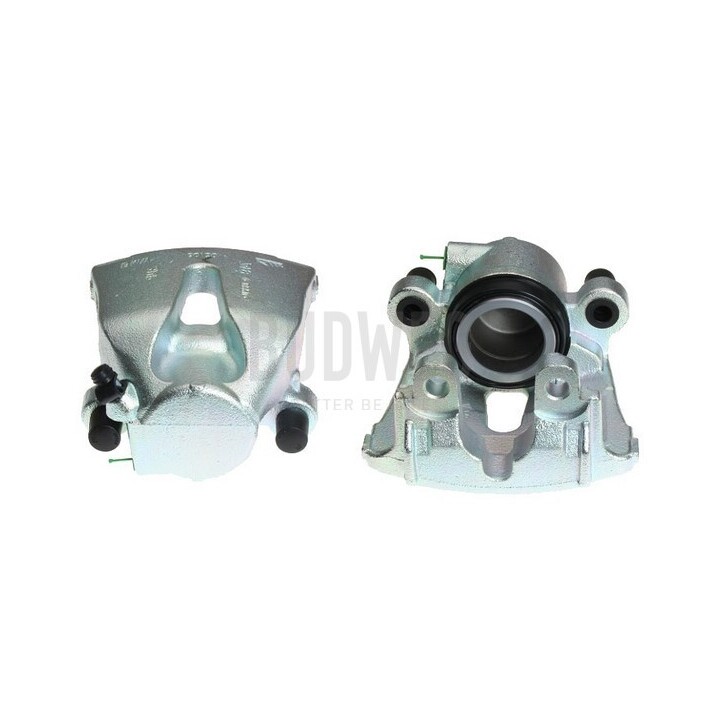

| BUDWEG CALIPER | 344105 |
| Brake ENGINEERING | CA2761R |
| CARDONE | 385941 |
| DELCO REMY | DC84105 |
| DRI | 3212220 |
| ELSTOCK | 83-2122 |
| ERA Benelux | BC64105 |

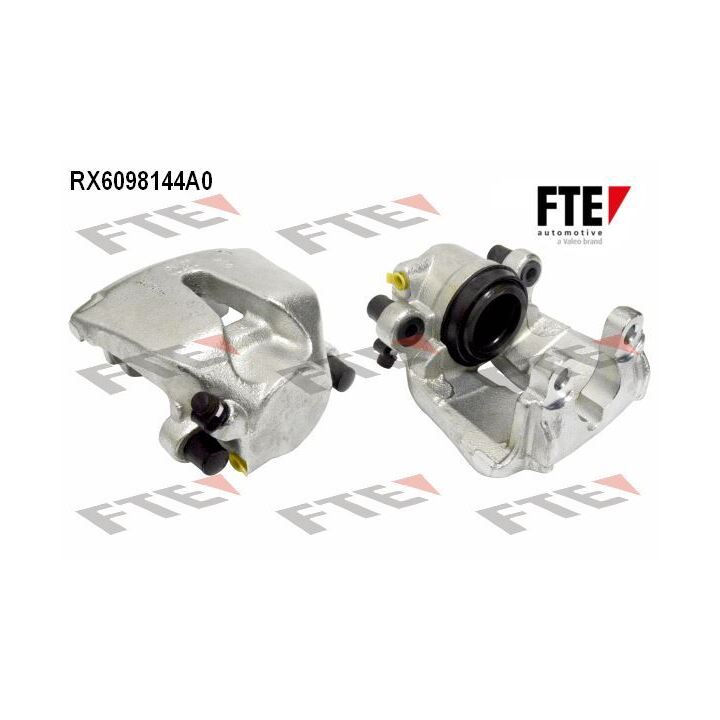

| FTE | RX6098144A0 |
| RE-EX | 506-06337 |
| TMI | BR006337 |

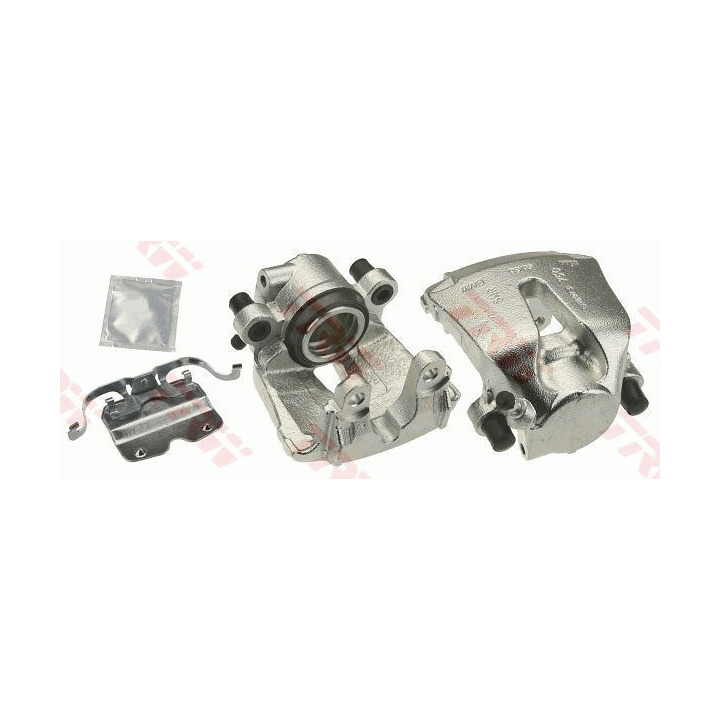

| TRW | BHS1063E |
| sbs | 13012115236 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| X4 (F26) M 40 i | 2015-12 – 2018-03 | 265 | 360 | 2979 | |
| X5 (F15, F85) xDrive 28 i | 2015-06 – 2018-07 | 180 | 1997 | ||
| X5 (E70) xDrive 40 i | 2012-01 – 2013-06 | 225 | 2979 | ||
| X5 (E70) xDrive 30 i | 2007-02 – 2012-12 | 172 | 2996 | ||
| X5 (F15, F85) sDrive 25 d | 2015-08 – 2018-07 | 170 | 231 | 1995 | |
| X5 (F15, F85) sDrive 25 d | 2013-12 – 2018-07 | 155 | 211 | 1995 | |
| X5 (F15, F85) xDrive 40e | 2015-08 – 2018-07 | 230 | 313 | 1997 | |
| X5 (F15, F85) xDrive 40e | 2015-08 – 2018-07 | 205 | 279 | 1997 | |
| X5 (F15, F85) xDrive 35 i | 2013-12 – 2018-07 | 225 | 306 | 2979 | |
| X5 (E70) 3.0 d | 2006-12 – 2008-09 | 173 | 235 | 2993 | |
| X5 (E70) 3.0 3.0d | 2007-02 – 2008-09 | 155 | 211 | 2993 | |
| X5 (E70) xDrive 35 d | 2008-10 – 2013-07 | 210 | 286 | 2993 | |
| X5 (E70) xDrive 40 d | 2010-09 – 2013-06 | 225 | 306 | 2993 | |
| X5 (E70) xDrive 35 i | 2012-02 – 2013-06 | 235 | 320 | 2979 | |
| X5 (E70) 3.0 si | 2006-10 – 2008-09 | 200 | 272 | 2996 | |
| X5 (E70) 4.8 i xDrive | 2006-10 – 2008-09 | 261 | 355 | 4799 | |
| X5 (E70) xDrive 30 i | 2008-10 – 2010-03 | 200 | 272 | 2996 | |
| X5 (E70) xDrive 35 i | 2010-04 – 2013-07 | 225 | 306 | 2979 | |
| X5 (F15, F85) xDrive 35 i | 2013-12 – 2018-07 | 240 | 326 | 2979 | |
| X5 (F15, F85) xDrive 30 d | 2013-08 – 2018-07 | 204 | 277 | 2993 | |
| X5 (F15, F85) xDrive 25 d | 2013-12 – 2015-07 | 160 | 218 | 1995 | |
| X5 (E70) xDrive 30 d | 2008-10 – 2013-07 | 155 | 211 | 2993 | |
| X5 (E70) xDrive 30 d | 2010-04 – 2013-07 | 180 | 245 | 2993 | |
| X5 (E70) xDrive 30 d | 2008-10 – 2010-03 | 173 | 235 | 2993 | |
| X5 (E70) xDrive 48 i | 2008-10 – 2010-03 | 261 | 355 | 4799 | |
| X5 (F15, F85) xDrive 40 d | 2013-12 – 2018-07 | 230 | 313 | 2993 | |
| X5 (F15, F85) sDrive 25 d | 2013-12 – 2015-07 | 160 | 218 | 1995 | |
| X5 (F15, F85) xDrive 30 d | 2013-08 – 2018-07 | 190 | 258 | 2993 | |
| X5 (F15, F85) xDrive 25 d | 2015-08 – 2018-07 | 170 | 231 | 1995 | |
| X5 (F15, F85) xDrive 25 d | 2013-12 – 2018-07 | 155 | 211 | 1995 | |
| X5 (F15, F85) xDrive 30 d | 2013-12 – 2018-07 | 183 | 249 | 2993 | |
| X5 (F15, F85) xDrive 30 d | 2013-08 – 2018-07 | 210 | 286 | 2993 | |
| X5 (F15, F85) xDrive 25 d | 2014-04 – 2018-07 | 160 | 2993 | ||
| X6 (E71, E72) xDrive 35 d | 2008-01 – 2010-03 | 210 | 286 | 2993 | |
| X6 (E71, E72) xDrive 35 i | 2008-01 – 2014-07 | 225 | 306 | 2979 | |
| X6 (E71, E72) xDrive 40 d | 2009-07 – 2014-06 | 225 | 306 | 2993 | |
| X6 (F16, F86) xDrive 40 d | 2014-12 – 2019-07 | 230 | 313 | 2993 | |
| X6 (F16, F86) xDrive 30 d | 2014-08 – 2019-07 | 155 | 211 | 2993 | |
| X6 (E71, E72) xDrive 30 d | 2010-04 – 2014-07 | 180 | 245 | 2993 | |
| X6 (E71, E72) xDrive 30 d | 2010-04 – 2014-07 | 155 | 211 | 2993 | |
| X6 (E71, E72) xDrive 30 d | 2008-04 – 2010-03 | 173 | 235 | 2993 | |
| X6 (F16, F86) xDrive 35 i | 2014-08 – 2019-07 | 240 | 326 | 2979 | |
| X6 (F16, F86) xDrive 30 d | 2014-08 – 2019-07 | 190 | 258 | 2993 | |
| X6 (F16, F86) xDrive 30 d | 2014-08 – 2019-07 | 204 | 277 | 2993 | |
| X6 (F16, F86) xDrive 35 i | 2014-08 – 2019-07 | 225 | 306 | 2979 | |
| X6 (F16, F86) xDrive 30 d | 2014-12 – 2019-07 | 183 | 249 | 2993 | |
| X6 (E71, E72) xDrive 35 i | 2008-01 – 2014-06 | 224 | 2979 |
