Description
Specifications
| External Thread Size | M14 x 1,5 |
| Mounting points diameter | 20 mm |
| Piston Rod Diameter | 16 mm |
| Shock Absorber Type | Oil Pressure |
| Shock Absorber Design | Telescopic Shock Absorber |
| min. length | 413 mm |
| max. length | 703 mm |
| Shock Absorber Mounting Type | Top pin; Bottom eye |
| Fitting Position | Front Axle |
| Pipe Diameter | 60 mm; 45 mm |
| Weight | 3.168 kg |
| Country of Origin | Germany |
| Customs Code | 870880 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| MAN | 85.43701.6006 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| AUGER | 20536 |
| BOGE | 30-E45-0 |
| MAN | 85.43701.6006 |
| MONROE | T1322 |
| Magnum Technology | M0102 |

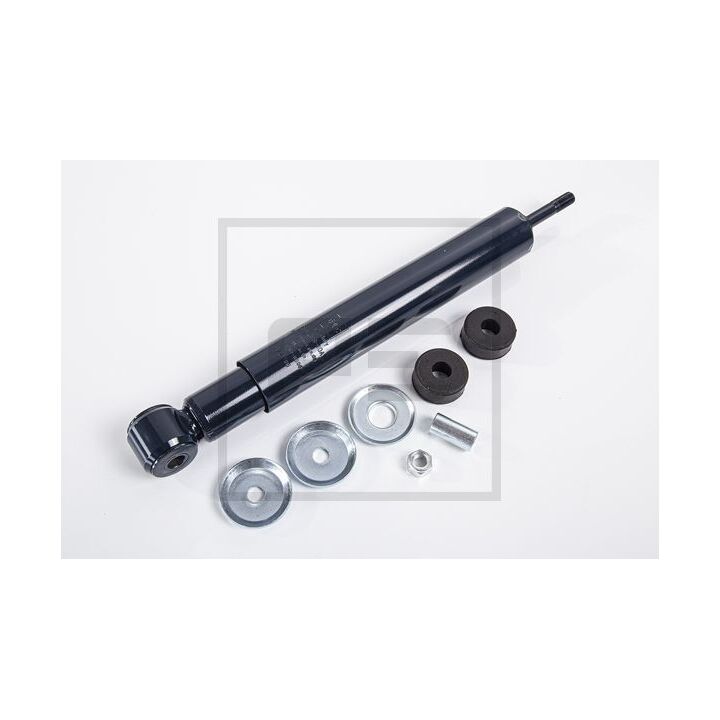

| PE Automotive | 033.289-10A |

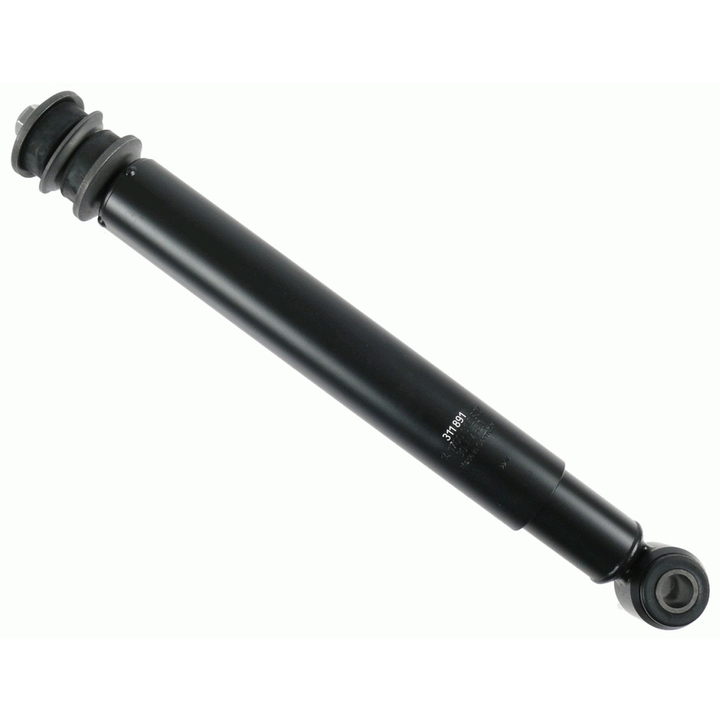

| SACHS | 311 891 |
| SAMPA | 023.394 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| FOC 12.250 | 2004-08 – … | 184 | 250 | 6871 | |
| FOC 12.240 | 2007-08 – … | 176 | 240 | 6871 | |
| TGL I 7.150, 8.150 | 2005-04 – 2022-03 | 110 | 150 | 4580 | |
| TGL I 7.180, 8.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 8.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 8.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 10.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 10.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 10.240 | 2005-04 – 2022-03 | 176 | 240 | 6871 | |
| TGL I 12.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 12.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 8.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 8.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 10.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 10.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 10.240 | 2005-04 – 2022-03 | 176 | 240 | 6871 | |
| TGL I 12.180 | 2005-04 – 2022-03 | 132 | 180 | 4580 | |
| TGL I 12.210 | 2005-04 – 2022-03 | 151 | 206 | 4580 | |
| TGL I 8.150 | 2006-10 – 2022-03 | 110 | 150 | 4580 | |
| TGL I 8.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 8.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 10.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 10.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 10.250 | 2005-04 – 2022-03 | 184 | 250 | 6871 | |
| TGL I 10.250 | 2005-04 – 2022-03 | 184 | 250 | 6871 | |
| TGL I 12.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 12.220 | 2005-04 – 2022-03 | 162 | 220 | 4580 | |
| TGL I 7.150 | 2004-01 – 2022-03 | 110 | 4580 | ||
| TGL I 7.180 | 2004-01 – 2022-03 | 132 | 4580 |
