Description

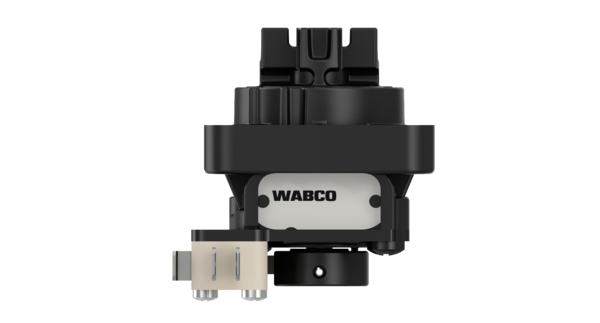

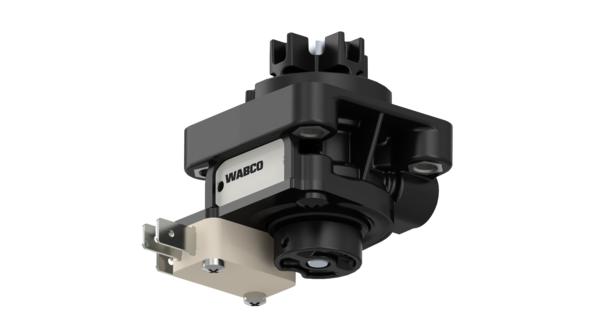

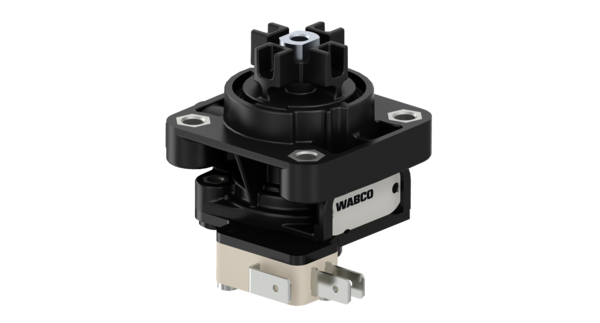

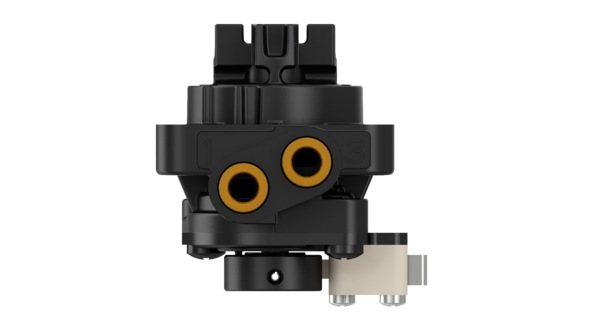

2/2 Emergency Cock
Part Number: 9520040010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.18947 |
| Comments | Electircal |
| Distance between holes | 36×36 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M6 |
| Nominal diameter | 3.0 mm |
| Port thread 1 | Quick connection 6.0 mm |
| Port thread 3 | Quick connection 6.0 mm |
| Product category | Device |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 2/2 |
| Version | Normally closed |
| Voltage | 250 V |
| GTIN | 04057875295228 |
| Size (mm x mm x mm) | 65 x 55 x 53 |
| UPC | 193133415534 |
| Weight (kg) | 0.117 |
| Weight (lb) | 0.25794 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0007605857 |
