Description
Specifications
| Fitting Position | Rear Axle |
| Outer brake drum diameter | 270 mm |
| Inner brake drum diameter | 229 mm |
| Inner brake drum height | 47 mm |
| Total brake drum height | 59 mm |
| Bolt Hole Circle Ø | 120 mm |
| Number of Holes | 5 |
| max. brake drum reboring dimension | 229.5 mm |
| Weight | 4.862 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| BMW | 34 21 1 159 486 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|
| APEC | DRM9513 |
| ATE | 24.0222-8013.1 |
| BMW | 34 21 1 159 486 |

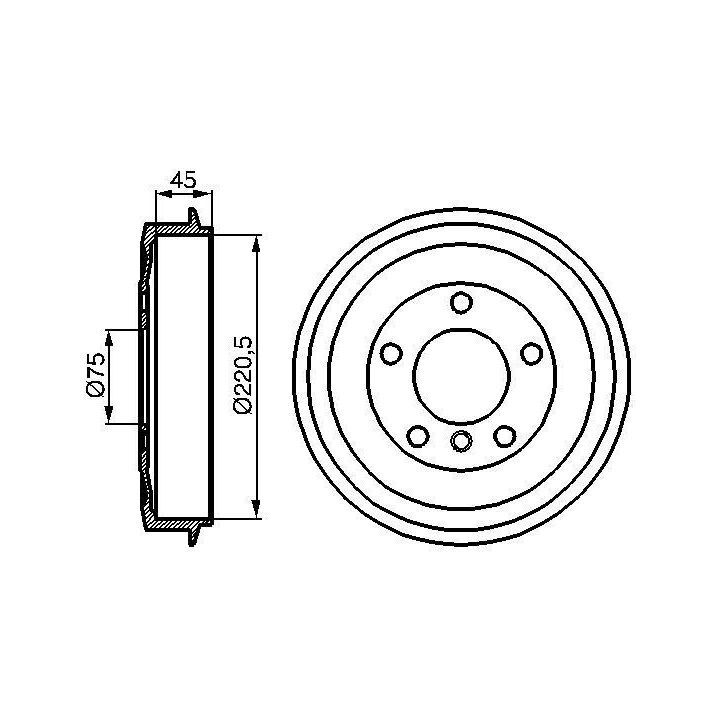

| BOSCH | 0 986 477 043 |

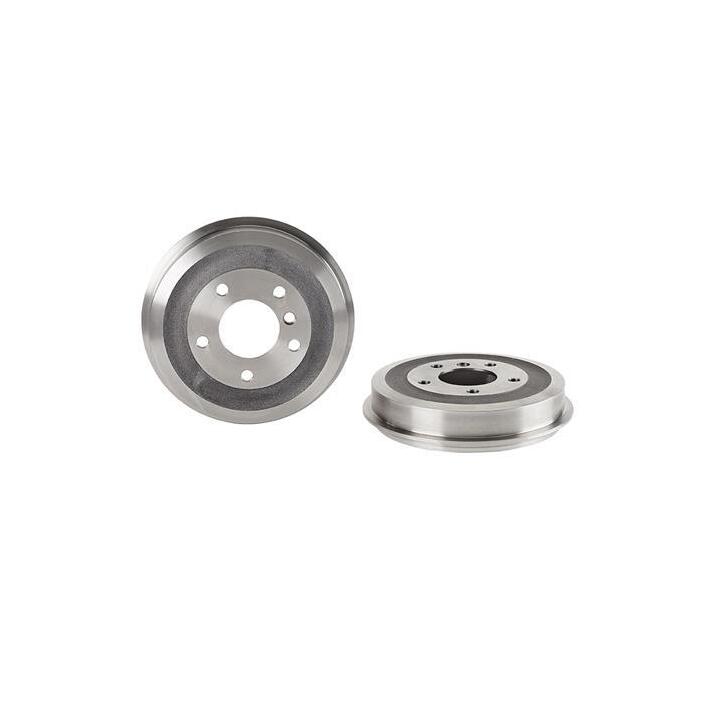

| BREMBO | 14.5810.10 |
| DELPHI | BF275 |

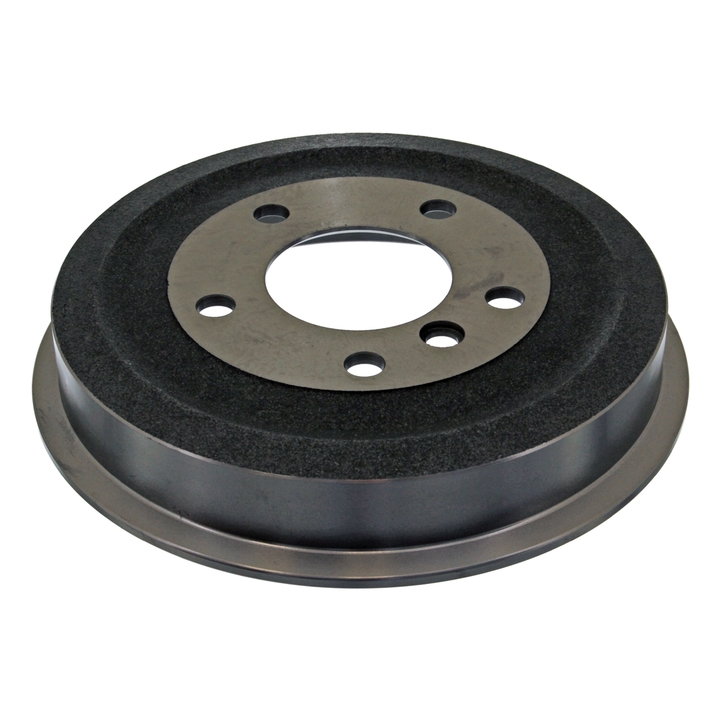

| FEBI BILSTEIN | 01724 |
| FERODO | FDR329030 |
| FTE | BT210 |
| HELLA | 8DT 355 300-021 |
| HELLA PAGID | 8DT 355 300-021 |
| JURID | 329030J, LEMFÖRDER, 13315, 13315 01 |
| LPR | 7D0012 |
| METELLI | 18-0046 |
| MEYLE | 315 523 3079 |
| NK | 251505 |
| OPTIMAL | BT-0580 |
| SWAG | 99 90 1724 |
| TEXTAR | 94012500 |
| TOPRAN | 500 978 |
| TRISCAN | 8120 11204 |

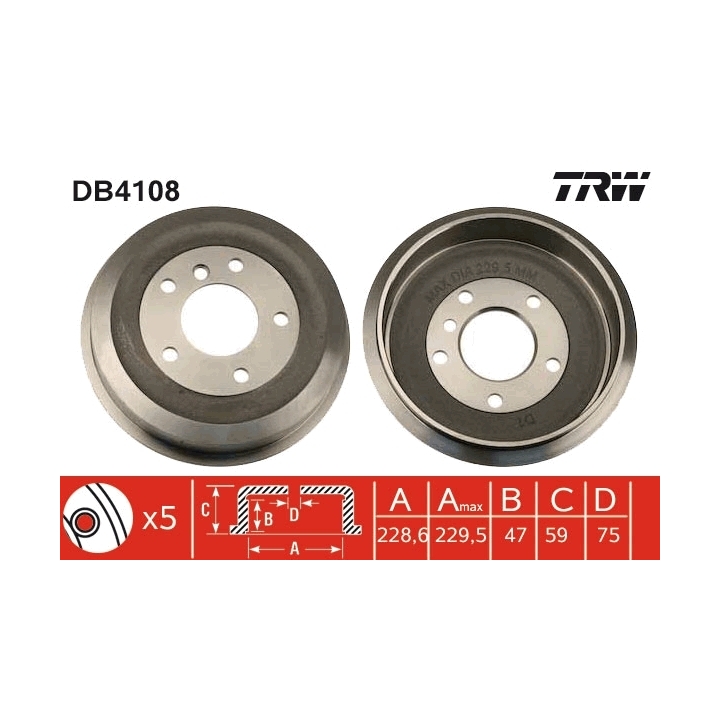

| TRW | DB4108 |
| VALEO | 237042 |
| ZIMMERMANN | 150.1704.20 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| 3 Compact (E36) 318 tds | 1995-06 – 2000-08 | 66 | 90 | 1665 | |
| 3 Compact (E36) 316 i | 1994-01 – 2000-08 | 75 | 102 | 1596 | |
| 3 Compact (E36) 316 g | 1996-02 – 2000-08 | 75 | 102 | 1596 | |
| 3 Coupe (E36) 316 i | 1993-09 – 1998-11 | 75 | 102 | 1596 | |
| 3 (E36) 316 i | 1991-03 – 1993-08 | 73 | 100 | 1596 | |
| 3 (E36) 316 i | 1993-09 – 1998-05 | 75 | 102 | 1596 | |
| 3 (E36) 318 i | 1990-09 – 1993-08 | 83 | 113 | 1796 | |
| 3 (E36) 318 i | 1993-09 – 1998-11 | 85 | 115 | 1796 | |
| 3 (E36) 318 tds | 1995-01 – 1998-02 | 66 | 90 | 1665 |
